Ozgenc Makina WS 130
back.jpeg)

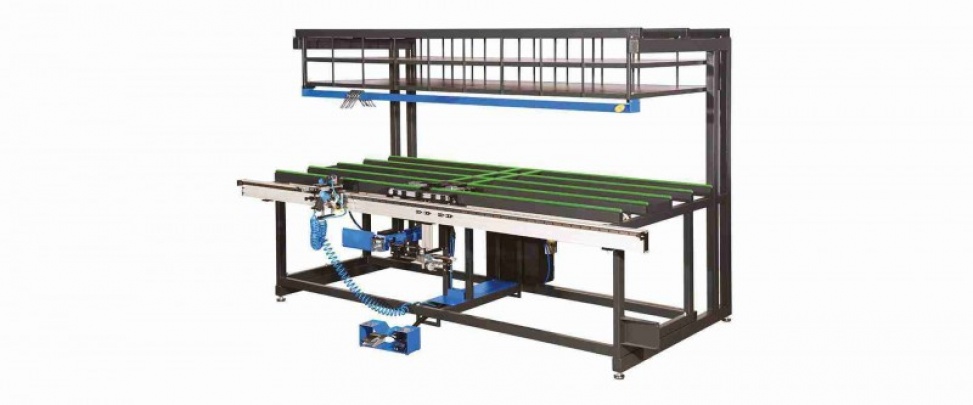

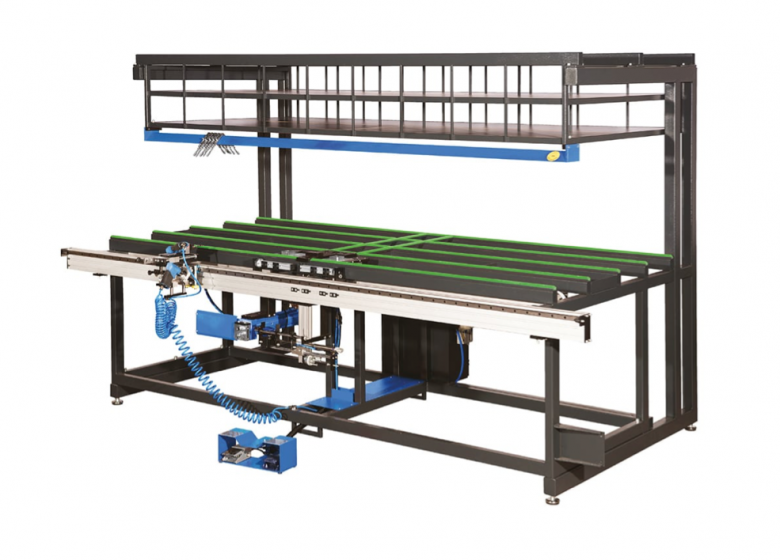

PVC Sash Hardware Mounting Table

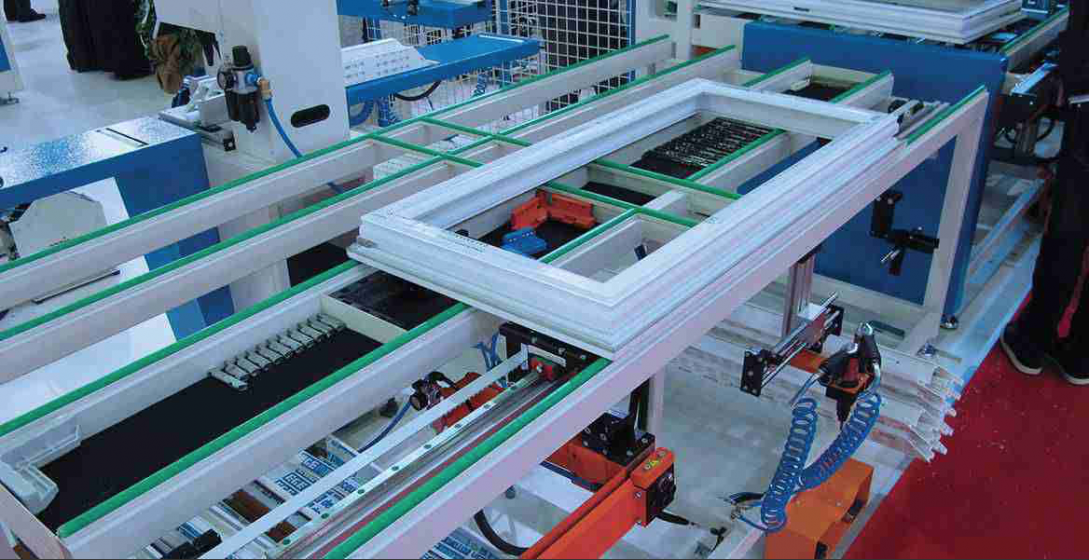

The system is designed to assemble Tilt & Turn hardware on window & door sash profiles of various sizes and types. It ensures fast, high-quality, and standard assembly.
- Centering is done automatically.
- Espagnolettes and scissors are measured automatically.

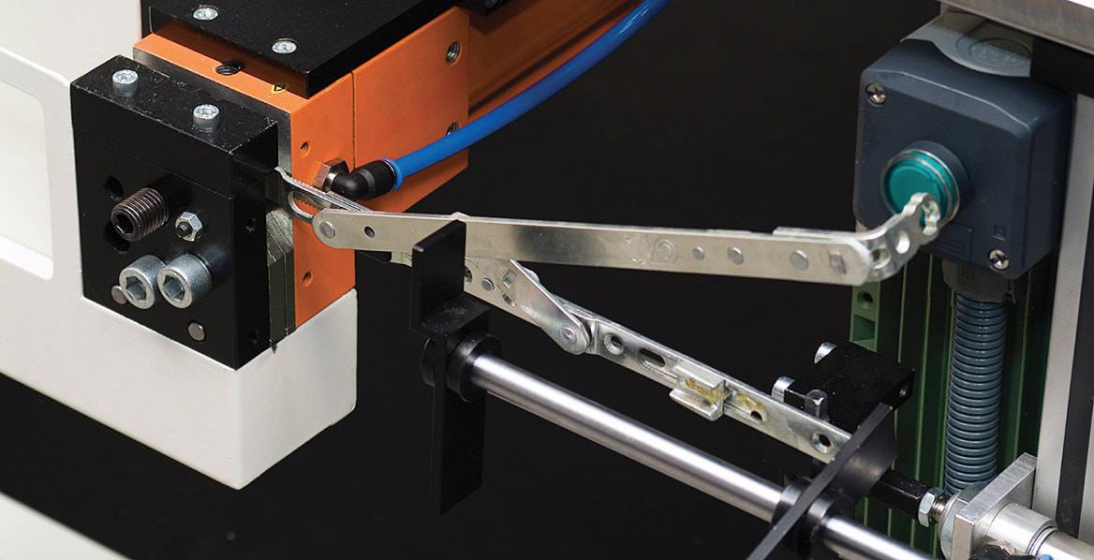

- Punch is used for cutting espagnolette and scissor stays.
- Screw tightening is done manually.
- Hinges are drilled manually using a template.
Option:
- MS – Manuel Drilling and Manual Screwdriwing Group for Hinge Fixing
- TL – Tilting-lifting table sytem
- FR-S – Hardware shelf (Lighting and Functional Corner Element Hanger)
Power
|
Electrical Values
|
380-400 V, 3 ph, 50-60 Hz
|
|
Total kW
|
3 kW
|
|
Air Consumption
|
250 lt/min
|
|
Air pressure
|
6-8 bar
|
Machine
|
Machine Height
|
2020 mm
|
|
Machine Width
|
1800 mm
|
|
Machine Length
|
3250 mm
|
|
Machine Width
|
350 Kg
|
Profile
|
Min. Profile Height
|
40 mm
|
|
Max. Profile Width
|
40 mm
|
|
Min. Screwing Range
|
400 mm
|
|
Max. Screwing Range
|
2200 mm
|
|
Screw dimensions to be used
|
Min:3,9*16 mm, Max: 4,2*38 mm
|
