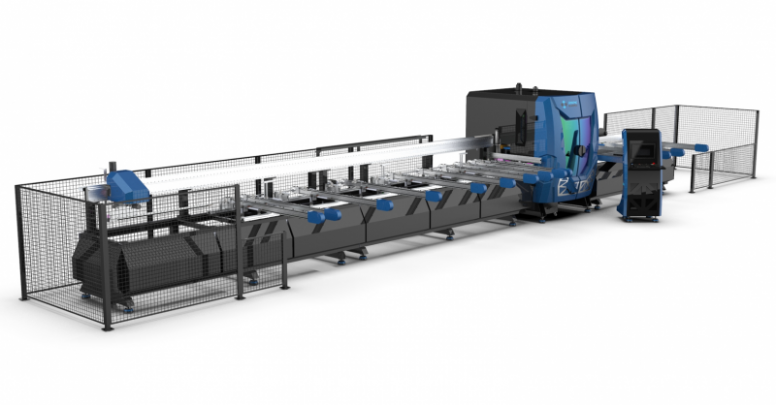

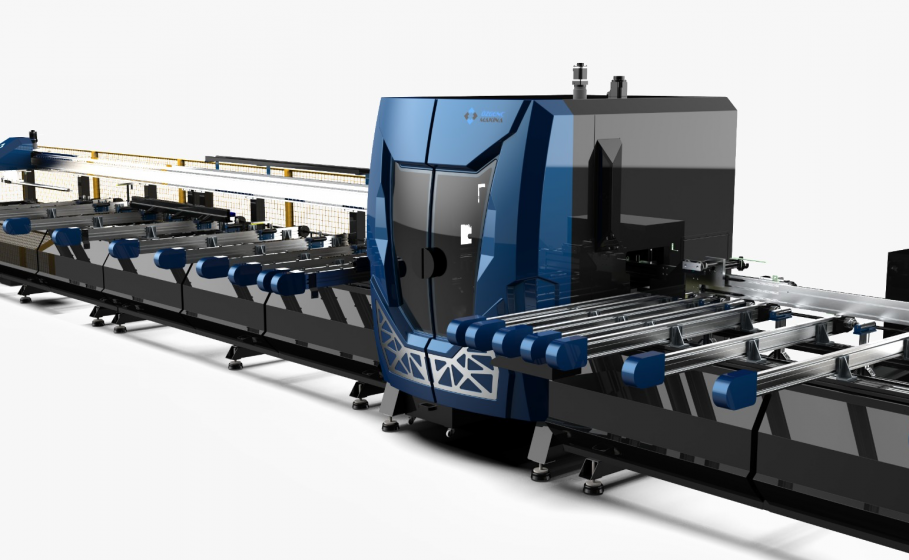

Ozgenc Makina TURBOCUT 500

PVC Profile Machining and Cutting Center

• This CNC processing center is compatible with all joinery and optimization programs, making it easy to integrate into existing workflows.
• With 3 axes control, it can perform all necessary operations on PVC profiles, including marking, opening key holes, copy routing for water slot milling, hinge holes, handle holes, and more.
• The milling unit can open cylinder slots and handle holes with a single operation, increasing efficiency and reducing processing time.
• The 3 axis profile gripper ensures secure and accurate positioning of profiles during processing.
• The automatic profile handling feature allows for easy and efficient loading and unloading of profiles.
• The automatic profile length detection feature saves time by quickly capturing the profile without the need for manual measurement.
• The profile feeding unit can accommodate profiles ranging from 500 mm to 6500 mm in length, providing flexibility for various project requirements.
• Remote desktop support is available for convenient troubleshooting and assistance from the technical support team.
• The control system is based on Windows OS and has a 21.5” screen, offering a user-friendly interface for easy operation and monitoring.

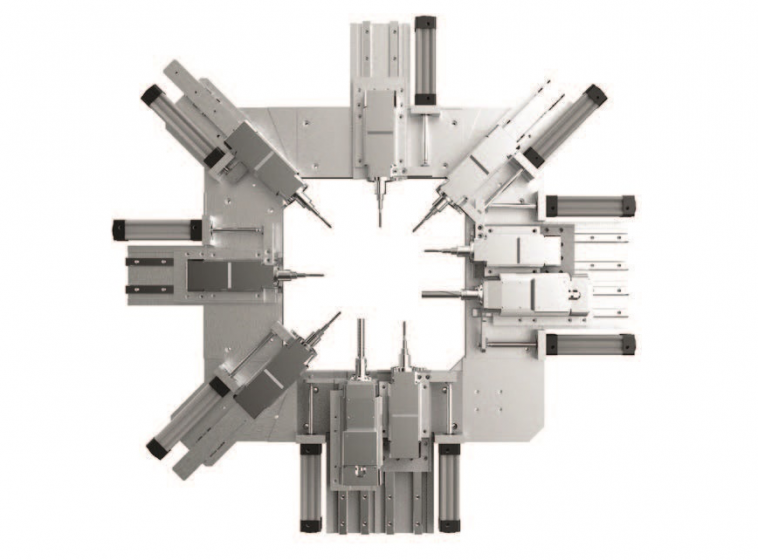

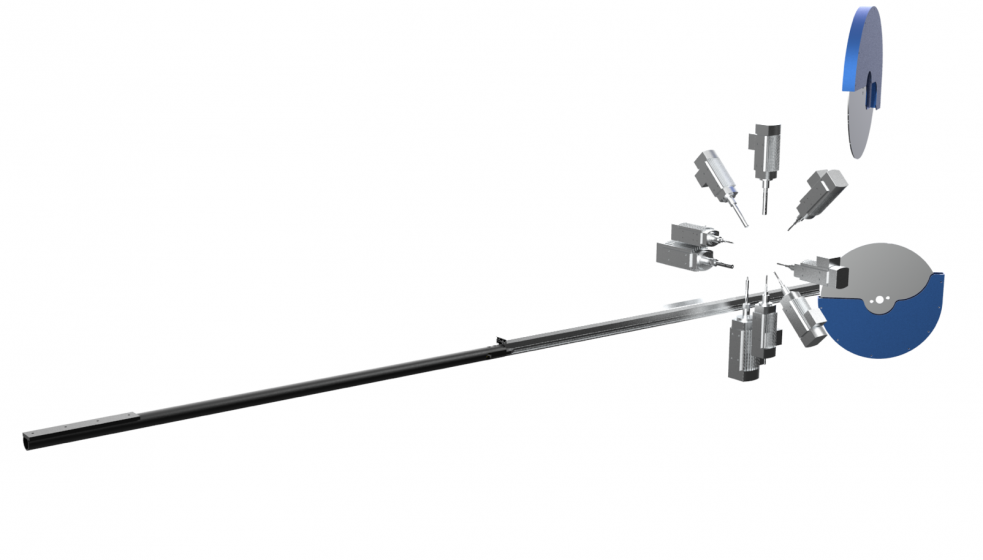

• With 9 high-speed special design spindles, this machine ensures precise and efficient processing.
• It is equipped with 2 saw blades with diameters of Ø550 mm and Ø450 mm, providing versatility for cutting angles between 35°-145° and fast cutting on 45° / 135°.
• This CNC processing center is fully compatible with the CNC screwing station SC 200, allowing for seamless integration of screwing operations into the production line.
