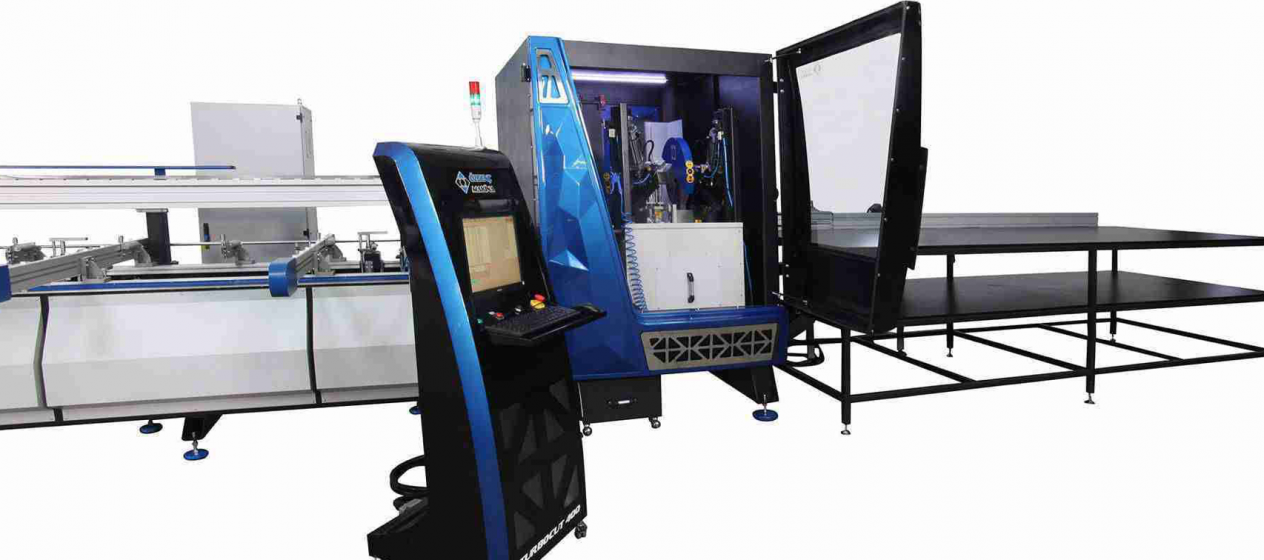

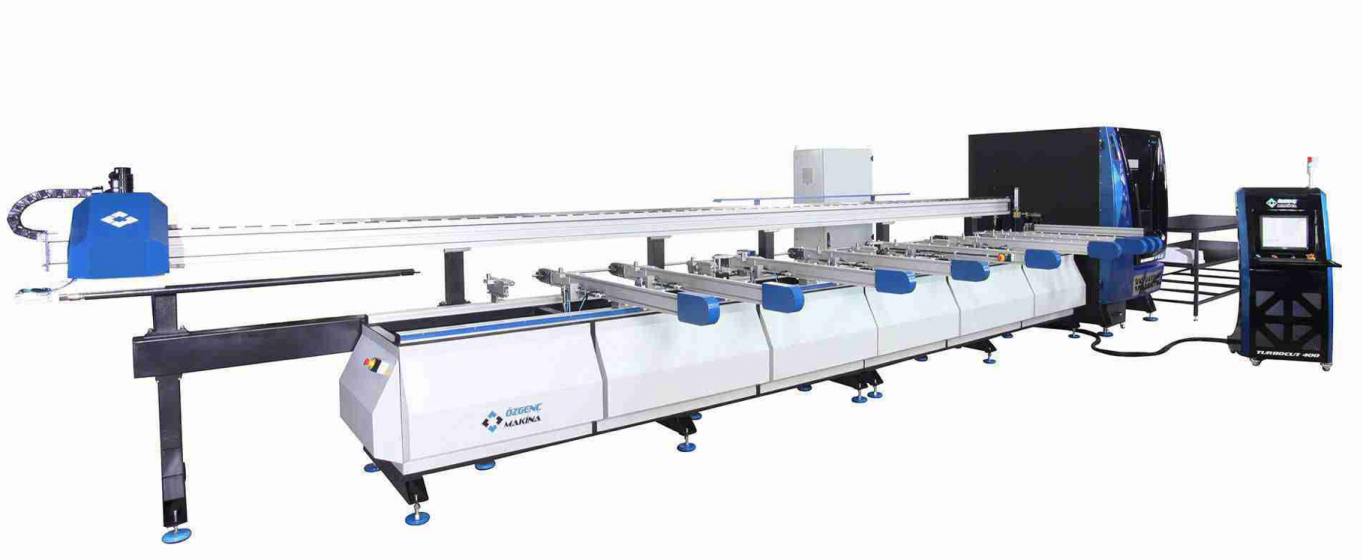

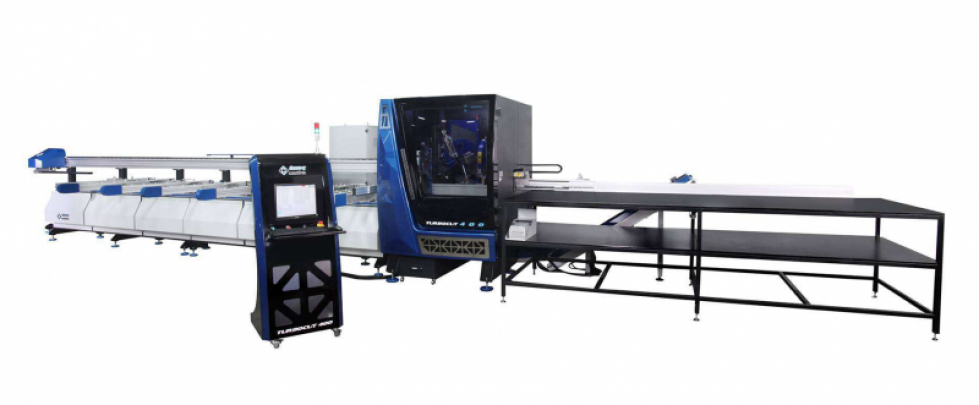

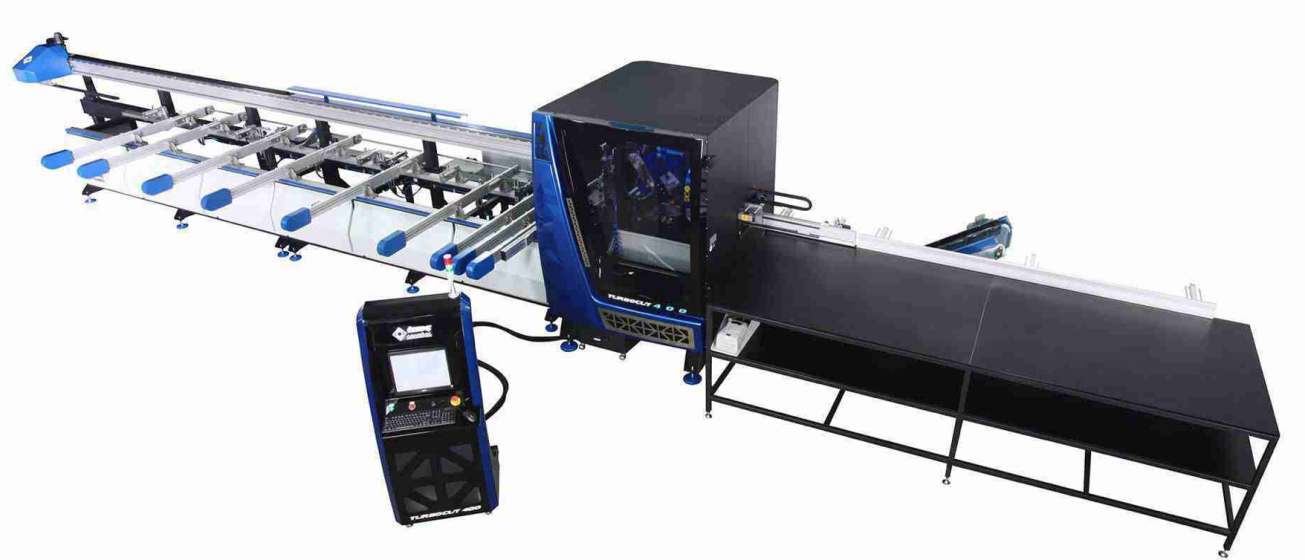

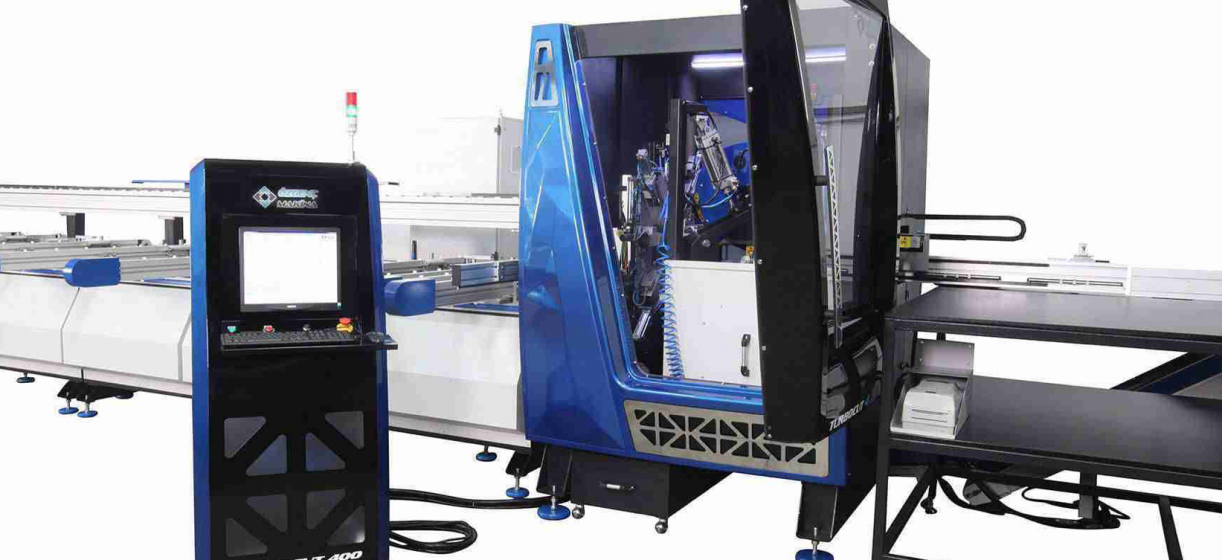

Ozgenc Makina TURBOCUT 400

PVC Profile Machining and Cutting Center

3 axis controlled CNC processing center can do all operations on four sides of PVC profiles such as cutting, marking, openingkey holes, copy routing for water slot milling, hinge holes,handle holes etc.

• Compatible with all joinery and optimization programs.
• 3-axis CNC processing center capable of performing various operations on all four sides of PVC profiles, including marking, key hole opening, copy routing for water slot milling, hinge holes, handle holes, etc.
• Milling unit can open cylinder slots and handle holes with a single operation.

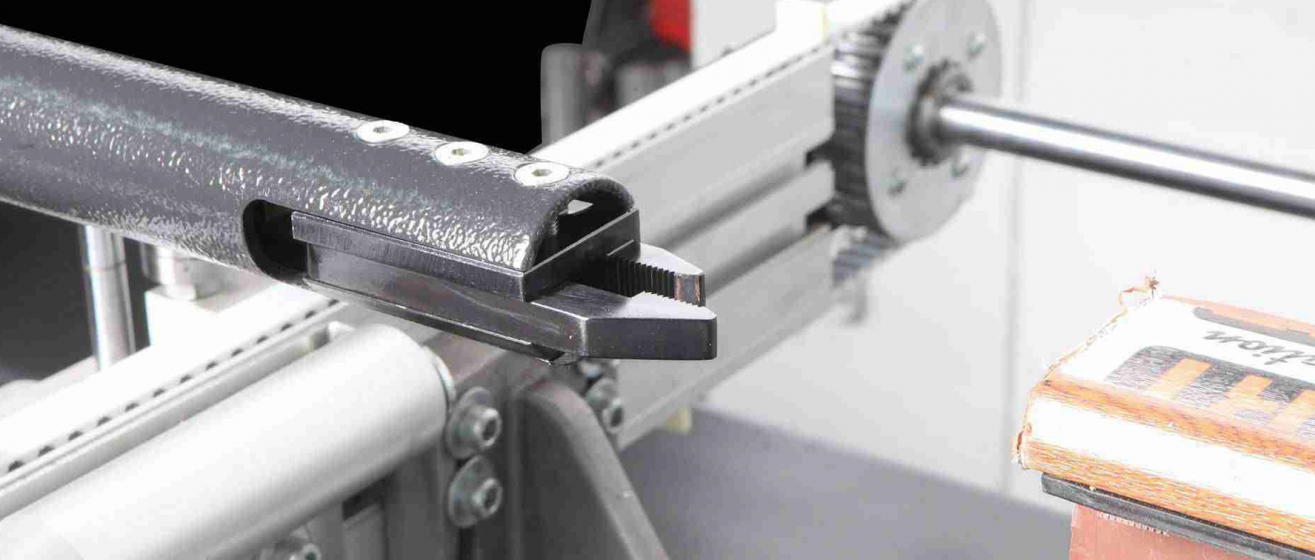

• Equipped with a 3-axis profile gripper.
• Features automatic profile handling, allowing for efficient profile capture without wasting time.
• Capable of loading profiles of lengths between 500 mm to 6500 mm to the profile feeding unit.
• Offers remote desktop support.

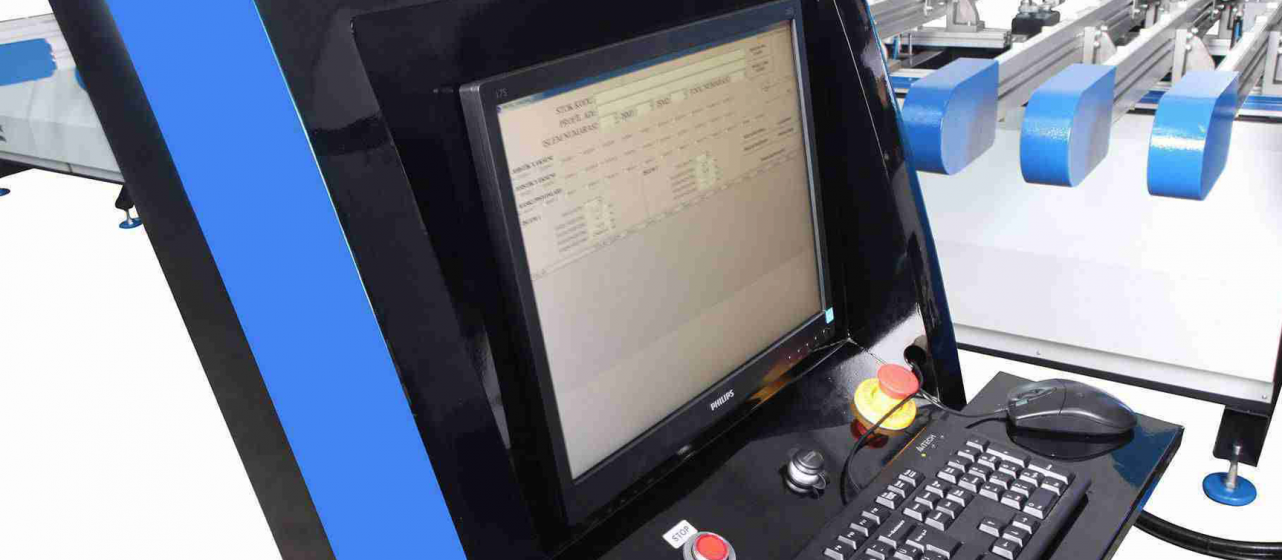

• Control system based on Windows OS with a 21.5” screen.

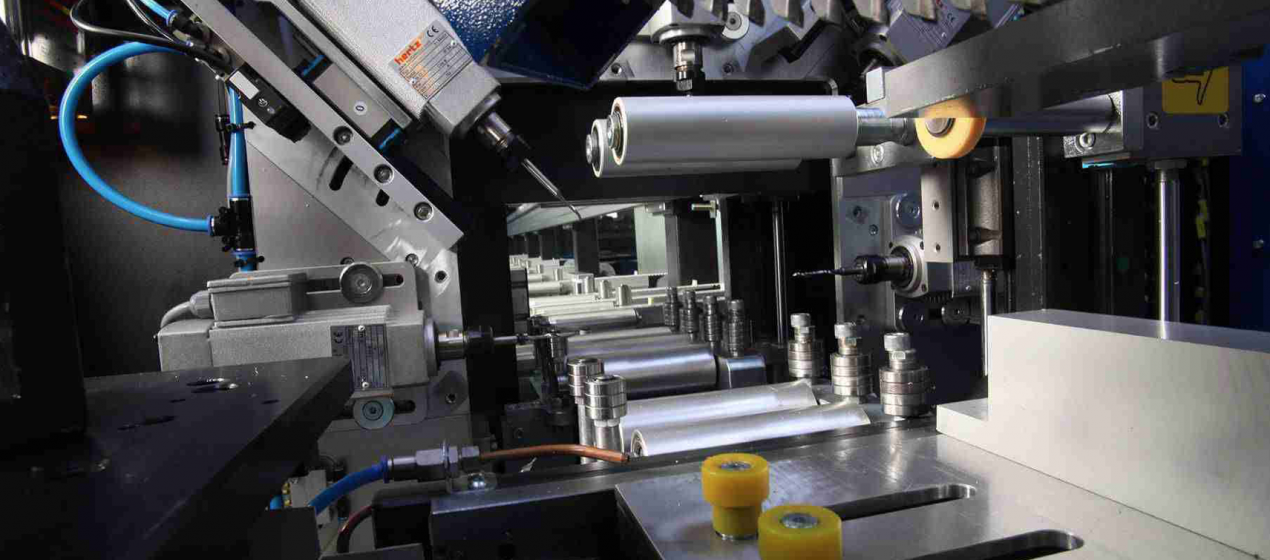

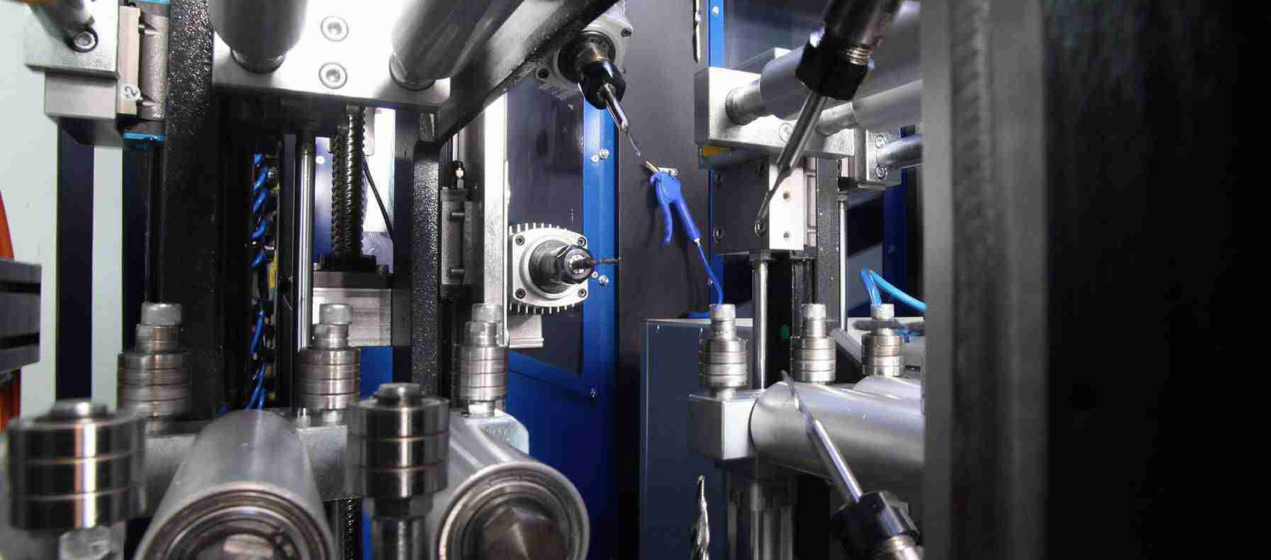

• Includes 9 high-speed, specially designed spindles.

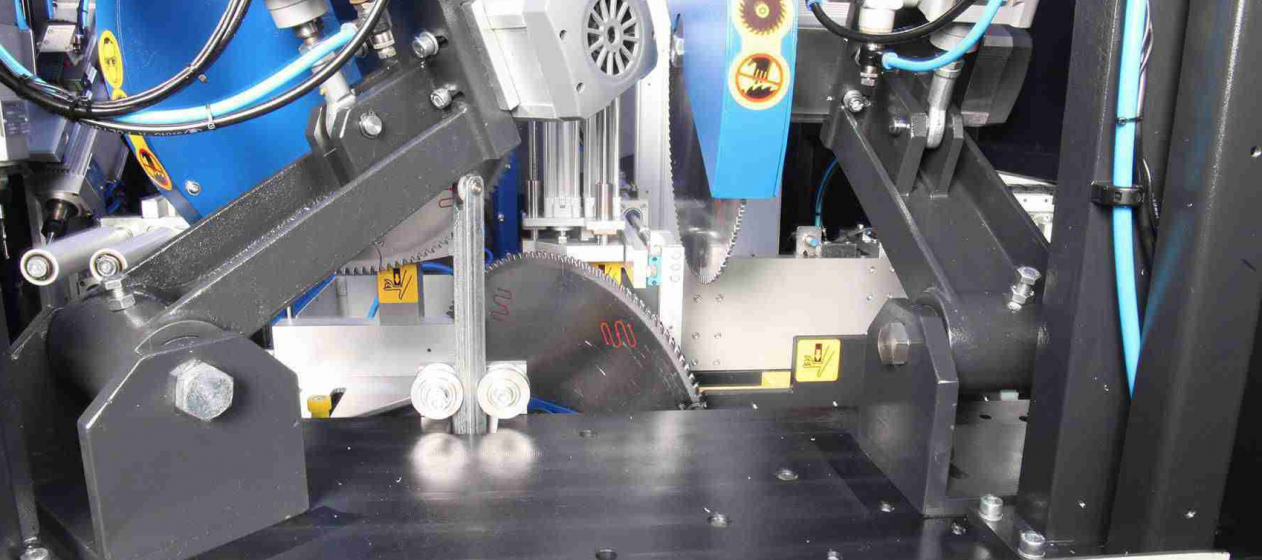

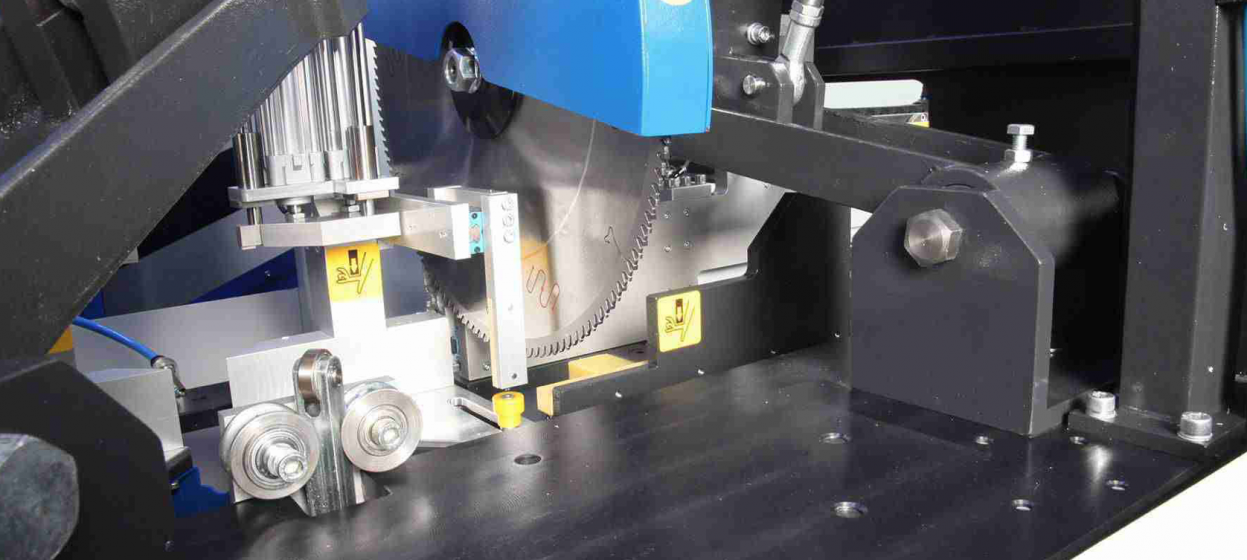

• Comes with 2 saw blades: Ø550 mm and Ø450 mm.

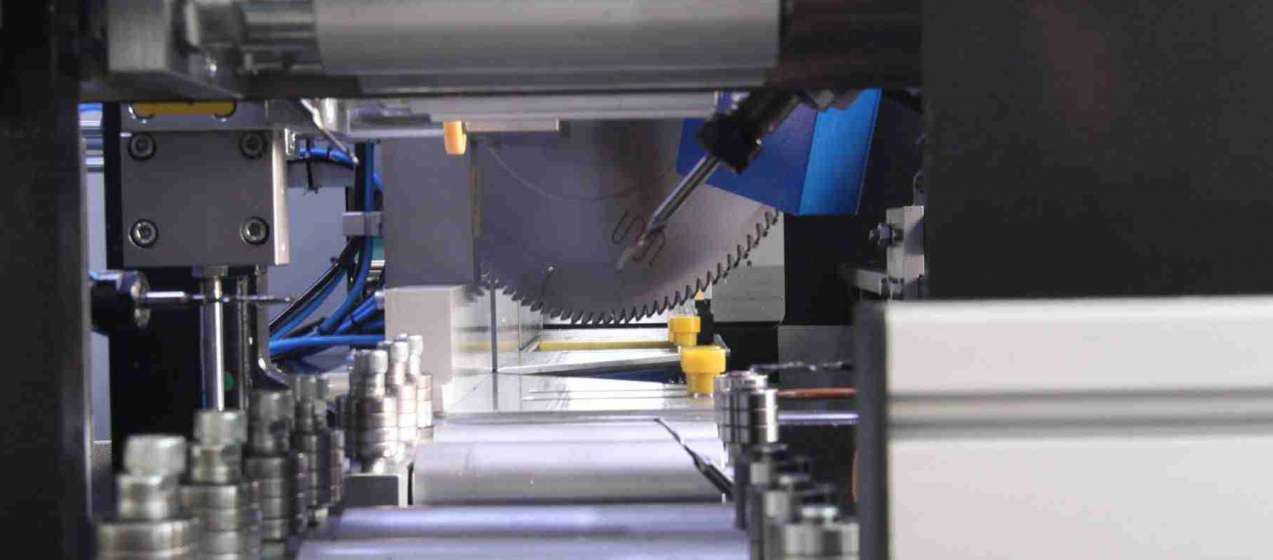

• The upper saw (Ø550 mm) can cut angles between 35°-145° using servo axis control.
• The bottom saw (Ø450 mm) is fixed at 135° for fast cutting on 45°/135° angles.
• Fully compatible with the CNC screwing station SC 200.
