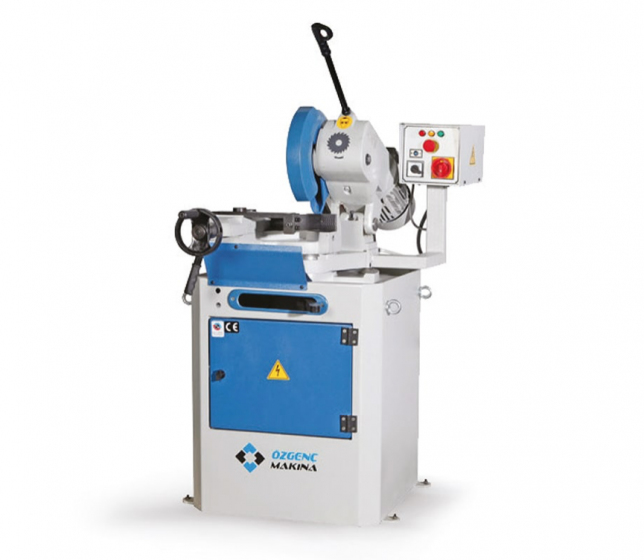

Ozgenc Makina TM 4

Reinforced Steel Profile Cutting Machine

Designed for cutting the reinforced steel profiles.

• Two different cutting cycles (rpm) for cutting various materials can be selected.
• An emergency stop button is available for immediate shutdown.
• The motor and liquid pump are protected by a motor protection circuit.
• The machine has a cooling fluid circulation system.

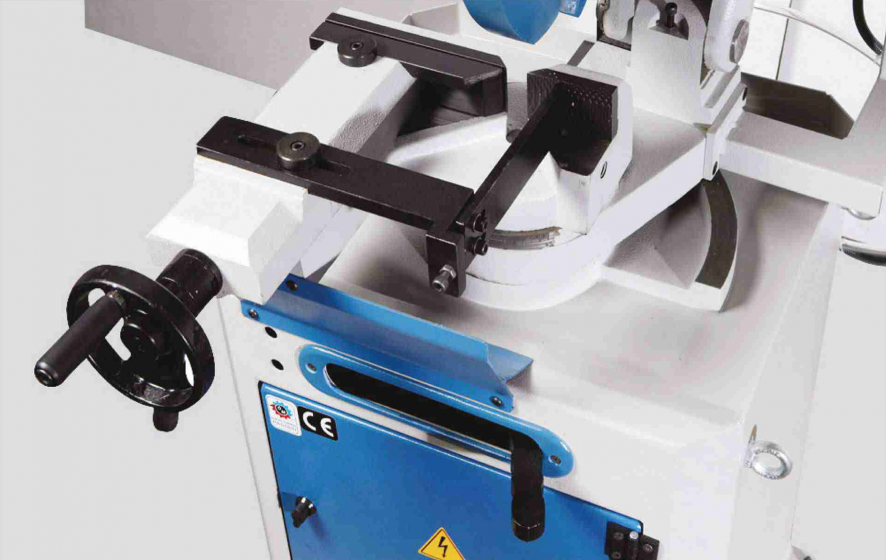

• The adjustable jaw allows for clamping the profile as close to the saw as possible.
• The saw is equipped with a moving protection cover.
• A special clamping system allows for adjusting a measurement once and continuously cutting the same length without the need for re-measuring.
• The machine can cut at a 45° angle in both directions.
• The operating arm is powered by 24V electricity for worker safety.
