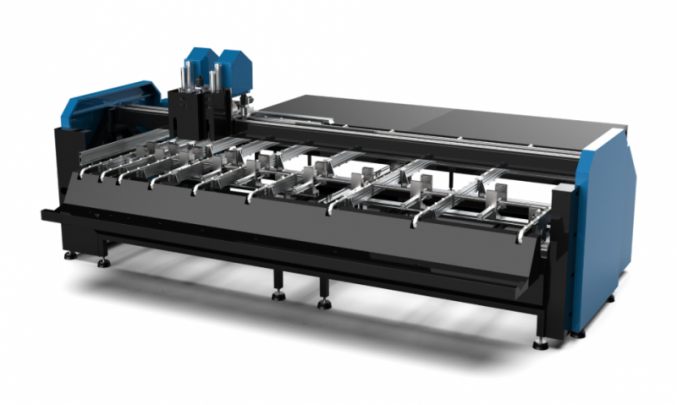

Ozgenc Makina SC 200

CNC Screwing Center

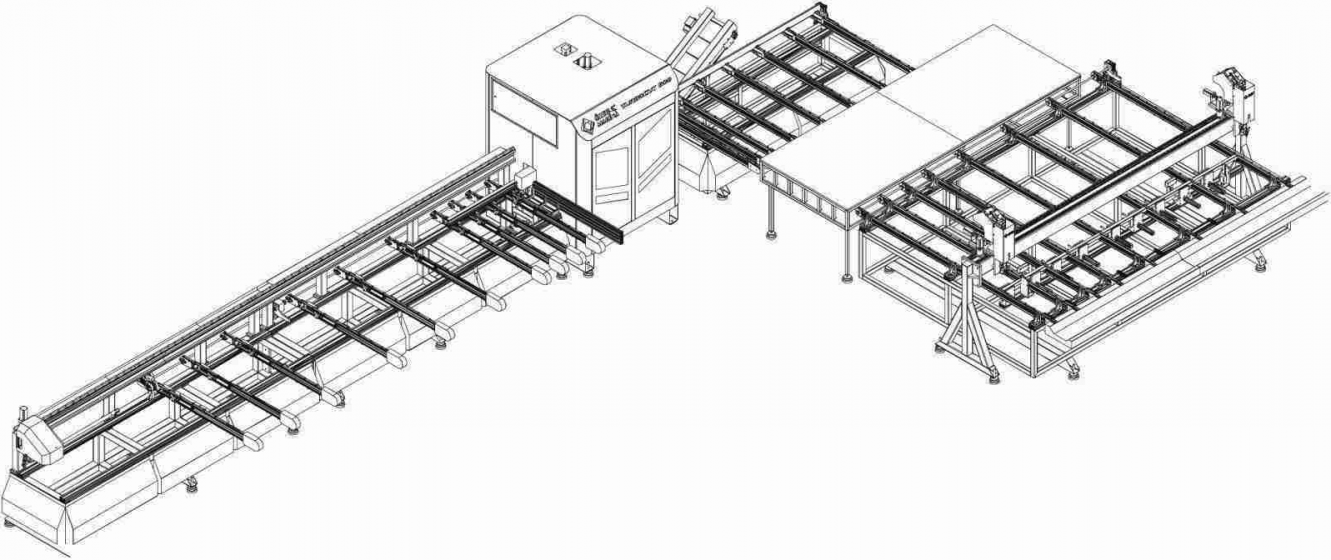

The automatic screwing station is designed to efficiently screw the steel reinforcement bar into PVC profiles that come out of the RAPIDCUT 500 and TURBOCUT 500 machines.

• It automatically screws the profiles that directly come out from the TURBOCUT 500 or RAPIDCUT 500, eliminating the need for manual screwing.
• The screwing position is automatically centered using a servo motor controller, ensuring accurate and precise screwing.

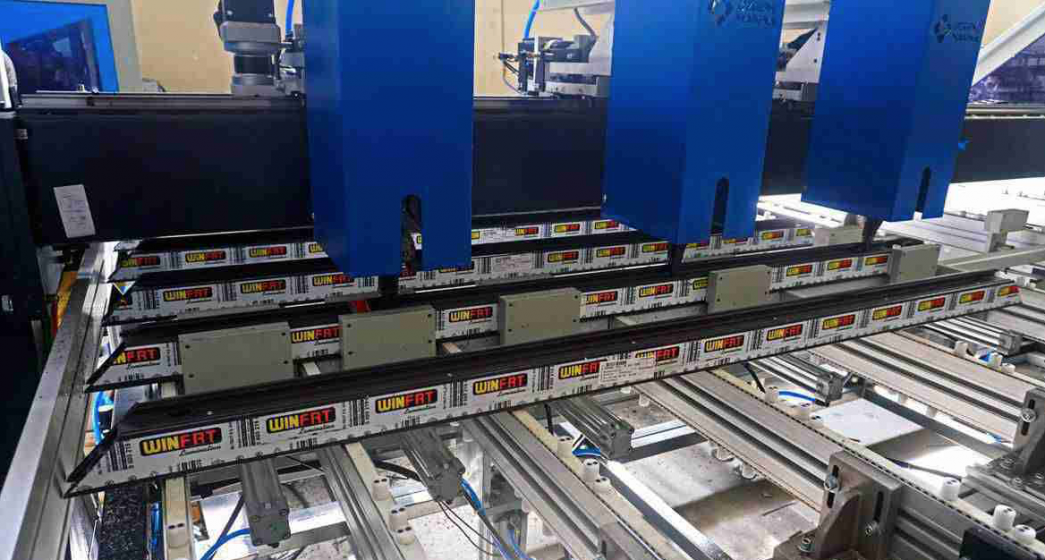

• For maximum operation speed when working with long profiles, the station offers the option of using 3 screwing heads.
• The station is ergonomically designed and constructed with durability in mind, ensuring long-lasting performance.
• It can work with profiles ranging from a minimum size of 300mm to a maximum size of 4300mm, providing versatility for various project requirements.
