Ozgenc Makina OMRMS 112
back.png)

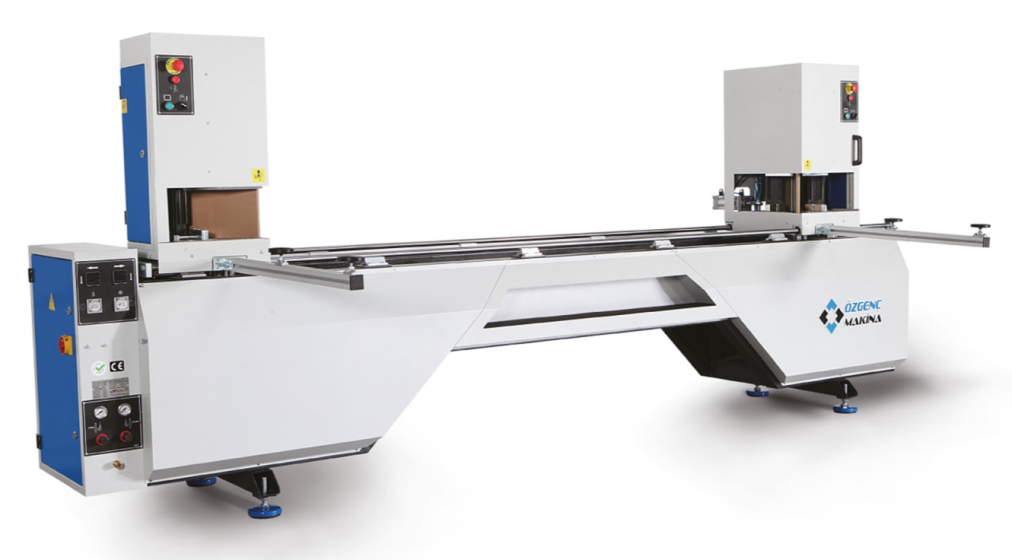

Automatic Double Corner PVC Profile Welding Machine
- Fully automatic control for seamless operation
- Simplified control panel saves time and simplifies operation

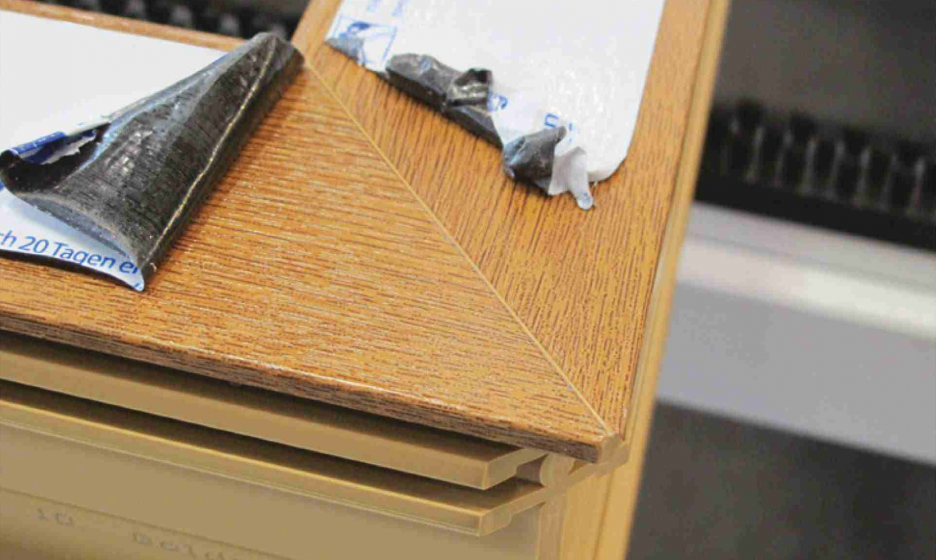

- Welding seam is highly durable and long-lasting
- Adjustable welding corner on left head from 30 ° to 180 ° degrees

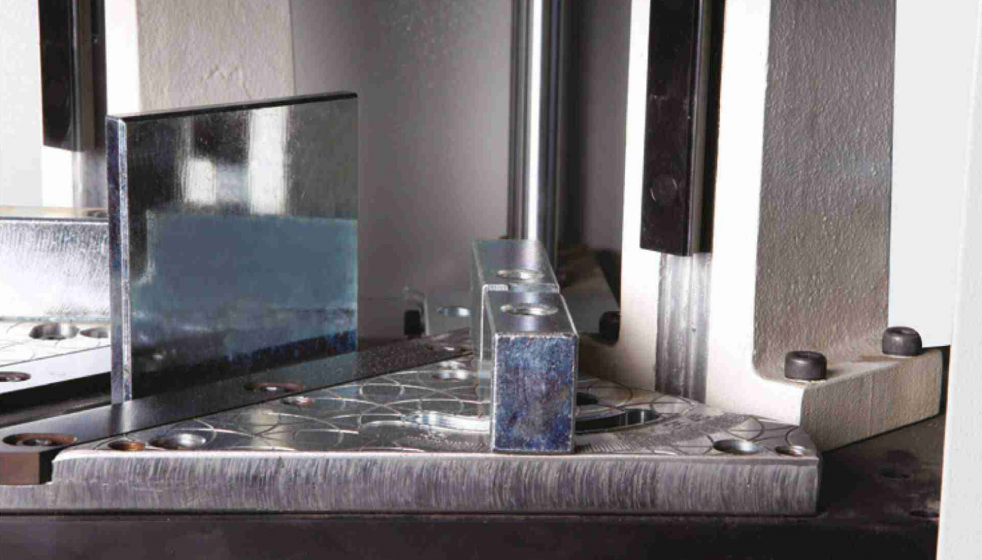

- Special blades for precise limitation welding seal (from 2 mm. to 0.2 mm. thickness)
- Maximum profile size of 3500 mm and minimum size of 400 mm for versatility

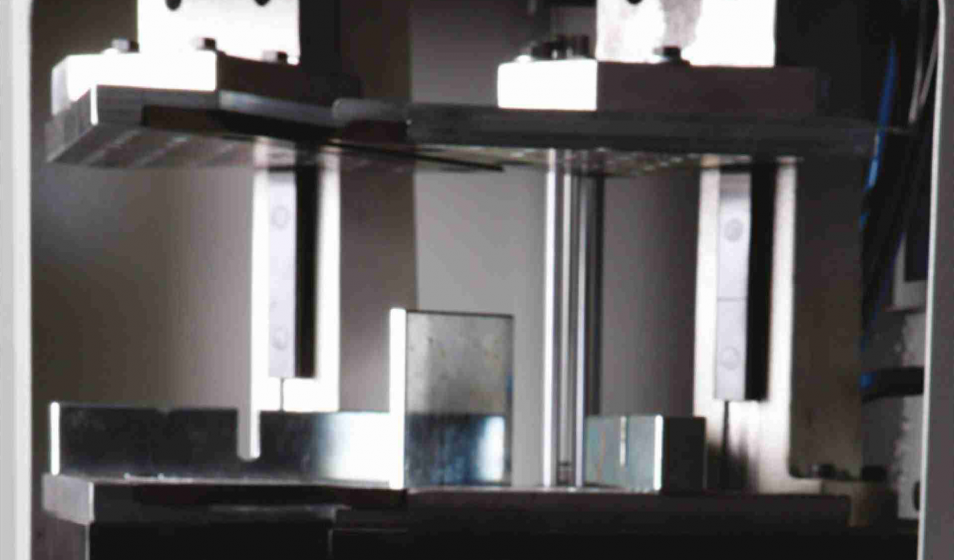

- Quick-detachable mold system saves time during replacement
- PLC controller by PANASONIC (Japan) for reliable performance
- Thermostatic control of heating element ensures optimal temperature control
- Display shows output of heating element temperature for easy monitoring
- Adjustable supporting arms for profiles for added flexibility
- Heating temperature, welding time, and pressure can be adjusted for different profile types
- Precision linear guiding system used in profile pressing system for accuracy and stability
- Comprehensive safety measures implemented, both mechanical and electrical
- Power supply protects the system from voltage overload, ensuring safe operation.
Power
|
Power Supply
|
380-400 V, 3 ph, 50-60 Hz
|
|
Motor kW
|
4,5 Kw, 16A
|
|
Air Consumption
|
70 lt/min
|
|
Air pressure
|
6-8 bar
|
Machine
|
Machine Height
|
1700 mm
|
|
Machine Length
|
4150 mm
|
|
Machine Width
|
1350 mm
|
|
Machine Weight
|
620 Kg
|
Profile
|
Min. Boostable Profile Height
|
40 mm (180deg), 40 mm (90deg), 40 mm (45deg)
|
|
Max. Boostable Profile Height
|
160 mm (180deg), 160 mm (90deg), 160 mm (45deg)
|
|
Max. Boostable Profile Width
|
130 mm (180deg), 130 mm (90deg), 93 mm (45deg)
|
|
Boostable Frame Min Width and Length
|
400*400 mm
|
|
Boostable Frame Max Width and Length
|
3100
|
|
Work Angle Range
|
180deg
|
FRAME MEASUREMENTS
|
Max. Frame Length
|
3250 mm
|
|
Min. Frame Length
|
400 mm
|
|
Max. Profile Height
|
175 mm
|
|
Min. Profile Height
|
30 mm
|
