Ozgenc Makina OMRM 122
back.png)

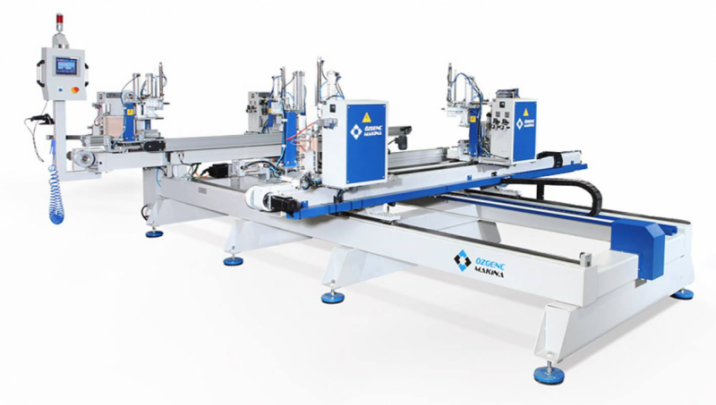

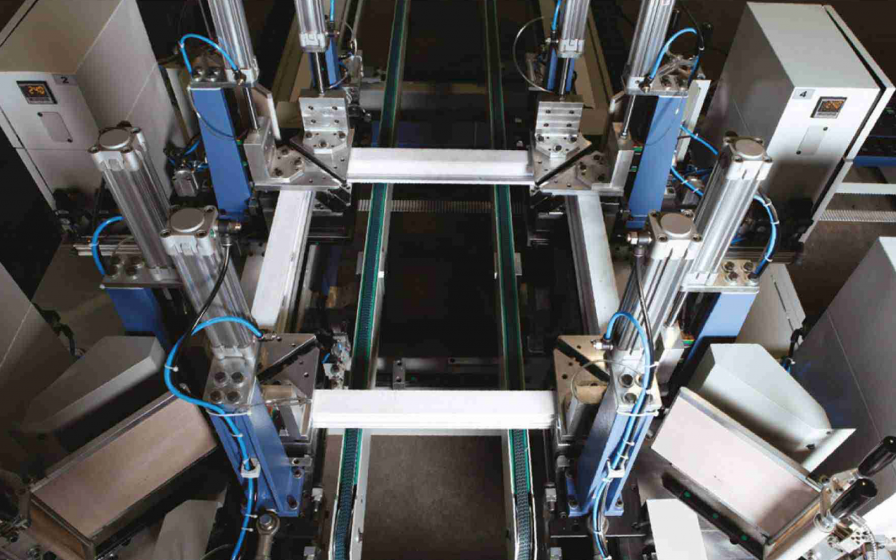

Automatic Four Corner PVC Profile Welding Machine
Designed for welding corners of PVC profiles.
- Resistance Teflon wrapping system ensures smooth and reliable operation
- Central lubrication system for easy maintenance
- Barcode scanner system eliminates manual size entering, saving time and reducing errors
- Shift processing capacity of 240-250 frames in 8 hours for high productivity
- User-friendly interface with a 10.4" touch screen panel and CNC control system (3 axes)
- Versatile tool for cutting and welding PVC profiles

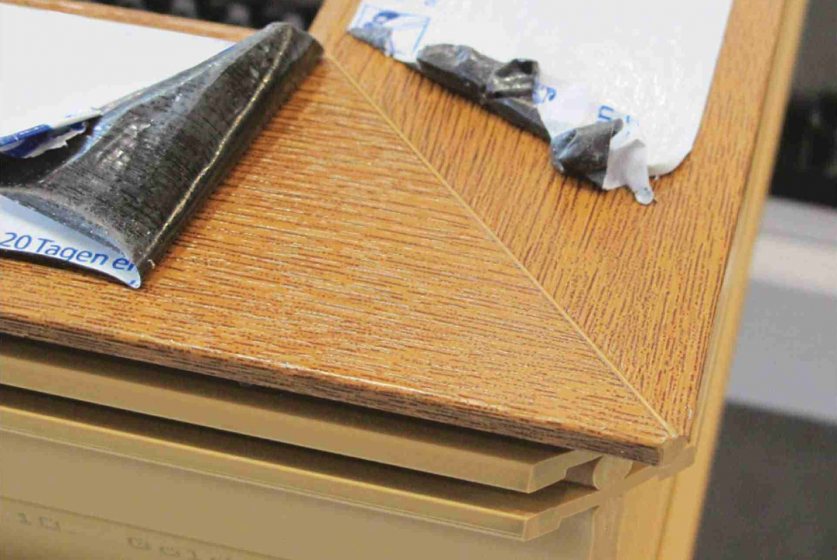

- Offers 0.2mm welding for all profile types, ensuring high-quality welds

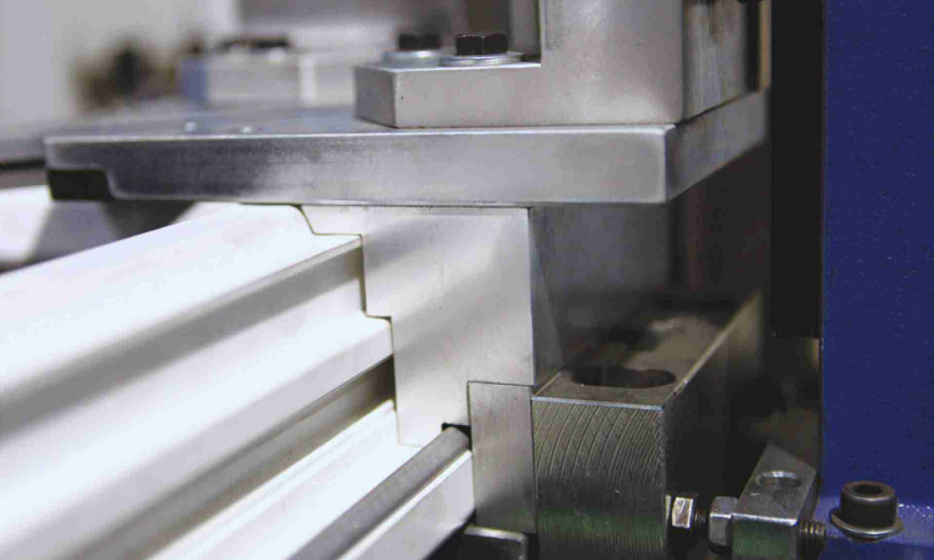

- Automatic mold opening system makes welding seams thinner at the separating point for enhanced finish
- Safety measures include barcode system for accurate welding positions
- Practical design with easy change mold system for quick and convenient mold changes.
Power
|
Power Supply
|
380-400 V, 3 ph, 50-60 Hz
|
|
Motor kW
|
10 kW, 30A
|
|
Air Consumption
|
200-250 lt/min
|
|
Air pressure
|
6-8 bar
|
Machine
|
Machine Height
|
1900 mm
|
|
Machine Length
|
6300 mm
|
|
Machine Width
|
5150 mm
|
|
Machine Weight
|
2200 Kg
|
Profile
|
Max. Boostable Profile Height
|
180 mm
|
|
Min. Boostable Profile Height
|
38 mm
|
|
Boostable Frame Min Width and Length
|
420*390 mm 520*520 mm (Gasket Printed)
|
|
Boostable Frame Max Width and Length
|
3650*2650 mm 3650*2650 mm (Gasket Printed)
|
|
Work Angle Range
|
90 deg
|
