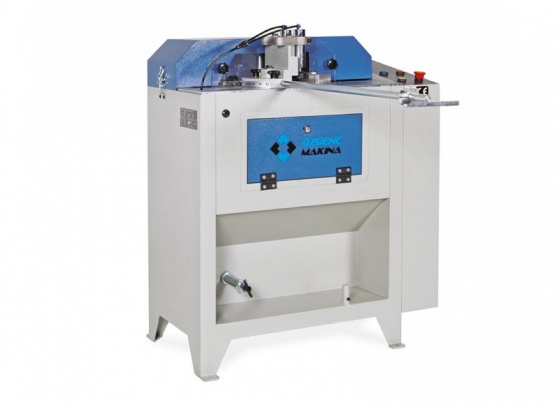

Ozgenc Makina OMRM 121

Automatic End Milling Machine for Aluminium Profiles

Designed for end milling of PVC and aluminium profiles.

• Cutting range of +45° to -45° and all intermediate angles.
• Automatic operation cycle for efficient milling.
• Easy adjustment of cutting speed using the control panel regulator.
• Secure positioning of profiles with the vertical pneumatic clamping kit.
• Quick blade change system allows for fast milling cutter group replacement when changing profile systems.
• 4-position rotating star-type stop for easy and rapid adjustment.
• Adjustable reference shoulders from -45° to +45° degrees, including all intermediate angles.
• Additional profile fixing with a side stop.
• Stop plate with a special channel for optimal profile fixing.
• Strong engine bearing axle for durability.
• Special storage section for convenient storage of milling cutter holders.
• Profile supporting arm for added stability.
• Includes 2 cutter holders for versatile milling options.

Option:

• Optional hydropneumatic and cooling systems available for cutting aluminum profiles.
