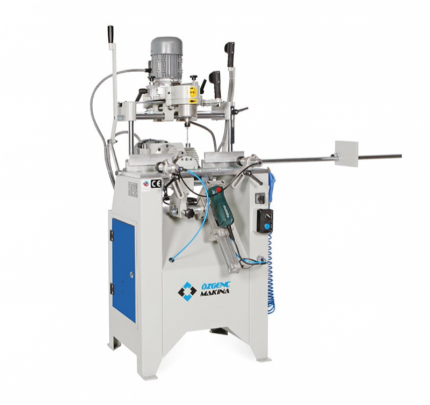

Ozgenc Makina OMRM 118

Copy Router with Triple & Water Slot Drilling for PVC Profiles

The machine is designed for copy milling, handle hole triple drilling, and water slot drilling operations on PVC profiles.

• It features three independent routing units: one horizontal, one vertical, and one inclined unit that can be tilted up to 60 degrees.

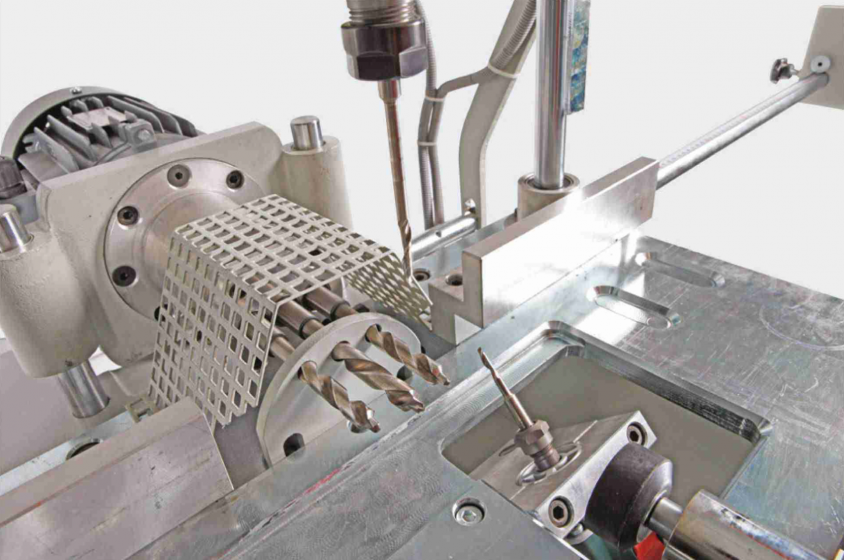

• The horizontal unit allows for drilling three holes with fixed spacing.
• The vertical unit is used for copy routing with the copying template.
• The inclined unit is used for automatic cutting slots for condensation or water drainage.
• The movement of the units is smooth and stable, thanks to recirculating ball bearings.
• Shock-absorbers ensure smooth movement of the units.
• The machine has a 1:1 scale for copy-milling operations.
• It includes independent horizontal and vertical pneumatic clamping kits.
• The vertical clamping kit is adjustable.
• The operation depth can be adjusted.
• A side length stop is provided for precise measurements.
