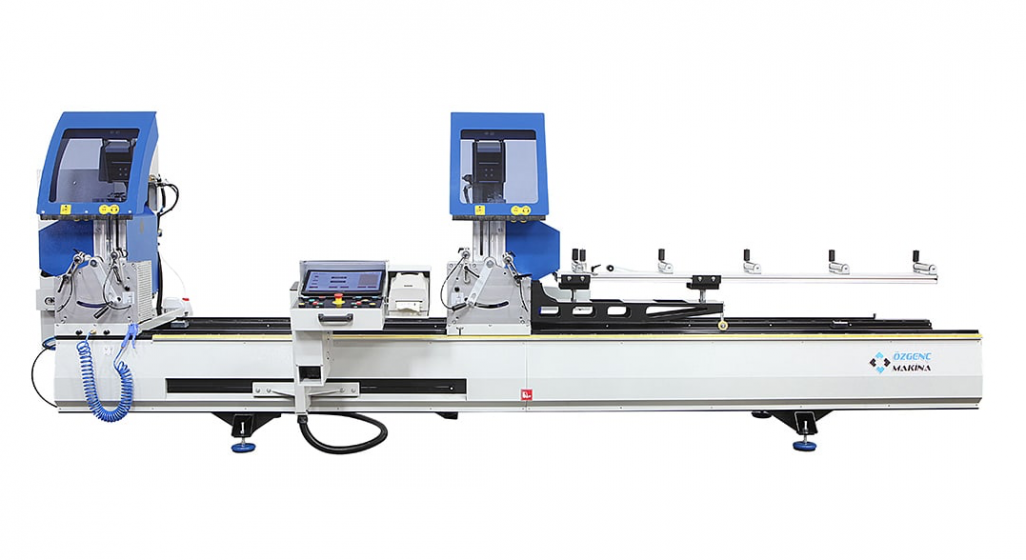

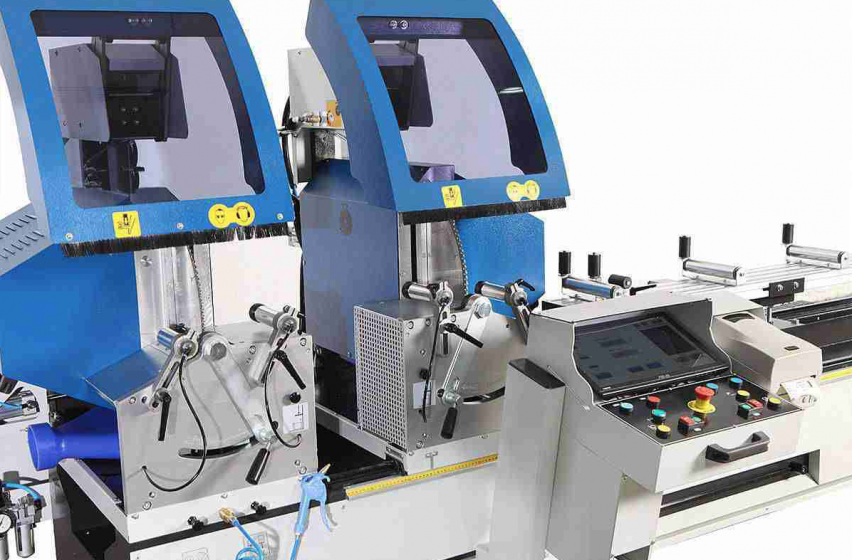

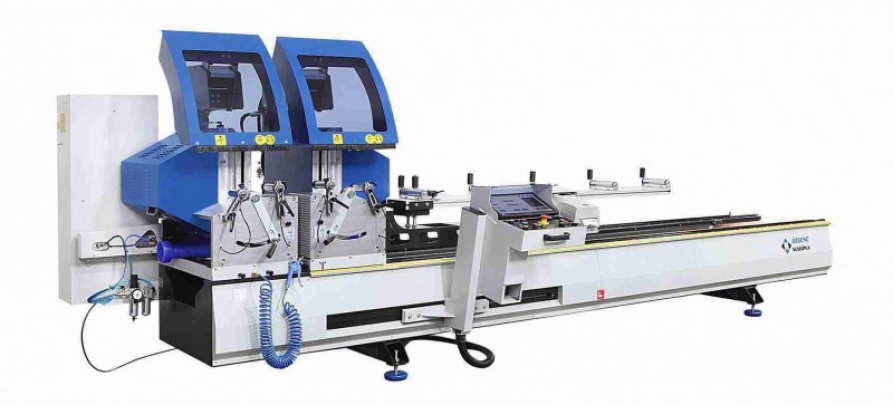

Ozgenc Makina OMRM 113

Automatic Double Head PVC Profile Cutting Machine

Designed for efficient cutting of PVC and aluminum profiles.

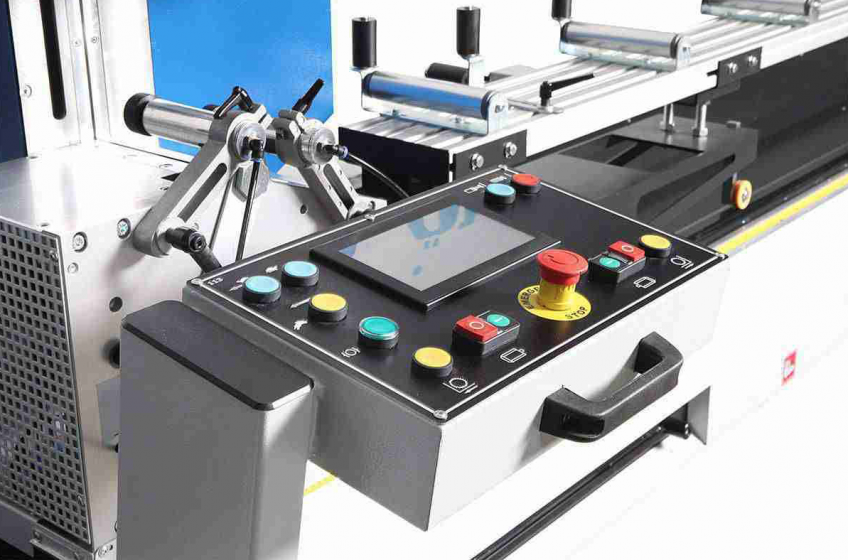

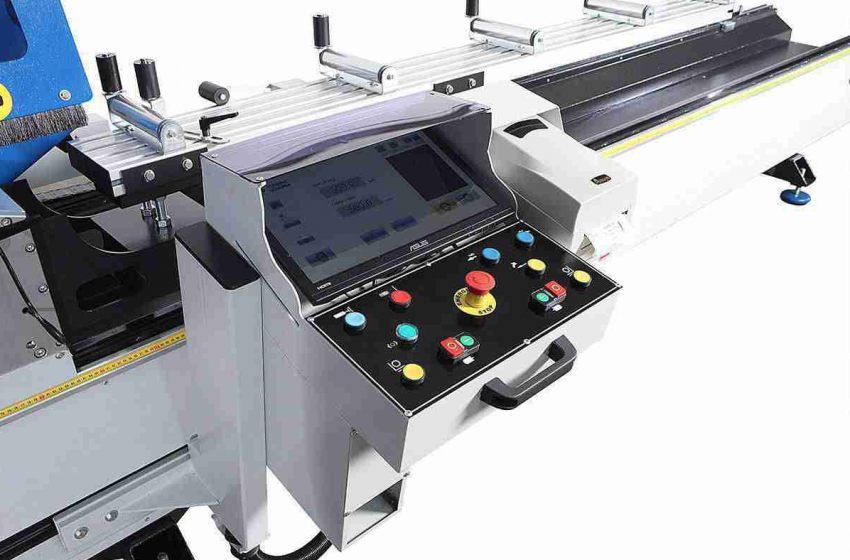

• Easily enter cutting length size and angle degree from the LCD display on the control panel.
• Automatic head positioning for 45° and 90° degrees, with easy adjustment for intermediate angles.
• Memory capacity of 2299 steps, including quantity, length, and angles of cutting.
• Manual length size adjustment option available.
• Magnetic rule length control system.
• PLC control system with multilanguage support.
• Repetitive cut program for variable and fixed angle cuts, as well as fixed length cuts.
• Extra length cut program for profiles over 4 meters.

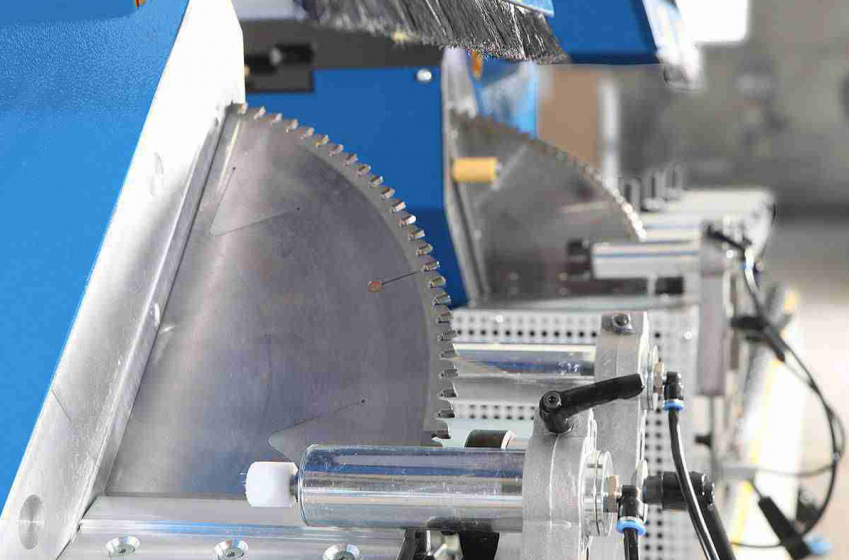

• Equipped with a 500mm diamond saw blade.
• Output of the disk is 170mm, allowing for double profile cutting (85mm x 2).

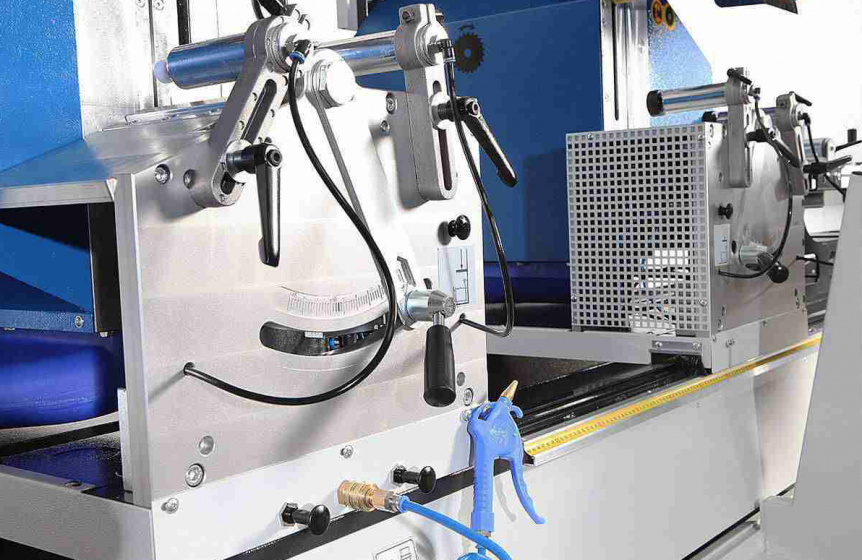

• Features a horizontal pneumatic clamping kit.
• Adjustable cutting speed for optimal performance.
• Can operate with a single head if needed.
• Includes an industrial dust exhaust system.
• Conveyor for the movable head for easy handling.
• Intermediate profile support for cutting longer profiles.
• Extensive safety measures, both mechanical and electrical, have been implemented.
• Power supply protects the system from voltage overload.
• Utilizes a servo motor for precise movement.
• Head movement on linear rails.

Options:

• Transom arrow cutting option available.
• Cooling system for aluminum profile cutting and vertical clamping.

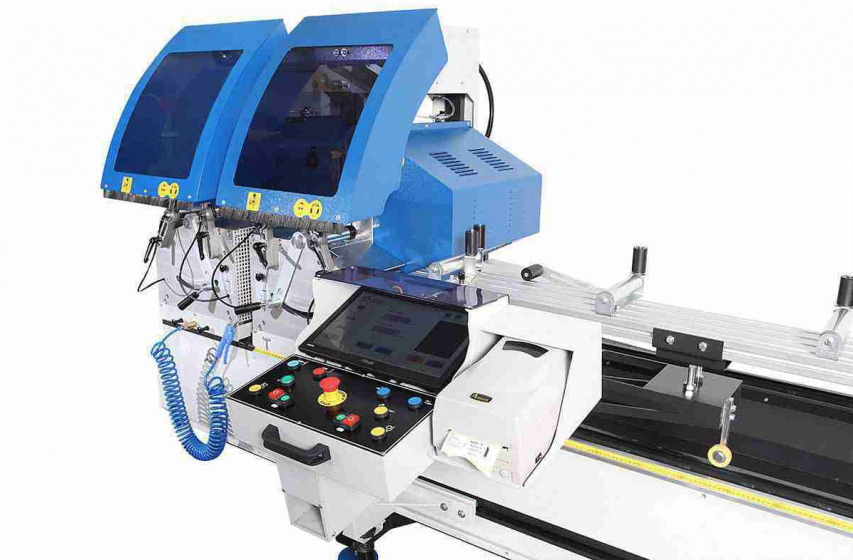

• CO - Cutting Optimization: Allows data transfer from PC via Ethernet and includes a label printer.
