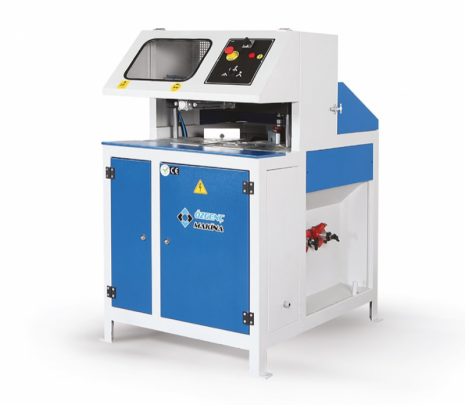

Ozgenc Makina OMR 114

Automatic PVC Profile Corner Cleaning Machine ( Easy Blade Changing )

Designed to clean the corners of PVC profiles from welding seals.

• Blade changing can be done easily in 10-15 seconds.
• The machine automatically starts when a profile is inserted.
• Cutting devices remove welding seals on the upper and lower sides, while a milling cutter removes the external angle.

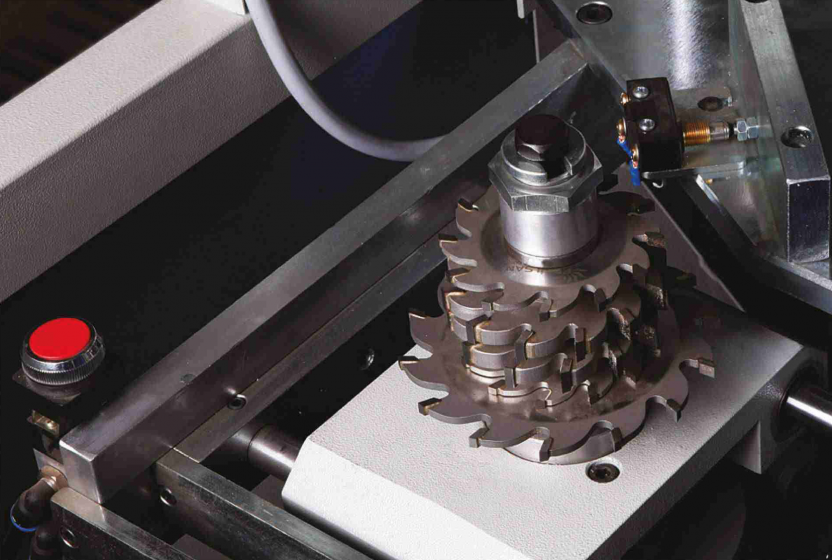

• A pneumatic rapid blade change system allows for quick replacement of milling cutter groups when changing profile systems.

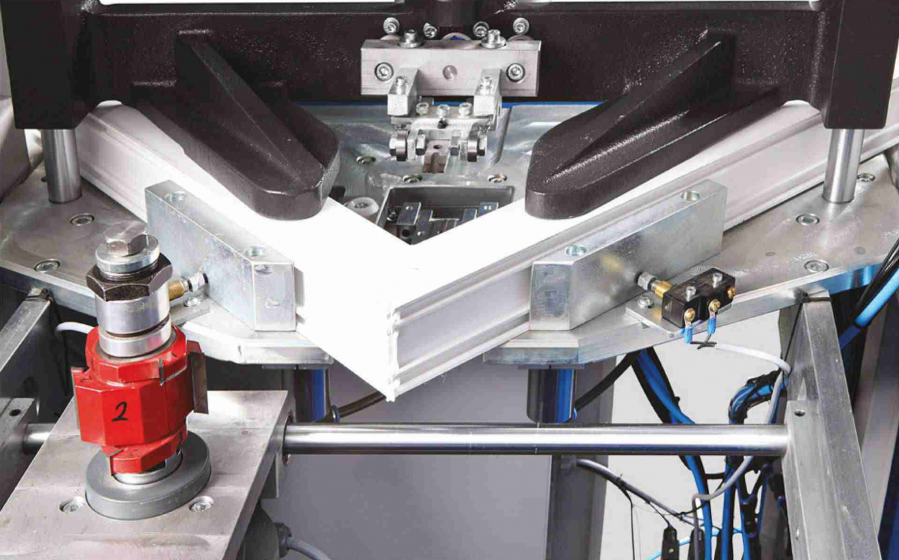

• The machine has an automatic device for balanced frame positioning.
• Operation speed and depth of cleaning for cutting devices and milling cutters are adjustable.
• The special shape of the working plate allows for processing small frames.

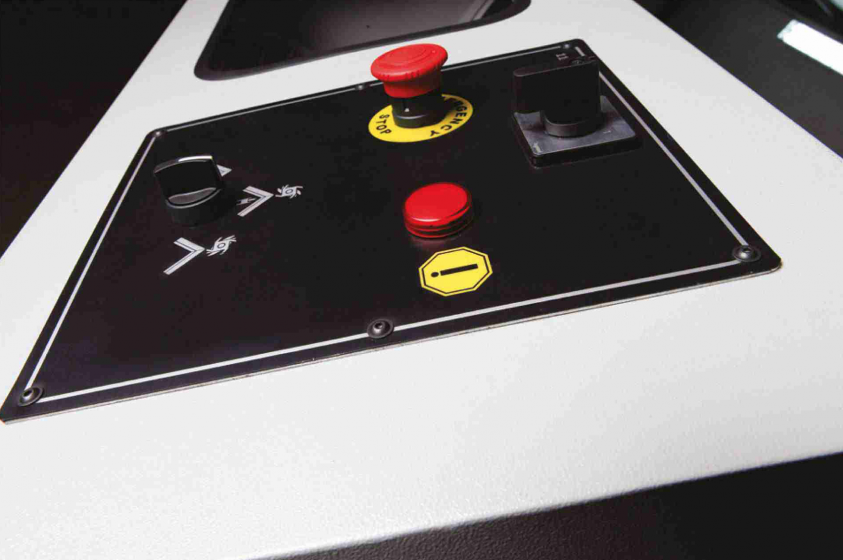

• It is equipped with a PLC control system and has a strengthened engine bearing axle.
• Internal lighting is provided for improved visibility.
• There is a special storage section for milling cutter holders.
• The power supply protects the system from overvoltage.
• Safety measures, both mechanical and electrical, have been carefully implemented.
• For not coated profiles, a couple of cutting devices are included for upper and lower cleaning.
• 4 cutter holders are provided.
• The power supply protects the system from voltage overload.
