Ozgenc Makina DC 400

PVC Digital Profile Measuring Table

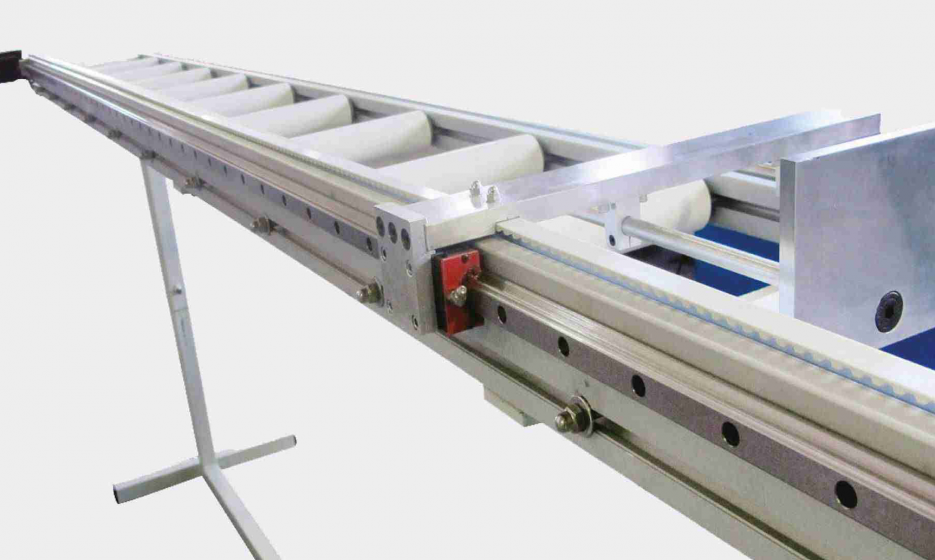

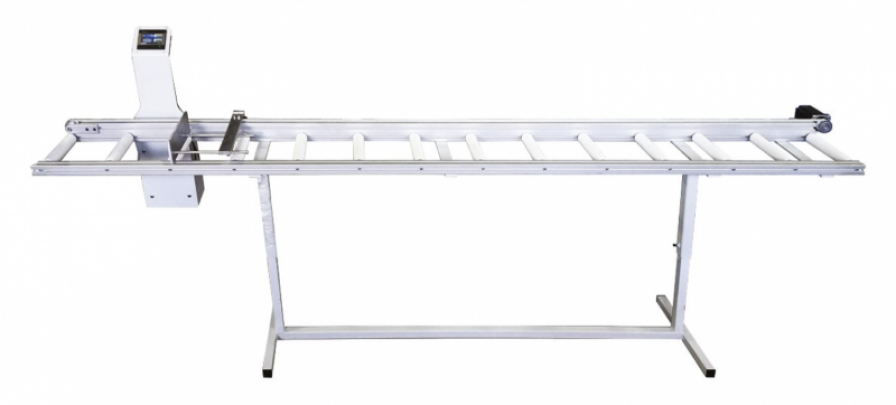

To provide a more convenient cutting process, the DC400 digital conveyor is attached to the cutting machines on the right side. By inputting the desired length on the touchscreen, the measurement block will move to the specified position. Once a cutting list is entered, the cutting procedure will automatically progress to the next step after each cut is completed.

Key features of the DC400 digital conveyor include:

• High measurement accuracy of 0.1mm

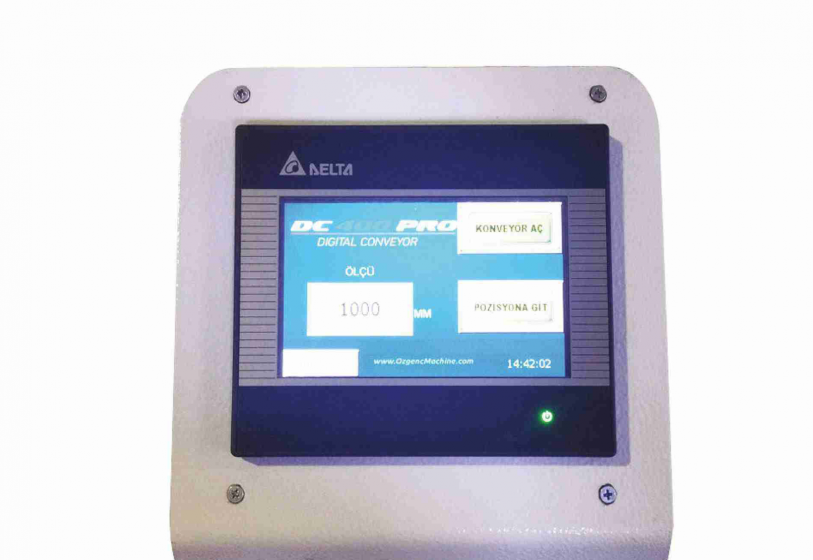

• User-friendly touchscreen interface
• After each cut, the measuring block moves back one step, allowing for easy profile taking
• Designed for practicality and efficient use.

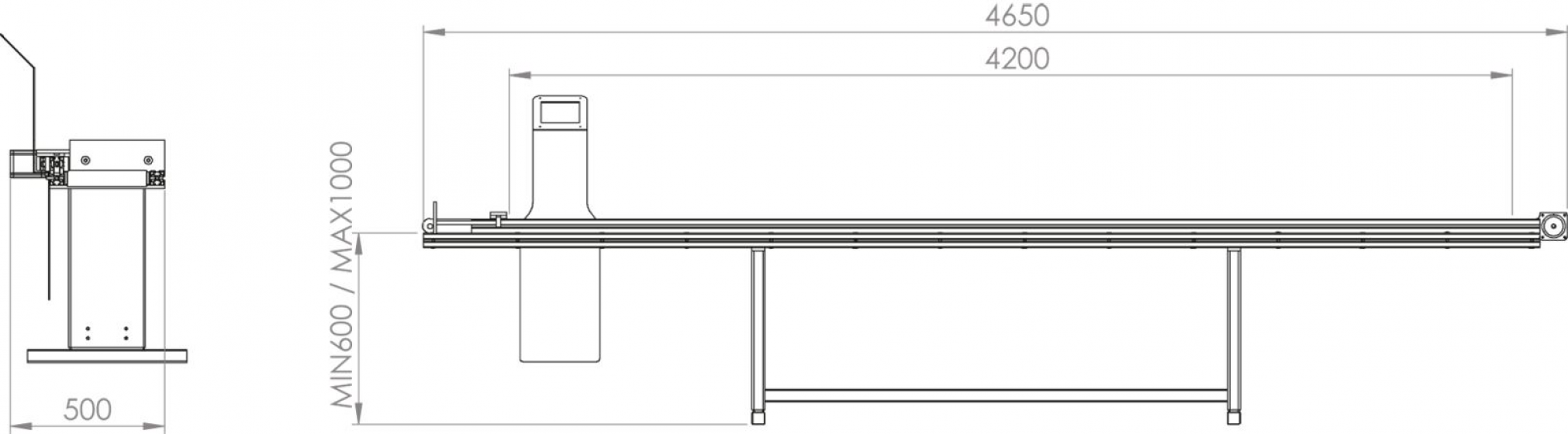

Available Lengths:

• 3.650mm ( Max piece cutting legth 3200mm )
• 4.650mm ( Max piece cutting legth 4200mm )
• 5.650mm ( Max piece cutting legth 5200mm )
• 6.650mm ( Max piece cutting legth 6200mm )
