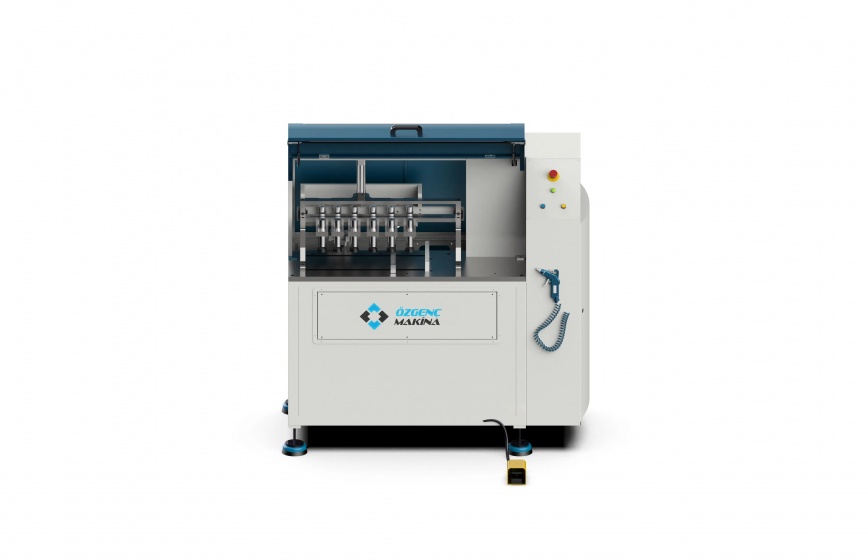

Ozgenc Makina OMRM 121 PRO
back.jpg)
Automatic Multiple End Milling Machine
Technical specifications
- Automatic milling operation with the ability to perform end milling on 1 to 6 profiles simultaneously.
- Quick and efficient blade changing system.
- Rotating support system for easy and rapid adjustment.
- Cutting speed can be easily adjusted using the regulator on the control panel.
- Vertical pneumatic clamping system ensures secure positioning of the profiles.
- Specially designed plate prevents profile sliding during milling operation.
- Additional fixing of the profile is achieved through the use of a side stop.
- Includes 2 cutter holders for versatile milling options.
- Special storage section provided for convenient storage of milling cutter holders.
Machine
|
Machine Weight
|
340 kg
|
|
Height
|
1720 mm
|
|
Machine Width
|
1120 mm
|
|
Machine Length
|
1500 mm
|
Air Consumption
|
Air Consumption
|
15 lt/cycle
|
|
Air Pressure
|
6-8 Bar
|
Power
|
Power Supply
|
380-400V, 50hz, 3 ph
|
|
Total kW
|
1,5 kW
|
