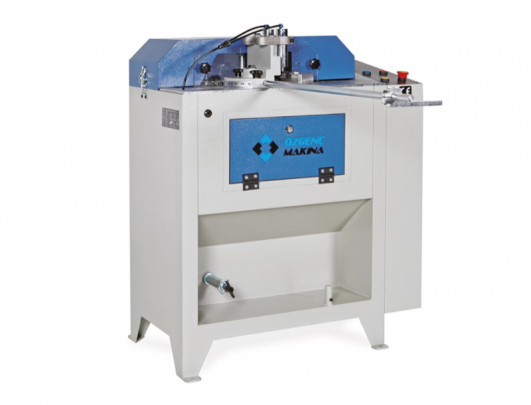

Automatic End Milling Machine for Aluminium Profiles
The machine is designed specifically for end milling operations on both PVC and aluminium profiles.

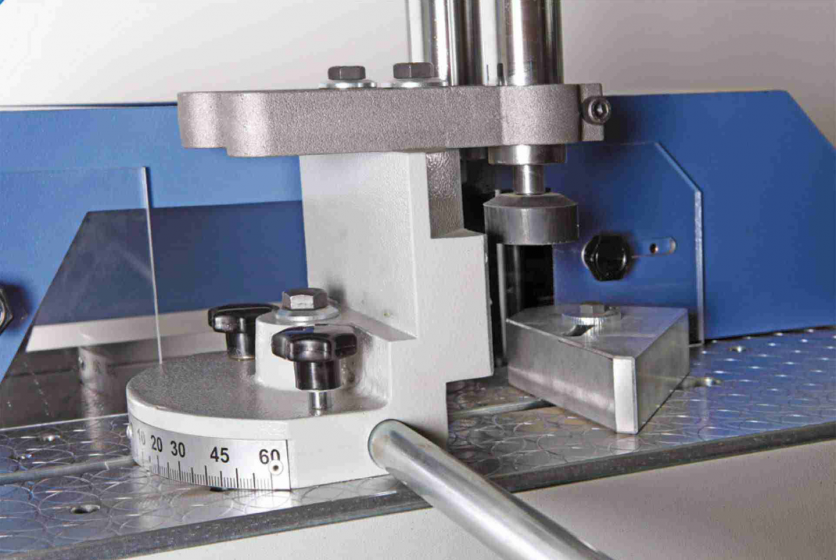

- It offers a cutting range of +45° to -45°, as well as intermediate degrees for precise and versatile milling.
- The machine features an automatic working cycle for efficient and convenient operation.

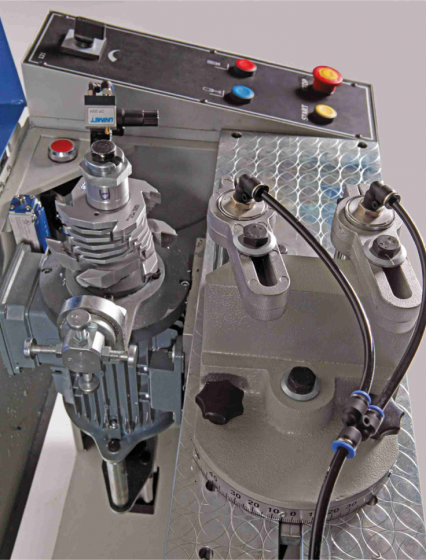

- The cutting speed can be easily adjusted using the regulator located on the control panel.
Power
|
Power Supply
|
380-400 V, 3 ph, 50-60 Hz
|
|
Total Electricity Values
|
1,1 kW
|
|
Motor kW
|
1,1 kW
|
|
Air Consumption
|
2,2 lt/min
|
|
Air pressure
|
6-8 bar
|

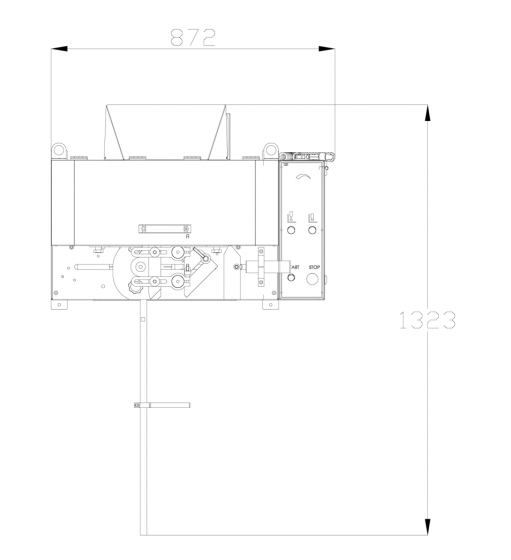

Machine
|

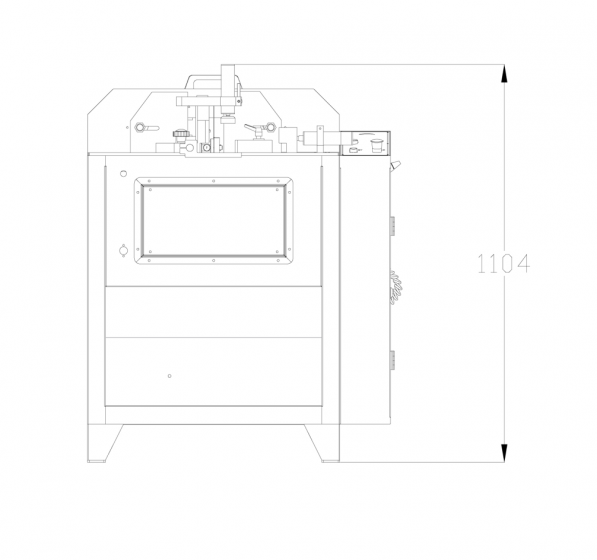

Machine Height
|
1110 mm
|
|
Machine Length
|
1310 mm
|
|
Machine Width
|
850 mm
|
|
Machine Weight
|
110 Kg
|
