Ozgenc Makina OMRM 111
back.png)

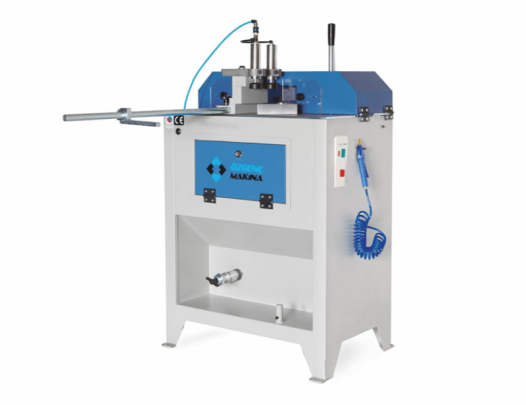

Manuel Single Head PVC Profile End Milling Machine
To form a multiple segmented window frame, the end tips of the profiles that will be joined with the sides of other profiles are milled.
- The machine is equipped with automatic milling operation for seamless and efficient operation.

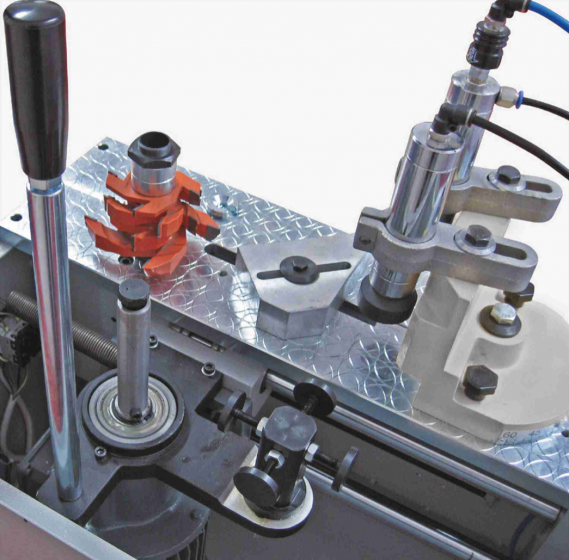

- It features a swift and easily changeable blade holding system, allowing for the operation of various profiles without wasting time on blade changes.
- The machine also includes a revolving adjustment valve that enables settings for up to four different profiles simultaneously.
Power
|
Power Supply
|
380-400 V, 3 ph, 50-60 Hz
|
|
Total Electricity Values
|
1,1 kW
|
|
Motor kW
|
1,1 kW
|
|
Air Consumption
|
2,2 lt/min
|
|
Air pressure
|
6-8 bar
|
Machine
|
Machine Height
|
190 mm
|
|
Machine Length
|
1310 mm
|
|
Machine Width
|
850 mm
|
|
Machine Weight
|
110 Kg
|
|
Max. Machinable Profile Height
|
90 mm
|
|
Max. Machinable Profile Width
|
90deg = 120 mm, 45deg = 90 mm
|
