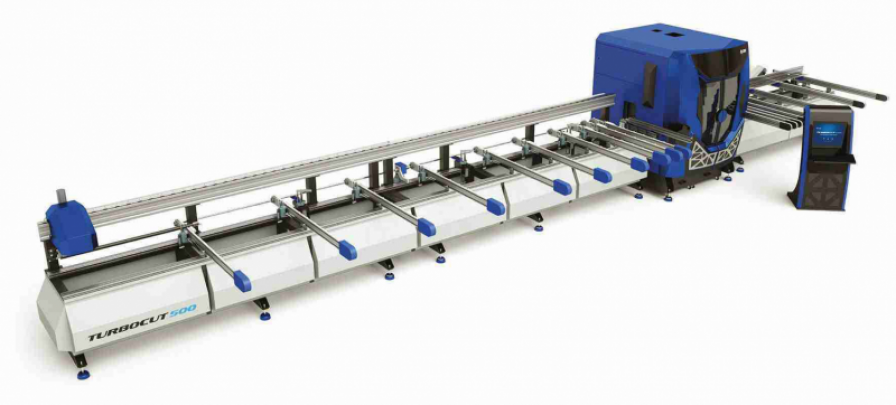

Ozgenc Makina TURBOCUT 500 AL

Aluminium Profile Cutting and Machining Center

• The machine is compatible with all joinery and optimization programs, allowing for seamless integration into existing workflows.

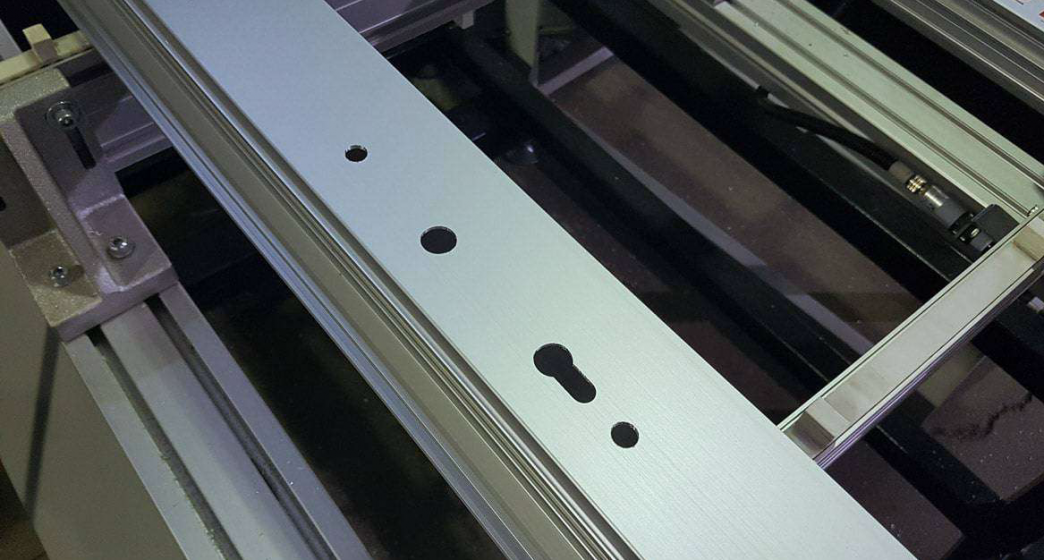

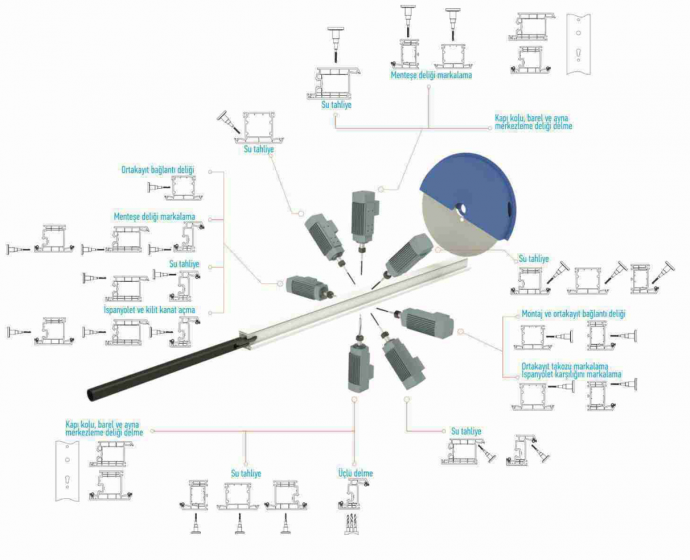

• With its 3 axes controlled CNC processing center, the machine can perform all necessary operations on PVC profiles, including marking, opening key holes, copy routing for water slot milling, hinge holes, handle holes, and more.
• The milling unit is capable of opening cylinder slots and handle holes with a single operation, saving time and increasing efficiency.
• The 3 axis profile gripper ensures secure and accurate positioning of profiles during processing.

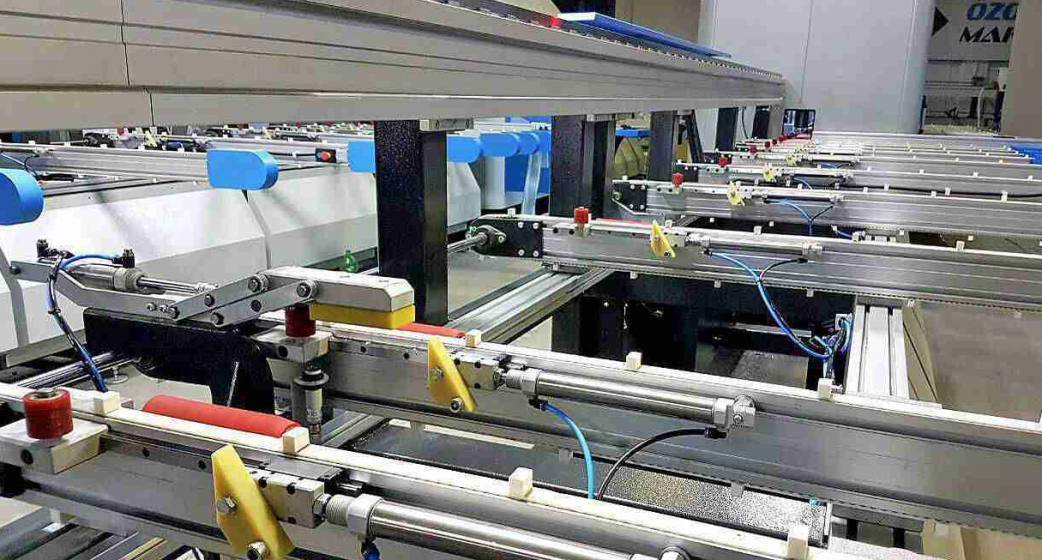

• The machine features an automatic profile handling feature, making it easier to load and unload profiles.
• The automatic profile length detection feature allows the gripper to quickly capture the profile without wasting time on manual measurements.

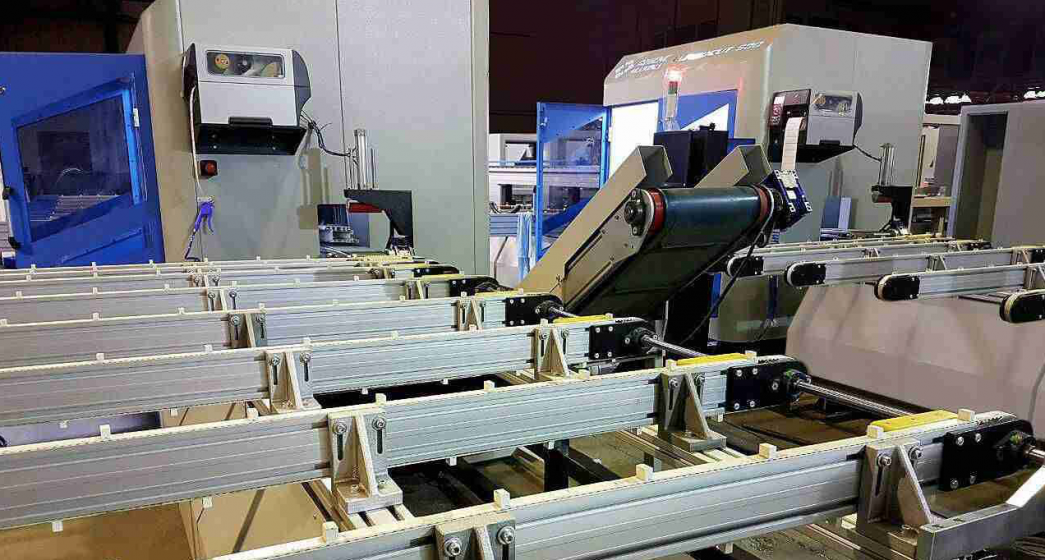

• Profiles ranging from 500 mm to 6500 mm can be loaded onto the profile feeding unit, providing flexibility in processing different sizes.
• The machine includes remote desktop support, allowing for convenient monitoring and control from a remote location.
• The control system is based on Windows OS and features a 21.5” screen for easy navigation and operation.
• The machine is equipped with 9 high-speed special design spindles for precise cutting and shaping.

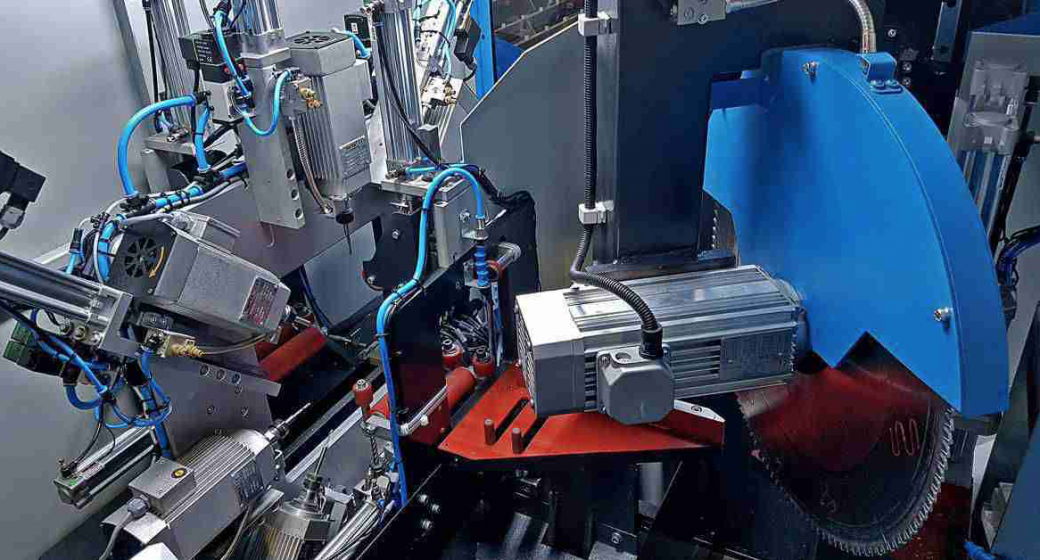

• Two saw blades with diameters of Ø550 mm and Ø450 mm are included for efficient cutting.

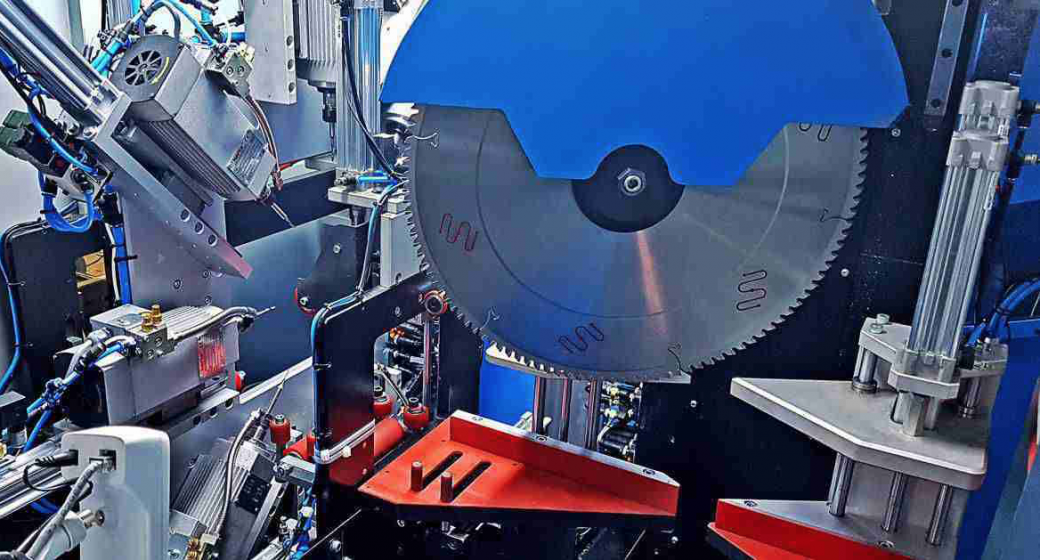

• The upper saw (Ø550 mm) can cut angles between 35°-145° with servo axis control, ensuring accurate and precise results.
• The bottom saw (Ø450 mm) is fixed at 135° for fast cutting on 45° / 135° angles.
• The machine is fully compatible with the CNC screwing station SC 200, enabling seamless integration for additional operations.
