Ozgenc Makina SL 500
back.png)

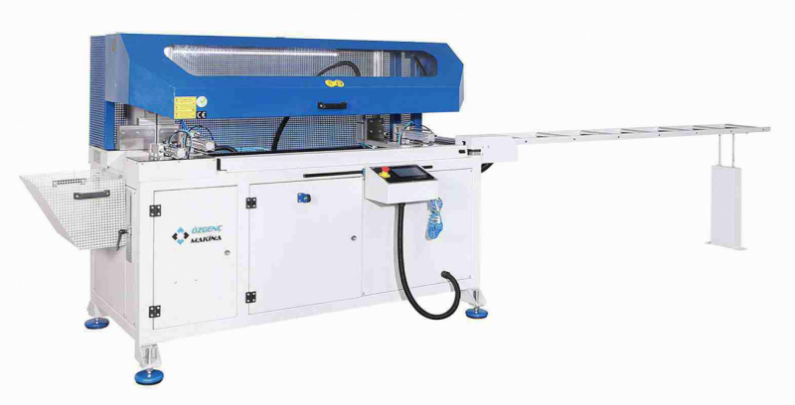

Aluminium Corner Connector Profile Cutting Machine ( Feed & Cut )
High precision and fast cutting capabilities with the servo motor motion system.
Specifically designed for cutting aluminium corner connector profiles and other profiles used in mass production.

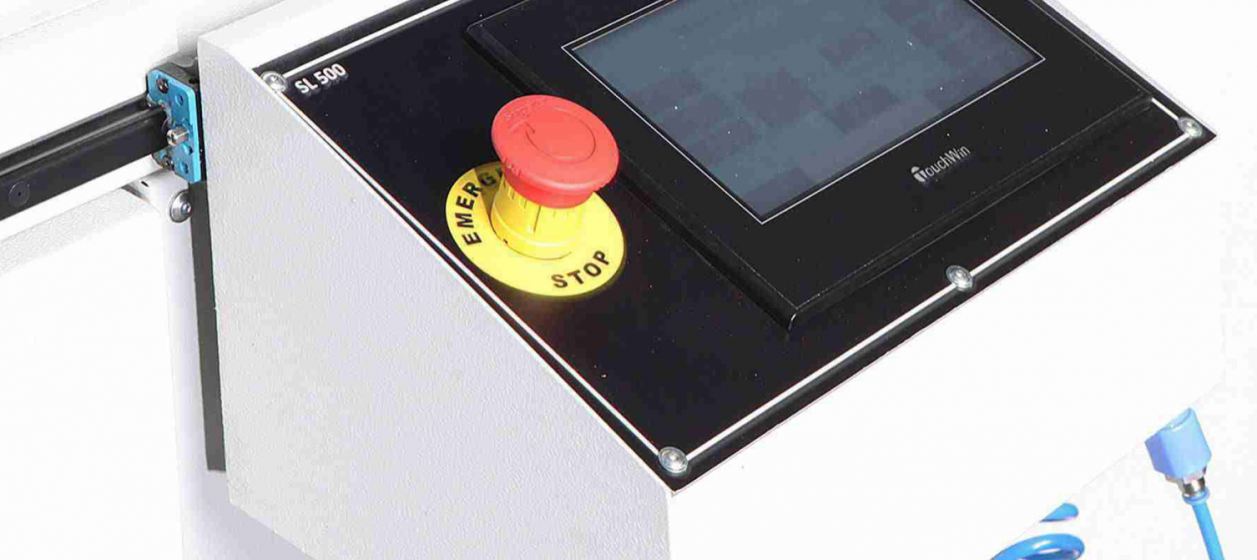

- Effortless operation with the automatic profile slicing machine

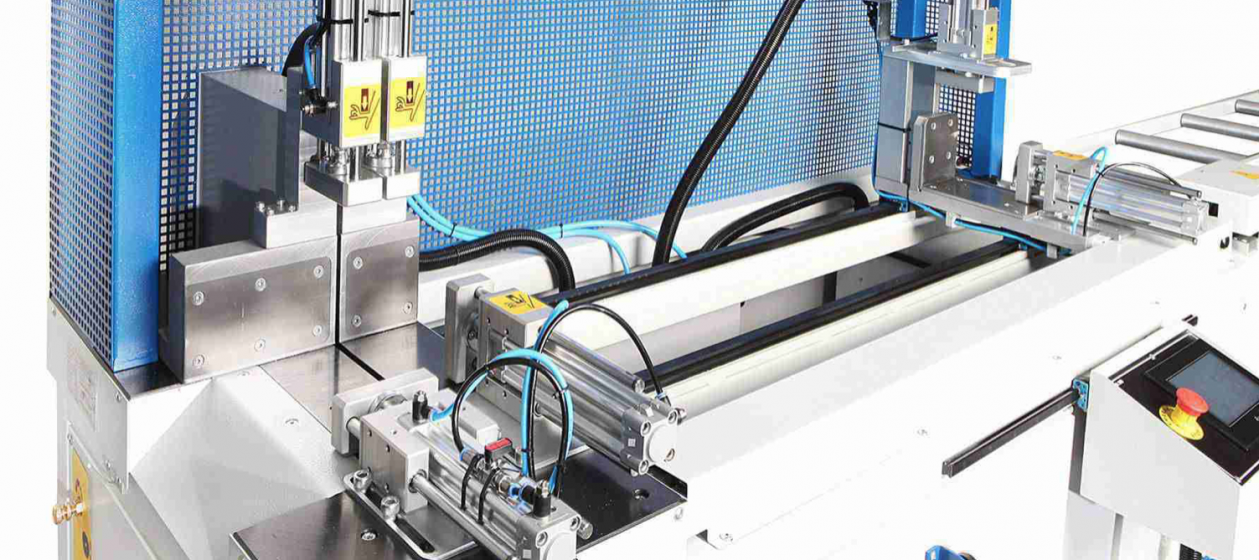

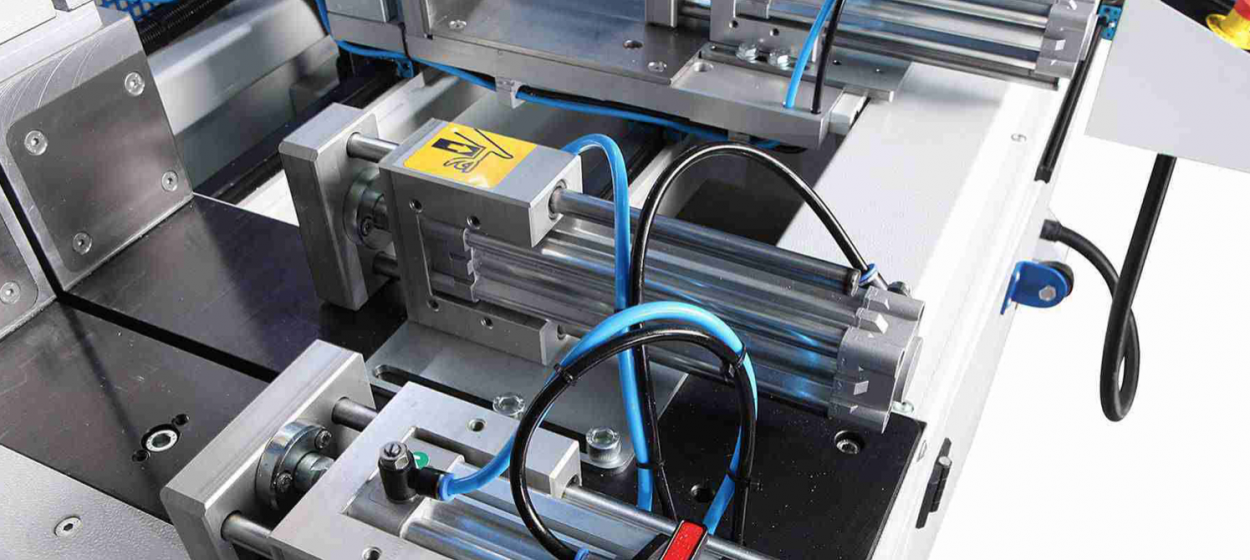

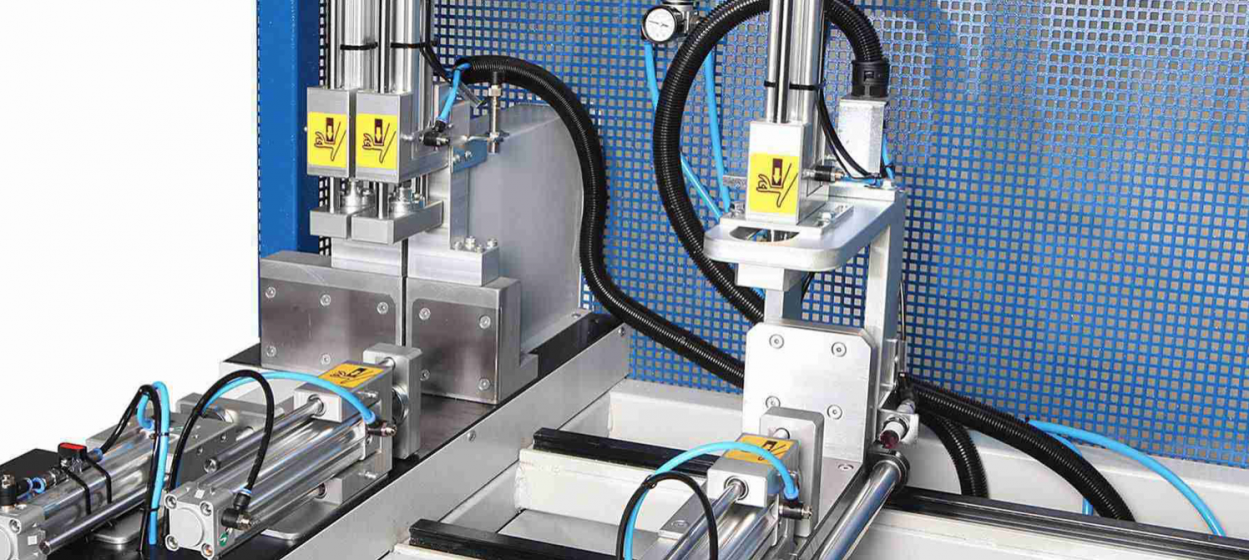

- Secure clamping of materials with the double side clamping system
- Achieves an impressive accuracy of +/- 0.1mm for precise cuts
- Equipped with a Ø 500mm saw for efficient and effective cutting
Power
|
Power Supply
|
380-400 V, 3 ph, 50-60 Hz
|
|
Spindle speed
|
3000 RPM
|
|
Total kW
|
5 kW
|
|
Air pressure
|
6-8 bar
|
|
Air Consumption
|
30 lt/min
|
Machine
|
Machine Height
|
1600 mm
|
|
Machine Length
|
2000 mm
|
|
Machine Width
|
1200 mm
|
|
Machine Weight
|
310 Kg
|
Saws
|
Saw Outside Diameter
|
Ø500
|
|
Inside Diameter of Saw
|
Ø30
|
|
Saw Thickness
|
300 lt/min
|
|
Number of Teeth
|
120
|
