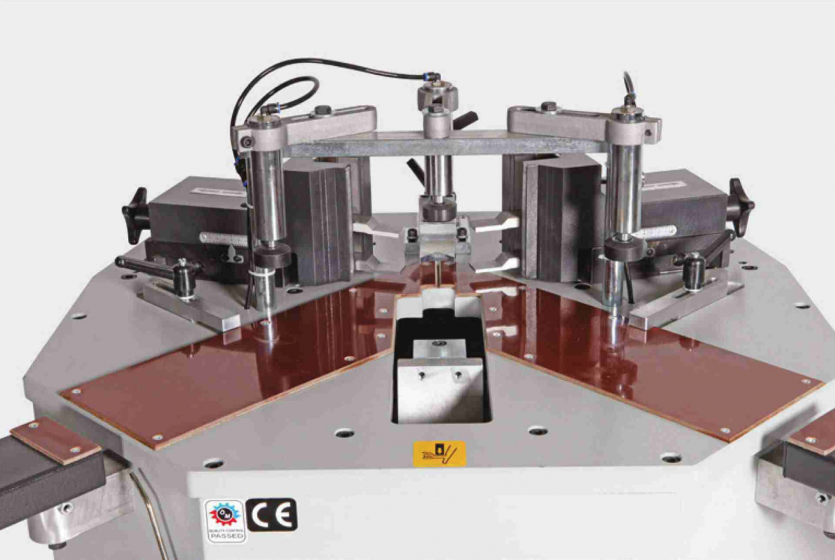

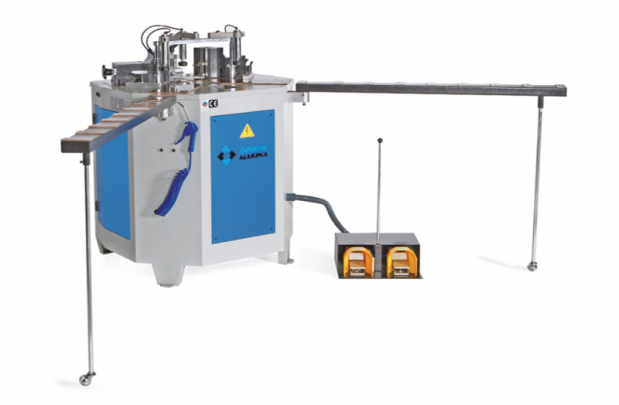

Corner Crimping Machine for Aluminium Profiles

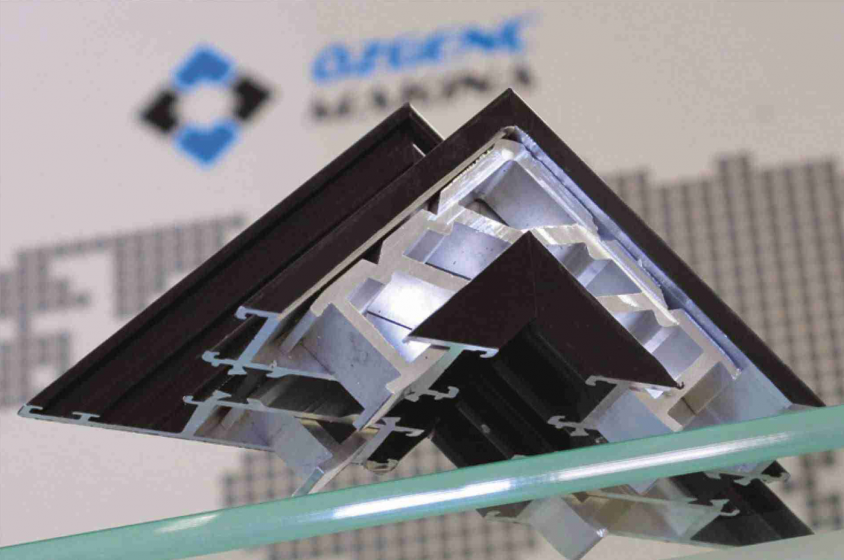

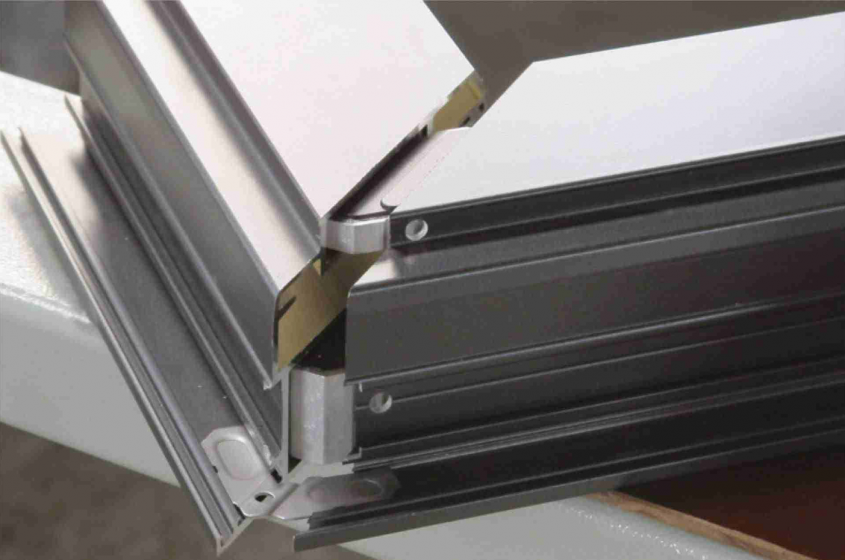

By applying pressure, the corners of two aluminium profiles are joined together with a wedge placed inside.
- The working principle is pneumatic.

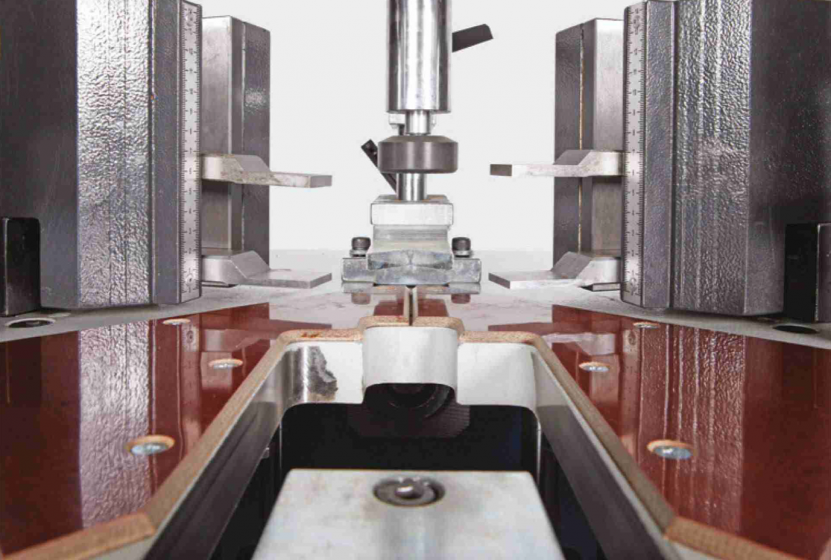

- Knives adjustable in 3 axes are supplied with 2 universal heads.

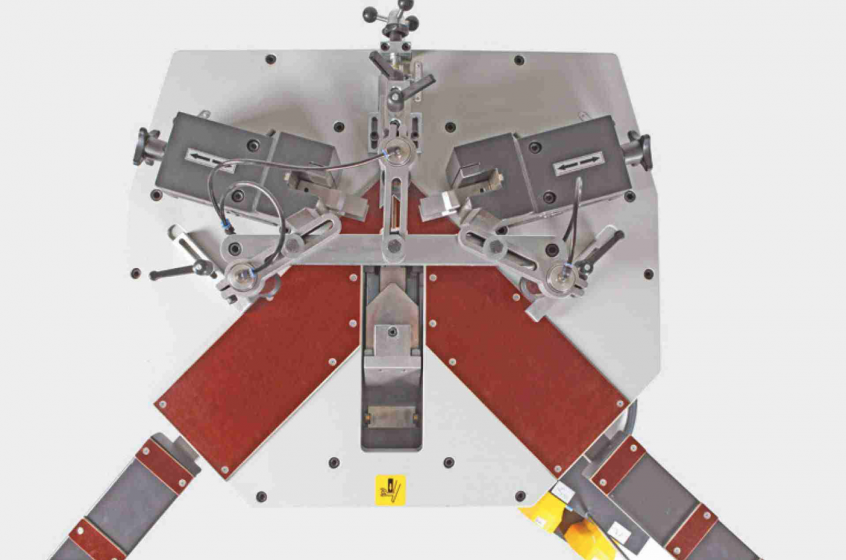

- Synchronous movement of the punching heads is ensured by the lever system for pneumatic crimping.
- For easier handling of the frames, there is a universal hydropneumatic drop-away stop.
Power
|
Hydraulic Printing
|
100-120 Bar
|
|
Pressing Power
|
3250 kgf
|
|
Air pressure
|
6-8 bar
|
Profile
|
Min. Profile Height
|
60 mm
|
|
Max. Profile Height
|
140 mm
|
|
Max. Profile Width
|
140 mm
|
Machine
|
Machine Height
|
1350 mm
|
|
Machine Length
|
1000 mm
|
|
Machine Weight
|
1000 mm
|
|
Machine Width
|
320 kg
|
