Ozgenc Makina OMRM 133

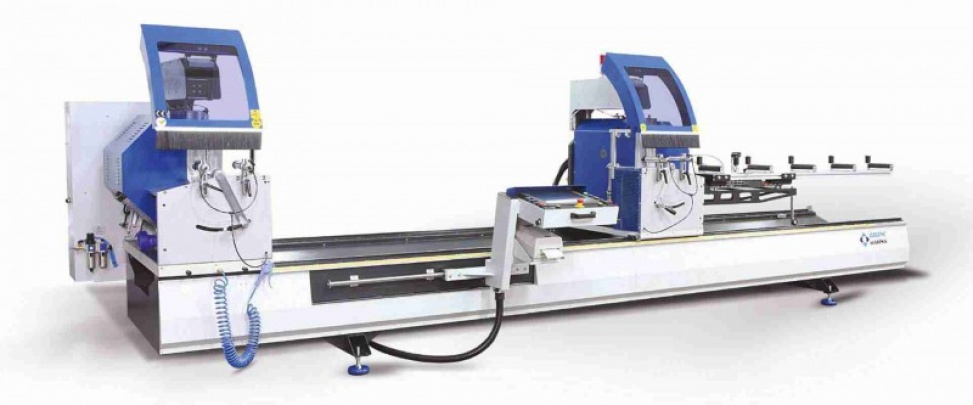

Automatic Double Head Aluminium Profile Cutting Machine

Designed for PVC & aluminium profiles cutting.

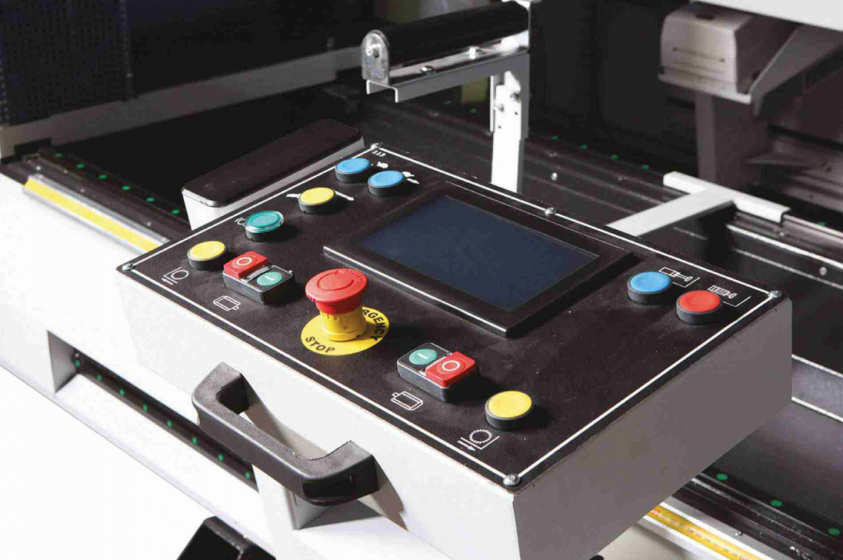

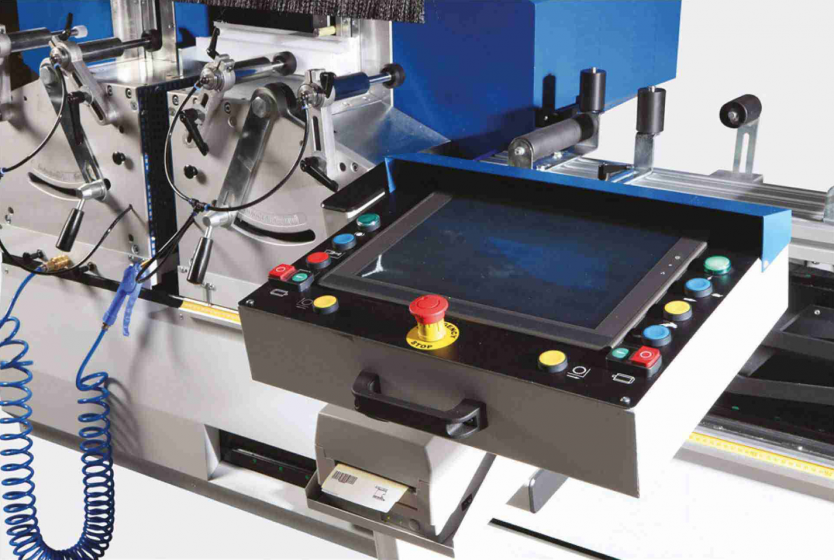

• The cutting length size and angle degree can be inputted through the LCD-display on the control panel.

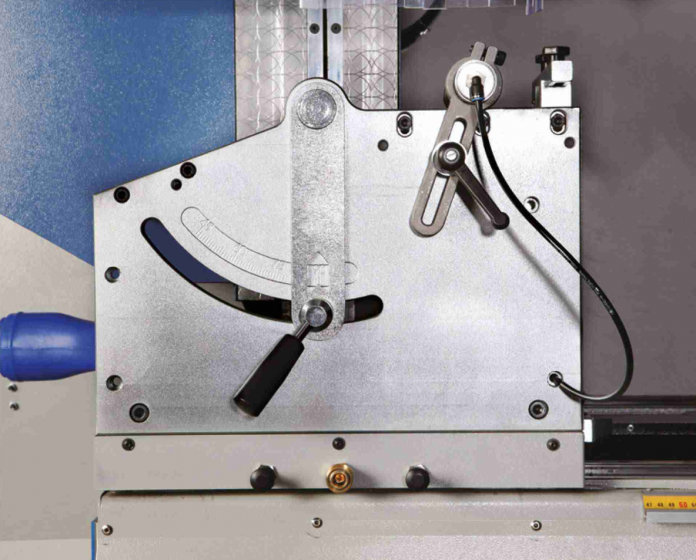

• The head position automatically adjusts for 45° and 90° degrees, with easy adjustment for intermediate angles.
• The diamond saw blade has a diameter of 550 mm.
• The output of the disk measures 200 mm.
• A servo motor motion system ensures fast positioning and maximum cutting precision.
• The machine provides high-precision linear motion systems.
• It features a horizontal pneumatic clamping kit and a vertical pneumatic clamping system.
• The cutting system is compact in size.
