Ozgenc Makina OMRM 125 PRO
back.png)

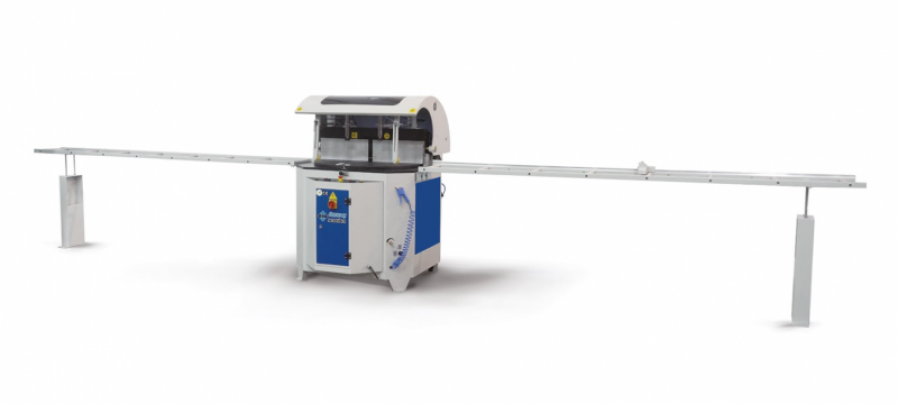

Automatic Single Head Aluminium Profile Cutting Machine (600mm)
Designed for PVC and aluminium profiles cutting.
- The cutting range is from 0° to 180°.
- Fixed stops are available at 15°, 22.5°, 30°, 45°, 60°, and 90° degrees, allowing for cuts without having to set the angle. The remaining positions can be set using a graduated rule as a reference.
- An additional lock on the sliding plate allows for fixing intermediate degrees.
- The sliding plate has a special design to prevent sawdust from collecting inside it.
Power
|
Power Supply
|
380-400 V, 3 ph, 50-60 Hz
|
|
Spindle speed
|
3000 RPM
|
|
Total kW
|
5 kW
|
|
Air pressure
|
6-8 bar
|
|
Air Consumption
|
2,2 lt/min
|
Machine
|
Machine Height
|
1700 mm
|
|
Machine Length
|
7070 mm
|
|
Machine Width
|
1000 mm
|
|
Machine Weight
|
300 Kg
|
Saws
|
Saw Outside Diameter
|
Ø600
|
|
Inside Diameter of Saw
|
Ø30
|
|
Saw Thickness
|
4,6 mm
|
|
Number of Teeth
|
140
|
null
|
Machinable Min. Profile Length
|
540 mm
|
|
Machinable Max. Profile Length
|
3300 mm
|
