Ozgenc Makina OMRM 125 AL
back.png)

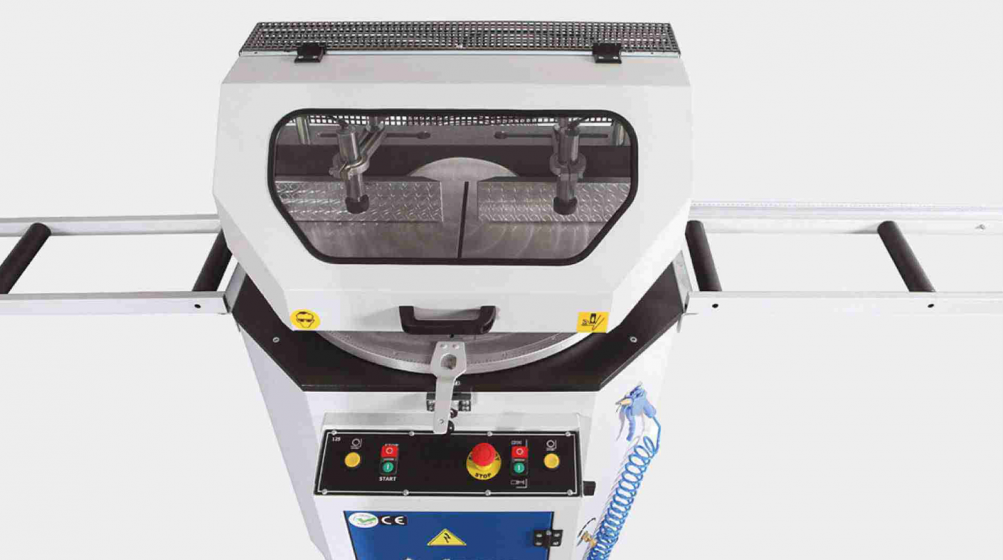

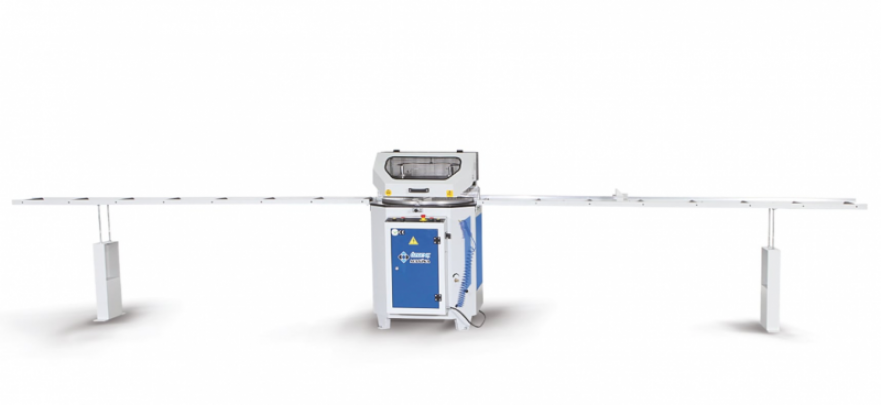

Automatic Single Head Aluminium Profile Cutting Machine

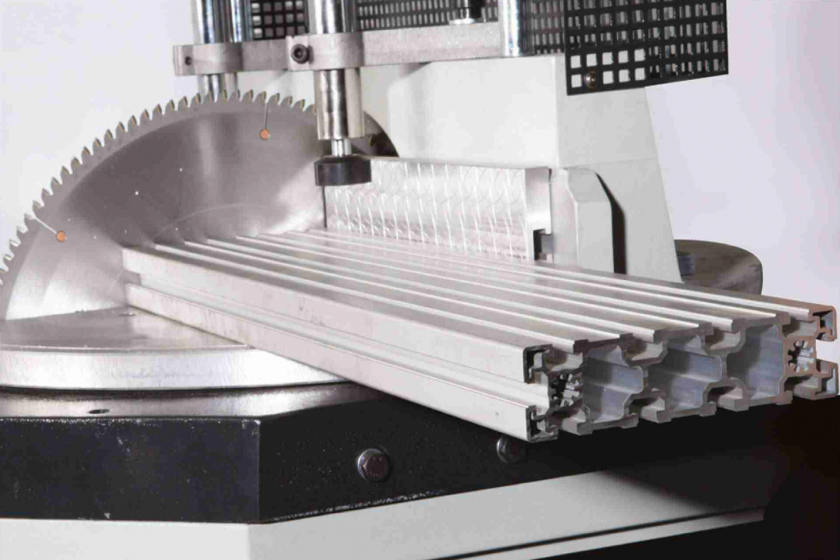

Specifically designed for cutting PVC and aluminium profiles.

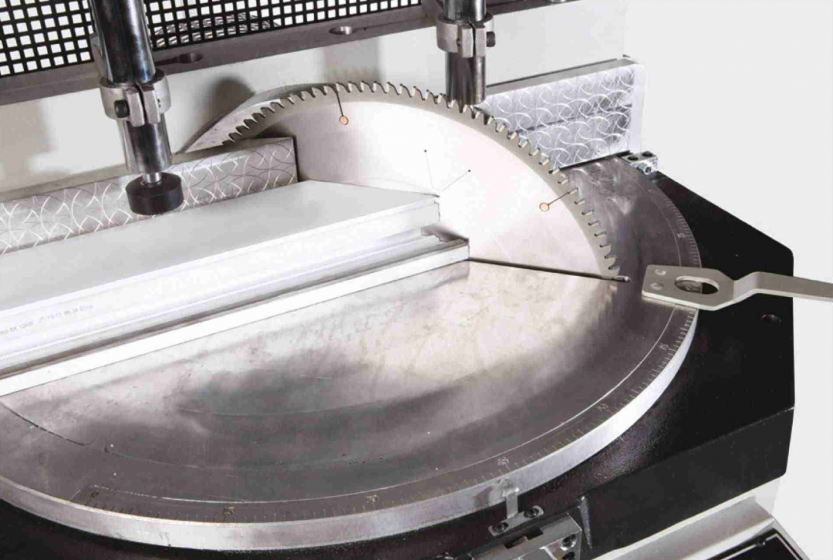

- Cutting range from 0° to 180°.
- Fixed stops at 15°, 22.5°, 30°, 45°, 60°, and 90° angles for easy cuts without manual angle adjustment.
- Graduated rule can be used as a reference for setting other angles.
- Extra lock on the sliding plate ensures secure fixation of intermediate degrees.
Power
|
Power Supply
|
380-400 V, 3 ph, 50-60 Hz
|
|
Spindle speed
|
3000 RPM
|
|
Total kW
|
1,5 kW
|
|
Air pressure
|
6-8 bar
|
|
Air Consumption
|
41 lt/min
|
Machine
|
Machine Height
|
1600 mm
|
|
Machine Length
|
7070 mm
|
|
Machine Width
|
1080 mm
|
|
Machine Weight
|
150 Kg
|
Saws
|
Saw Outside Diameter
|
Ø450
|
|
Inside Diameter of Saw
|
Ø30
|
|
Saw Thickness
|
300 lt/min
|
|
Number of Teeth
|
120
|
Profile
|
Machinable Min. Profile Length
|
440 mm
|
|
Machinable Max. Profile Length
|
3300 mm
|
