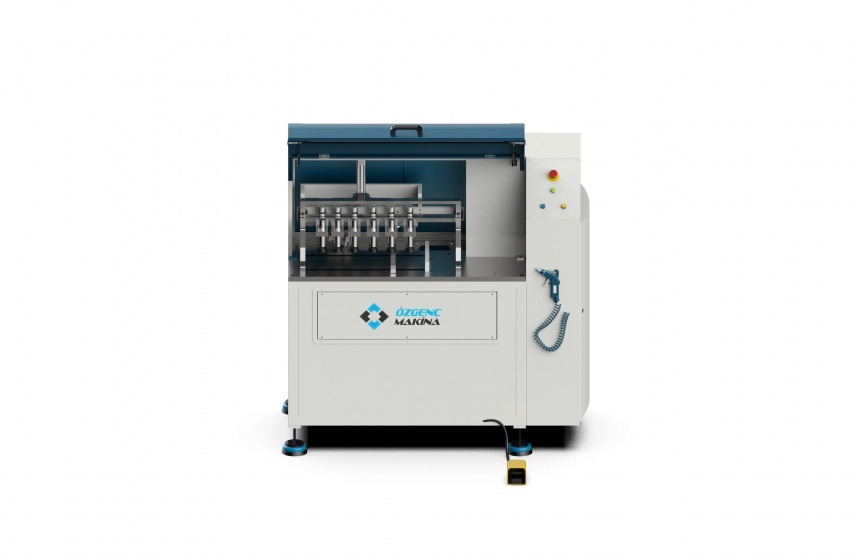

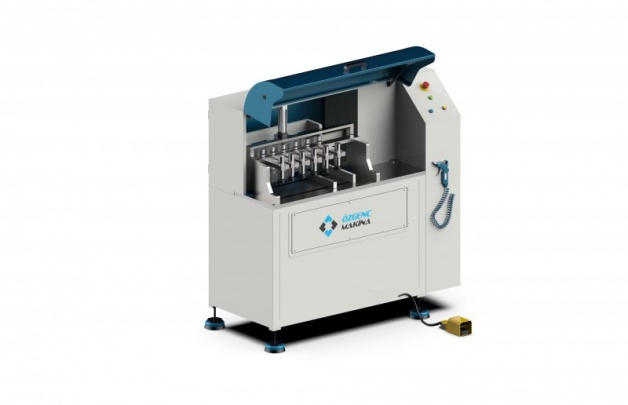

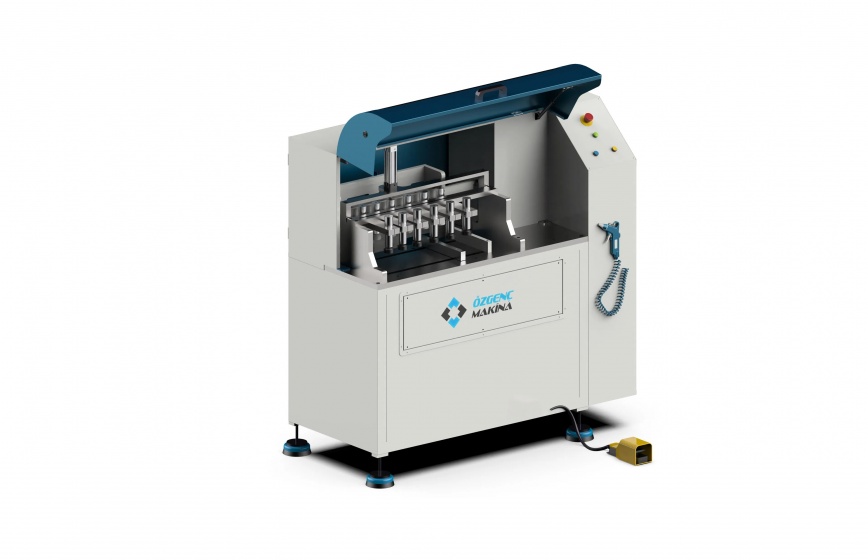

Ozgenc Makina OMRM 121 PRO
back.jpg)
Automatic Multiple End Milling Machine
Technical specifications
- The machine is equipped with an automatic milling operation for efficient and accurate milling of aluminium and PVC profiles.
- It has the capability to perform end milling operations on 1 to 6 profiles.
- The machine features a fast blade changing system for quick and easy blade replacement.
- A rotating support system is included, allowing for quick adjustments during operation.
- The cutting speed can be easily adjusted using the regulator on the control panel.
- The machine is equipped with a vertical pneumatic clamping system for secure profile positioning.
- It also includes a specially designed plate to prevent profile sliding during milling.
- For added stability, there is an additional fixing of the profile using a side stop.
- The machine comes with 2 items of cutter holders for versatile milling options.
- There is also a special storage section dedicated to milling cutter holders for convenient organization.
Machine
|
Machine Weight
|
340 kg
|
|
Height
|
1720 mm
|
|
Machine Width
|
1120 mm
|
|
Machine Length
|
1500 mm
|
Air Consumption
|
Air Consumption
|
15 lt/cycle
|
|
Air Pressure
|
6-8 Bar
|
Power
|
Power Supply
|
380-400V, 50hz, 3 ph
|
|
Total kW
|
1,5 kW
|
