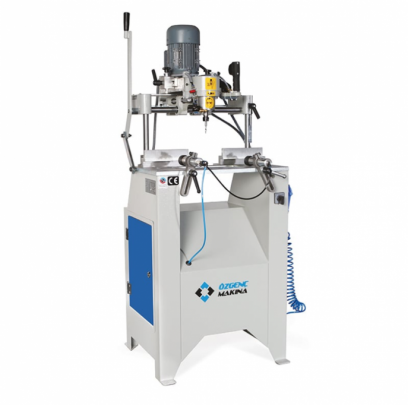

Ozgenc Makina OMRM 117P
back.png)
Copy Router for Aluminium Profiles
Additionally, this machine is designed for copy milling of both aluminium and PVC profiles.

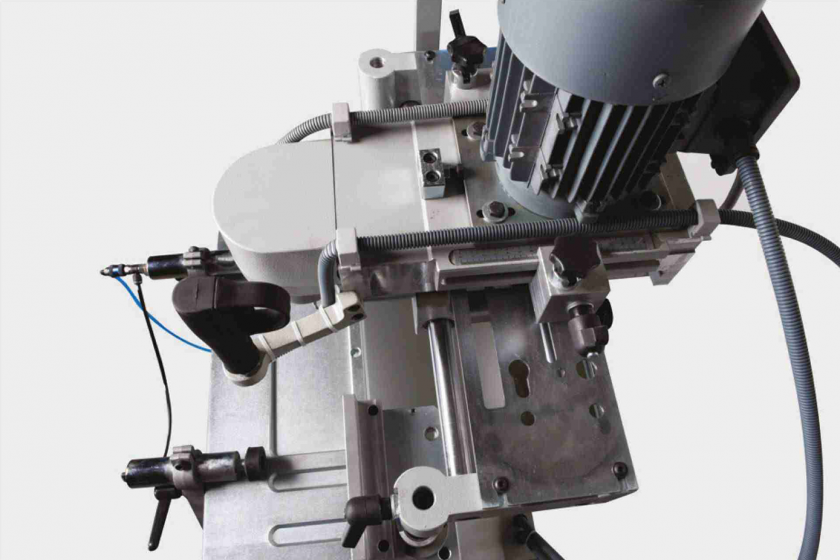

- The copy routing unit can be used in conjunction with a copying template.

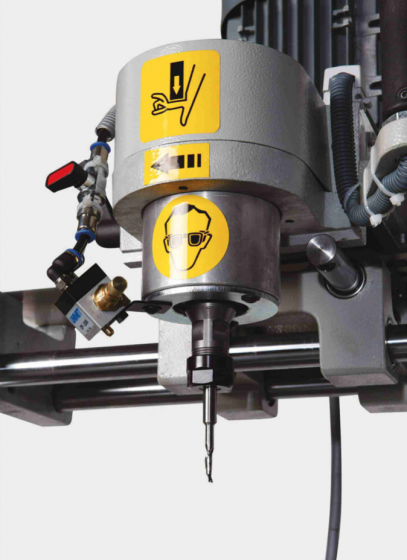

- The head unit of the machine is supported by recirculating ball bearings, providing excellent stability and precision when working on various types of aluminium and PVC profiles.
- Smooth movement of the units is facilitated by shock-absorbers.
Power
|
Power Supply
|
380-400 V, 3 ph, 50-60 Hz
|
|
Total Electricity Values
|
1,1 kW
|
|
Motor kW
|
1,1 kW
|
|
Air Consumption
|
9 lt/min
|
|
Power Supply
|
6-8 bar
|

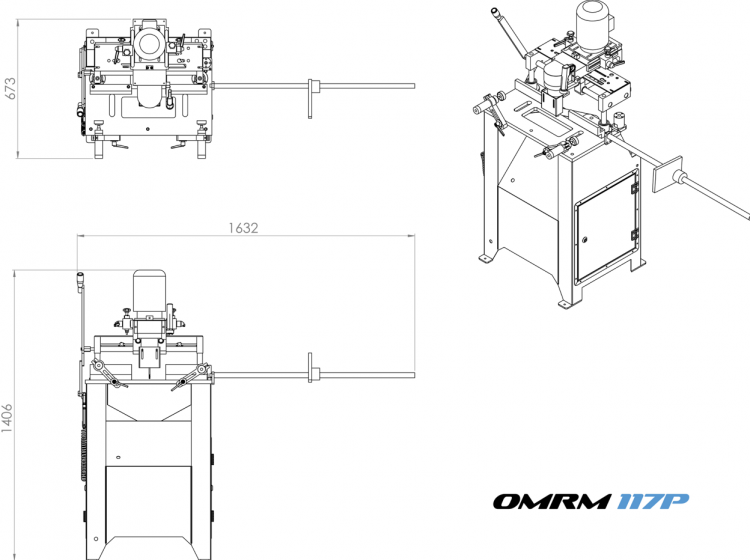

Machine
|
Machine Height
|
1530 mm
|
|
Machine Length
|
910 mm
|
|
Machine Width
|
770 mm
|
|
Machine Weight
|
120 Kg
|
Profile
|
Max. Machinable Profile Height
|
120 mm
|
|
Min. Machinable Profile Height
|
40 mm
|
|
Max. Machinable Profile Width
|
120 mm
|
