Ozgenc Makina OMRM 117 AL
back.png)

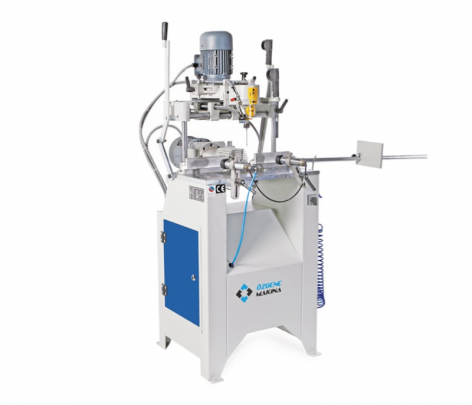

Copy Router with Triple Drilling for Aluminium Profiles
The machine is specifically designed for efficient and accurate copy milling and triple drilling of aluminium and PVC profiles.
- It features two independent routing units, one horizontal and one vertical, allowing for precise operations.

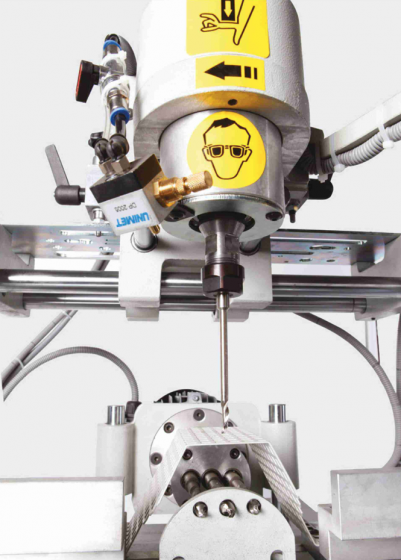

- The horizontal unit can drill three holes with fixed spacing.

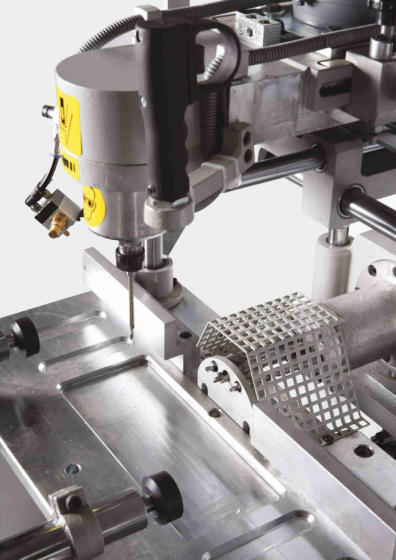

- The vertical unit is designed for copy routing using a copying template.
Power
|
Power Supply
|
380-400 V, 3 ph, 50-60 Hz
|
|
Total Electricity Values
|
1,8 Kw, 3,8A
|
|
Motor kW
|
1,1 kW
|
|
Air Consumption
|
2,2 kW
|
|
Air pressure
|
6-8 bar
|

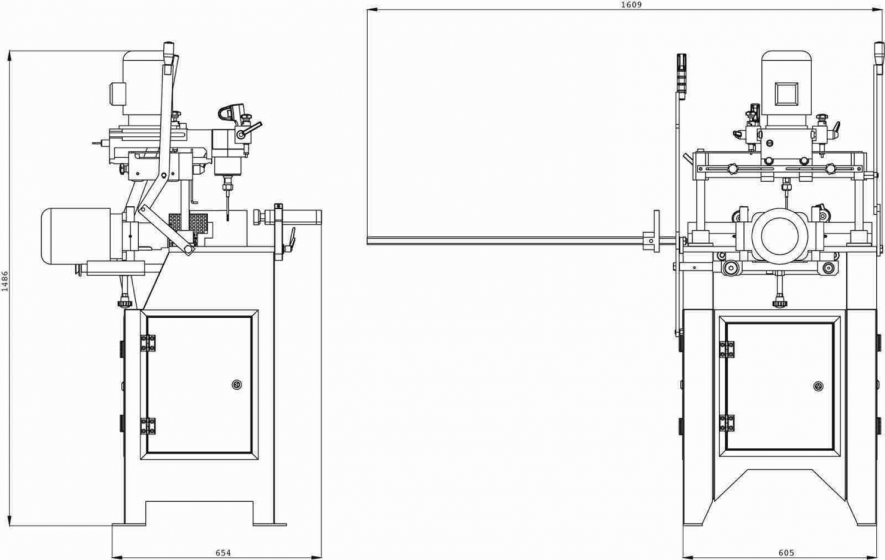

Machine
|
Machine Height
|
1450 mm
|
|
Machine Length
|
1000 mm
|
|
Machine Width
|
780 mm
|
|
Machine Weight
|
110 Kg
|
Profile
|
Max. Machinable Profile Height
|
110 mm
|
|
Min. Machinable Profile Height
|
40 mm
|
|
Max. Machinable Profile Width
|
150 mm
|
