Ozgenc Makina OMRM 115 AL
back.png)

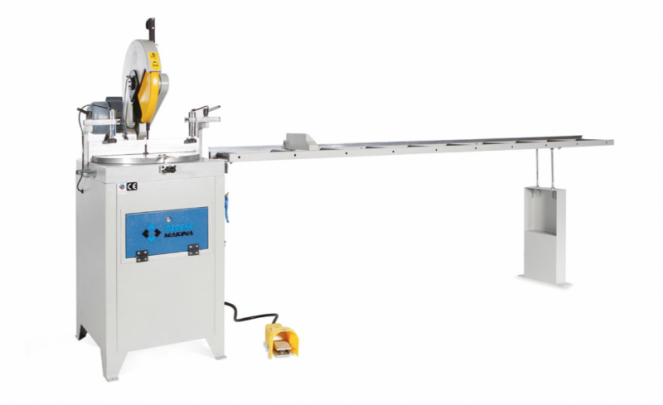

Manual Single Head Aluminium Profile Cutting Machine
Specifically designed for cutting PVC and aluminium profiles.
- Wide cutting range from +45° to -45°, allowing for precise angled cuts.
- Fixed stops at 90°, 75°, 60°, and 45° degrees, eliminating the need for manual angle adjustments for these common angles. Other angles can be easily set using the graduated rule as a reference.

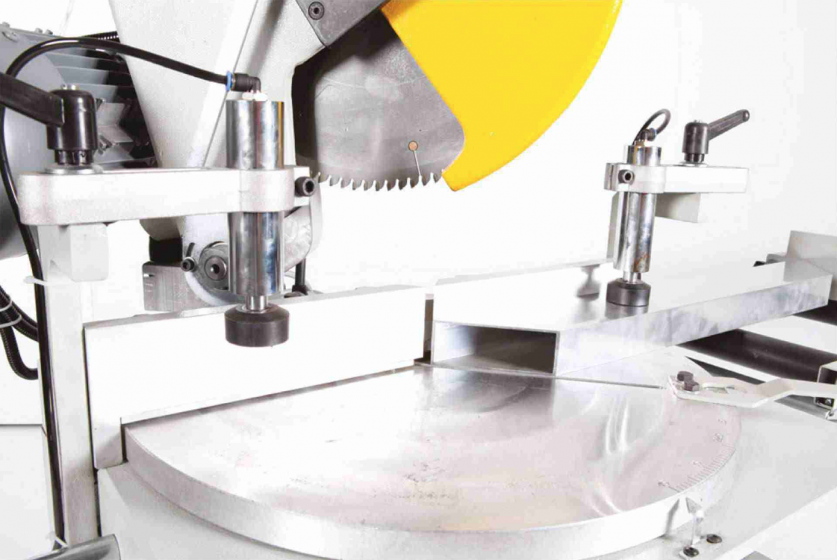

- Additional lock on the sliding plate for secure fixation at intermediate degrees.

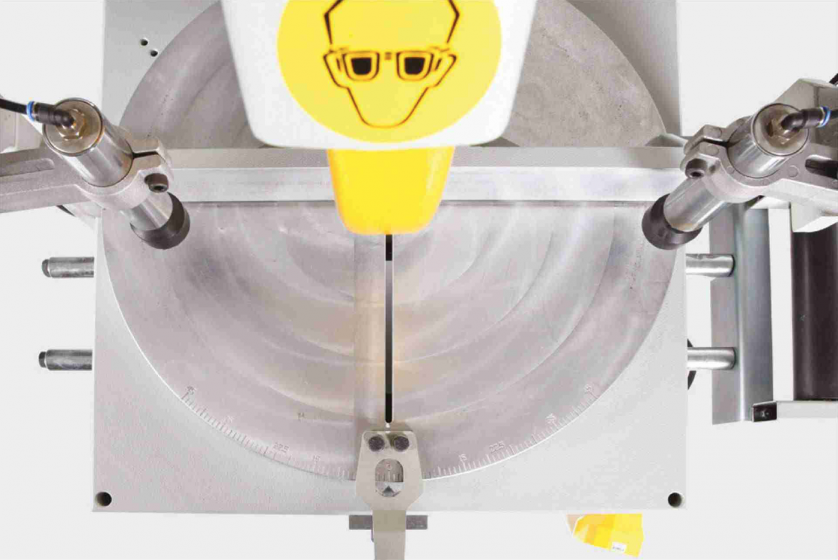

- Specially designed sliding plate prevents accumulation of sawdust inside, ensuring smooth operation and easy maintenance.
Power
Power Supply
|
380-400 V, 3 ph, 50-60 Hz
|
Spindle speed
|
3000 RPM
|
Total kW
|
1,5 kW
|
Air pressure
|
6-8 bar
|
Air Consumption
|
2,2 lt/min
|

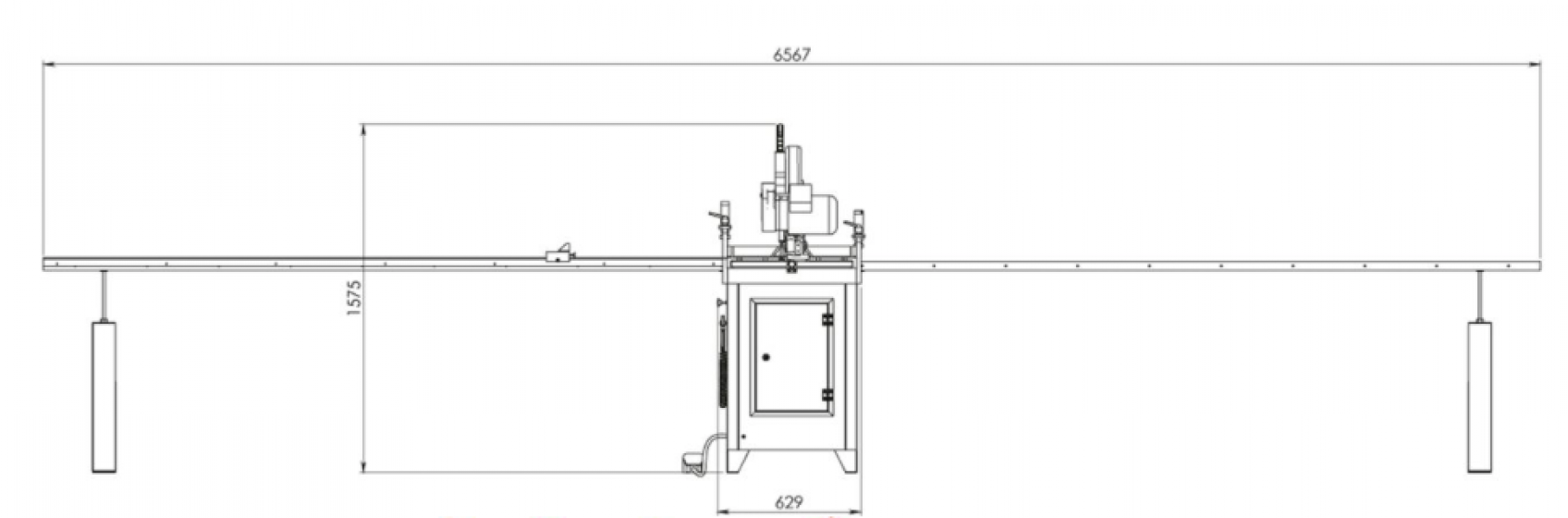

Machine
Machine Height
|
1570 mm
|
Machine Length
|
650 mm
|
Machine Width
|
950 mm
|
Machine Weight
|
140 Kg
|

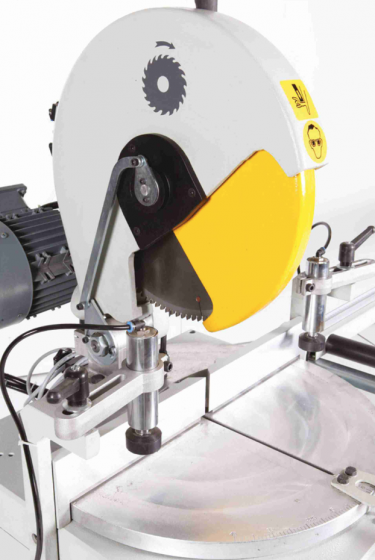

Saws
Saw Outside Diameter
|
Ø400
|
Inside Diameter of Saw
|
Ø30
|
Saw Thickness
|
4 mm
|
Number of Teeth
|
120
|
