Ozgenc Makina OMRM 105 AL
back.png)

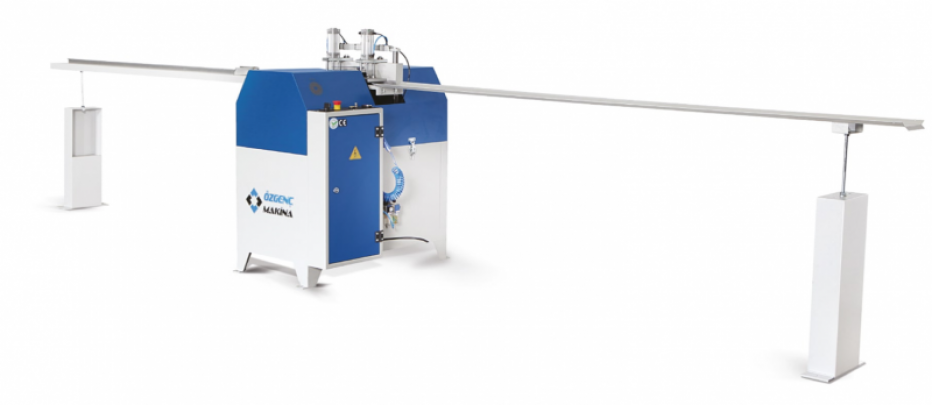

Automatic Aluminium Profile Glazing Bead Cutting Machine
Specifically designed for cutting aluminium profile glazing beads
- Cutting range includes +45° / -45° and intermediate degrees.

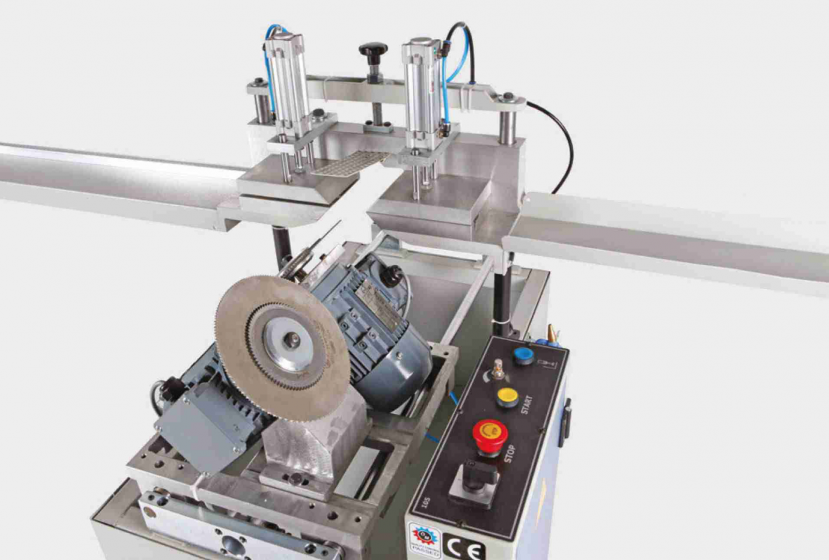

- Equipped with two fixed, opposed blade motors on the mobile carriage set at 45° to the workpiece support surface.
- Includes four cutting saw blades made of high-speed steel (HSS).
- Features a vertical pneumatic clamping system for secure and efficient clamping of materials.
Power
|
Power Supply
|
380-400 V, 3 ph, 50-60 Hz
|
|
Spindle speed
|
3000 RPM
|
|
Total kW
|
1,5 kW
|
|
Air pressure
|
6-8 bar
|
|
Air Consumption
|
25 lt/min
|
Machine
|
Machine Height
|
1170 mm
|
|
Machine Length
|
5400 mm
|
|
Machine Width
|
900 mm
|
|
Machine Width
|
140 Kg
|
Saws
|
Saw Outside Diameter
|
Ø200 (Taube), Ø120 (Small Saw)
|
|
Inside Diameter of Saw
|
Ø32 (Taube) Ø22 (Small Saw)
|
|
Saw Thickness
|
1,8 mm (Taube) 3 mm (Small Saw)
|
|
Number of Teeth
|
160 mm (Taube) 80 mm (Small Saw)
|
Profile
|
Machinable Min. Profile Length
|
300 mm
|
|
Machinable Max. Profile Length
|
2550 mm
|
