Ozgenc Makina MRT 650
back.jpg)

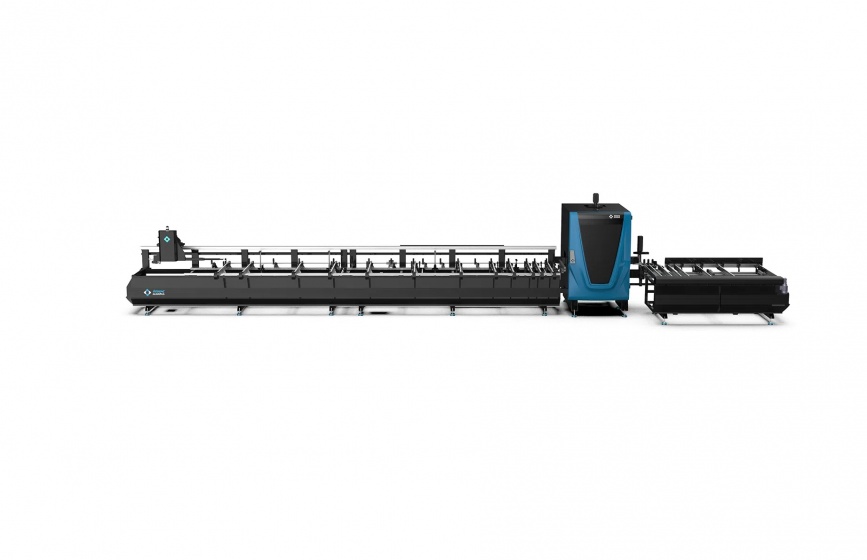

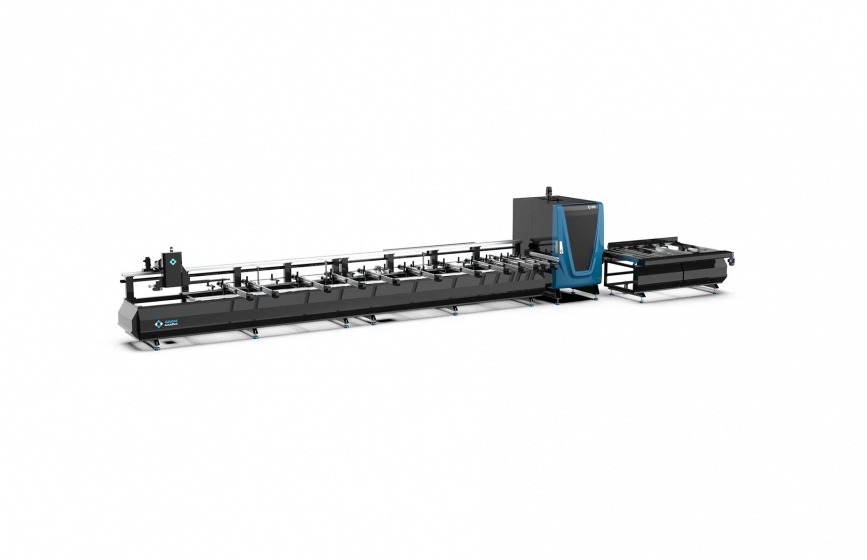

Automatic Aluminium Profile Cutting Center
Technical specifications
- The machine has the ability to cut short profiles with a movable output unit, allowing for flexibility in the cutting process.
- The profile gripper is equipped with three axes and 360° angular axis motion, enabling it to capture any type of profiles with ease.
- The control system is based on Windows OS and features a 21.5" screen, providing a user-friendly interface for easy operation.
- An automatic cooling system is included to prevent overheating during operation, ensuring optimal performance and prolonging the machine's lifespan.
- The automatic profile length detection feature allows the gripper to quickly and accurately catch profiles without wasting time, improving efficiency in the production process.
- The machine's servo motors control all axes for precise and efficient operation.
- Working files created in windows and doors design software can be easily transferred to the machine using network, WIFI, or USB connections.
- The machine has the capability to print labels for each workpiece, including any useful waste material.
- Users have the option to design their own labels and barcodes according to their preferences.
- An automatic lubrication system is integrated into the machine to ensure smooth and consistent performance.
Profile
|
Max. Cut Profile Height
|
210 mm
|
|
Machinable Min. Profile Length
|
370 mm
|
|
Machinable Max. Profile Length
|
7200 mm
|
|
Min. Profile Height
|
40 mm
|
|
Max. Cut Profile Width
|
190 mm
|
|
Min. Cut Profile Width
|
45 mm
|
Machine
|
Weight
|
4000 kg
|
|
Height
|
2750 mm
|
|
Machine Length
|
15225 mm
|
|
Width
|
3185 mm
|
Power
|
Power Supply
|
380-400V, 50hz, 3 ph
|
|
Total kW
|
15 kW
|
Air Consumption
|
Air Pressure
|
6-8 bar
|
|
Air Consumption
|
300 lt/min
|
