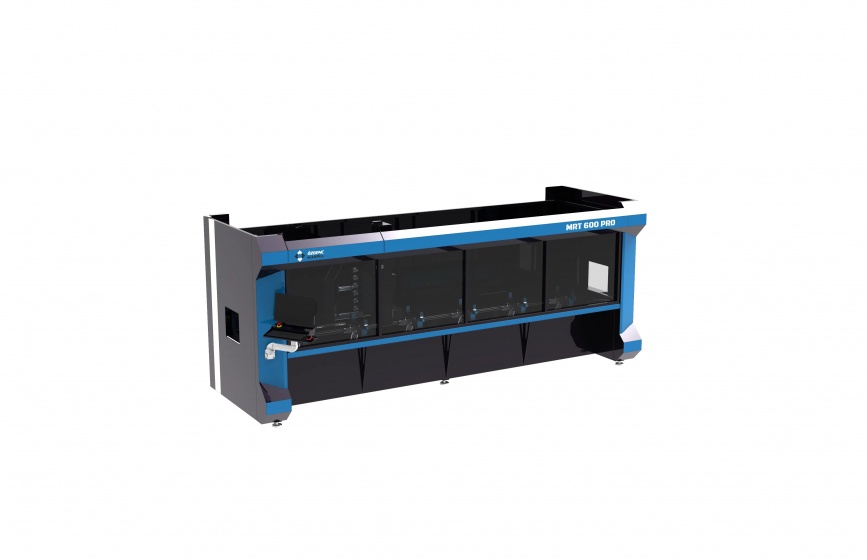

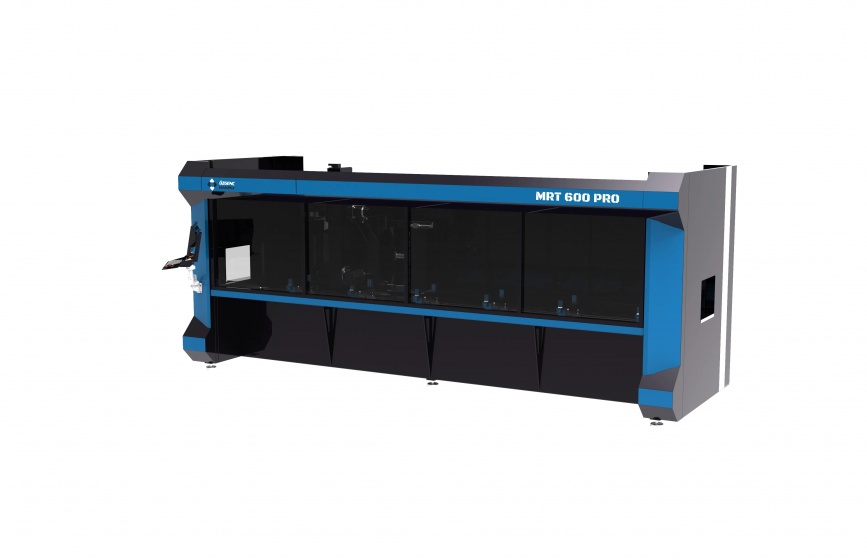

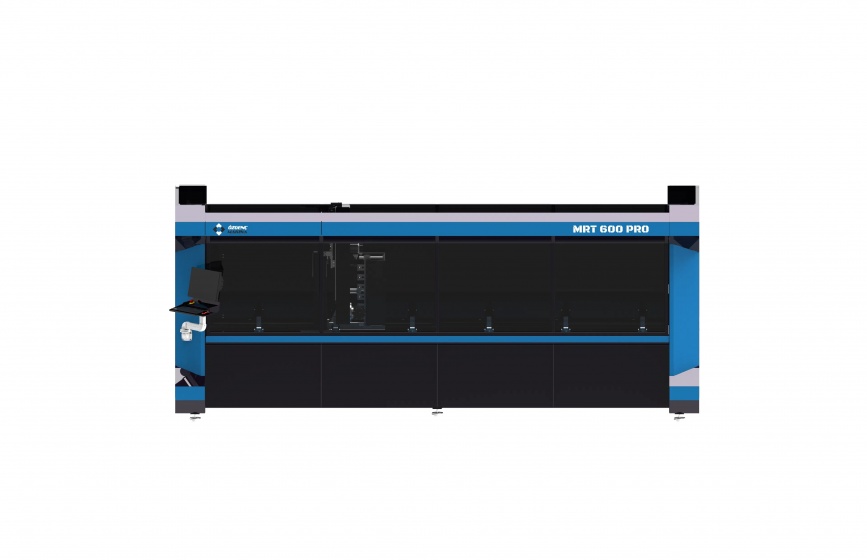

Ozgenc Makina MRT 600 PRO

back

Aluminium Profile Machining Center

Technical specifications

The CNC machining center is designed to be compact and can be moved in the X-Y-Z-A axes.
The spindle operates in an angular axis.
It has the capability for interpolated operation in all axes, allowing for simultaneous operation.
There is an automatically operated pneumatic reference point.
The standard model comes with 6 profile clamps and a magazine with 6 tool holders.
The clamps can be automatically moved.
The spindle is from the HSD brand, with a power of 7.5 kW and a speed of 24,000 rpm.
The tool attachment cone is HSK-63F.
It includes a wireless handwheel for convenience.
The control unit is the FAGOR 8058-M, and it uses the EtherCAT communication system.
The interface is user-friendly.
The machine has the following features and options:
CAD-CAM software compatibility.
Remote connection for problem diagnosis and service.
SMC pneumatic equipment integrated with EtherCAT communication system.
Absolut servo system that allows axes to resume in case of power failure.
X-Y-Z axes with rack and pinion motion system.
A-axis Sumitomo CYCLO with a precision of 1 arcmin.
Automatic lubrication system.
Air tip cooling system.
Option for a barcode scanner.

Machining Unit

Power

Total kW	15 kW
Saw Motors	7 kW

Air Consumption

Air Pressure	7 bar
Air Consumption	300 lt/min

Machine

Profile

Machinable Max. Profile Length	4200 mm
Max. Machinable Profile Width	250 mm
Max. Machinable Profile Height	250 mm
