Ozgenc Makina MRT 300

back

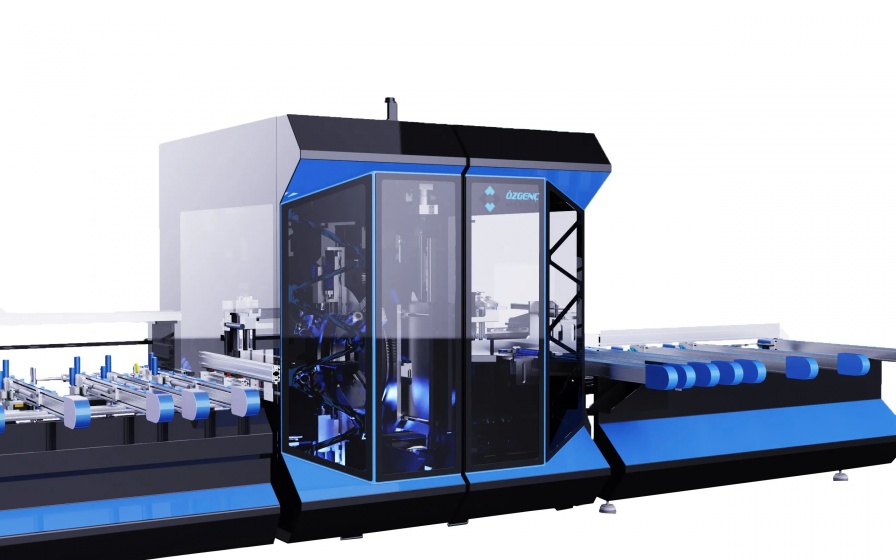

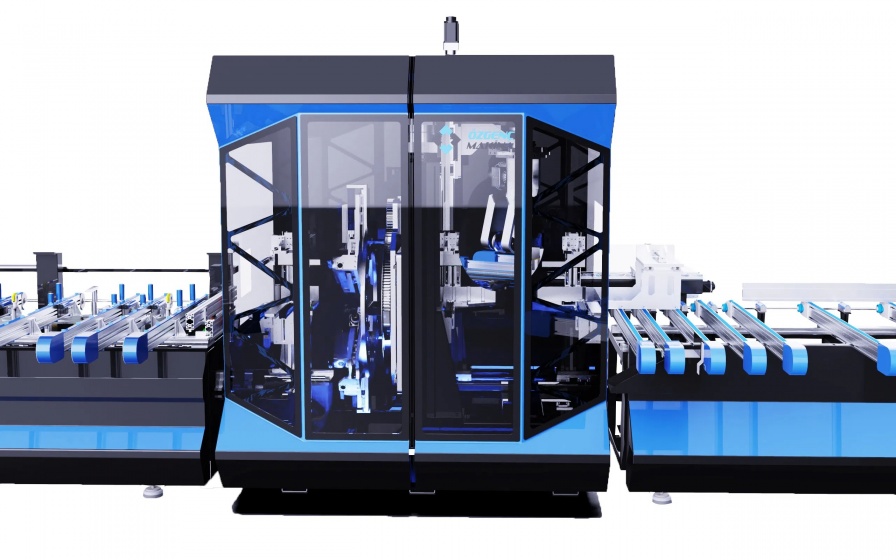

Aluminium Profile Cutting and Machining Center

Technical specifications

All joinery and optimization programs are compatible with it.

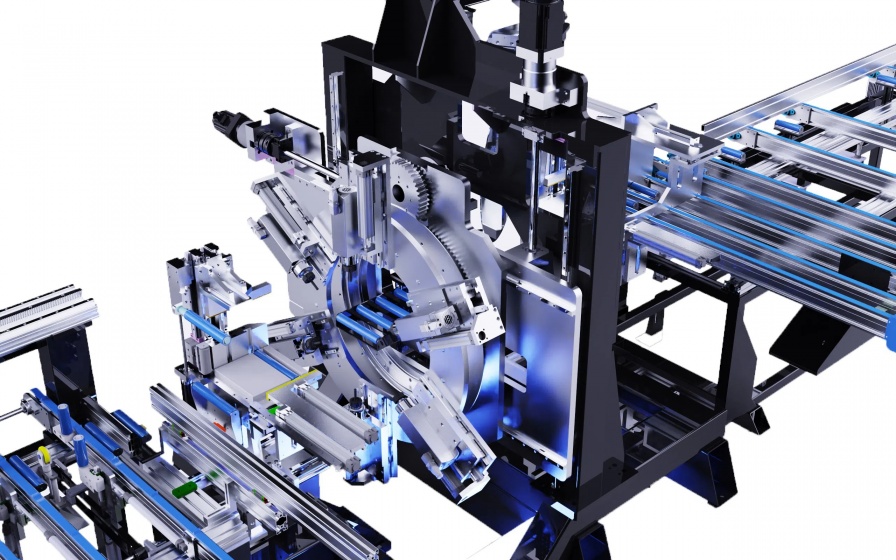

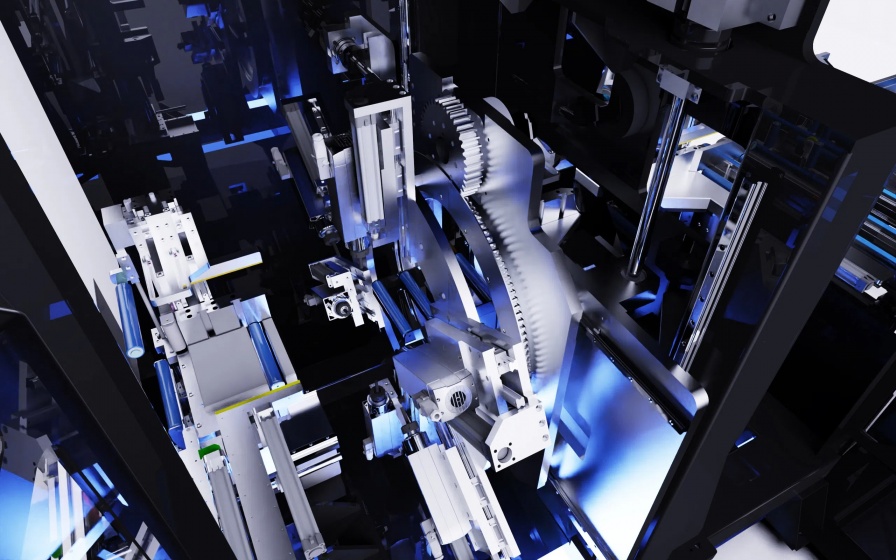

The milling tools on the rotary table allow for 360° processing.
The movable table enables cutting up to a 30° angle.
It has a saw blade with a diameter of 650 mm.
The profile vertical alignment system is included.
Special coating roller system and stainless surfaces prevent profile scratching.
It is equipped with 6 milling units from the HSD brand, with a power of 3 kW and a speed of 18000 rpm.
It can cut short profiles with the movable output unit.
The automatic profile length detection feature saves time by allowing the gripper to catch the profile without delay.
The profile gripper of the machine has three axes and a 360° angular axis motion, allowing it to capture any type of profiles with precision.
All fourteen axes of the machine are controlled by servo motors, ensuring accurate and efficient operation.
The machine is equipped with a Windows operating system-based control system, featuring a 21.5" screen for easy navigation and monitoring.
It has unlimited profile memory capacity, allowing for the storage of a large number of profiles for future use.
Working files generated by windows and doors design software can be easily transferred to the machine over a network, via WIFI, or using a USB connection.
The machine also includes a label printing feature, which can print labels for every workpiece, including useful waste materials.
It is compatible with Industry 4.0 standards, offering features such as processing speed optimization and cutting reports for enhanced productivity and efficiency.
Trouble shooting and service opportunity with remote connection.
Designing labels and barcodes.
Automatic cooling system.
Automatic lubrication system.

Machine

Machine Height	2950 mm
Machine Length	15725 mm
Machine Width	2990 mm
Machine Weight	4200 kg

Milling Unit

Spindle Motor	6 x 3 kW
Spindle Quantity	6

Profile

Max. Machinable Profile Width	250 mm
Max. Machinable Profile Height	200 mm
Machinable Max. Profile Length	6000 mm
Machinable Min. Profile Length	350 mm

Power

Power Supply	380–400 V, 3 ph, 50–60 Hz
Total kW	35 kW

Air Consumption

Air Pressure	6-8 bar
Air Consumption	400 L/min

Cutting

Saw Diameter	650 mm
Saw Motor	1
