Ozgenc Makina MRT 1967

back

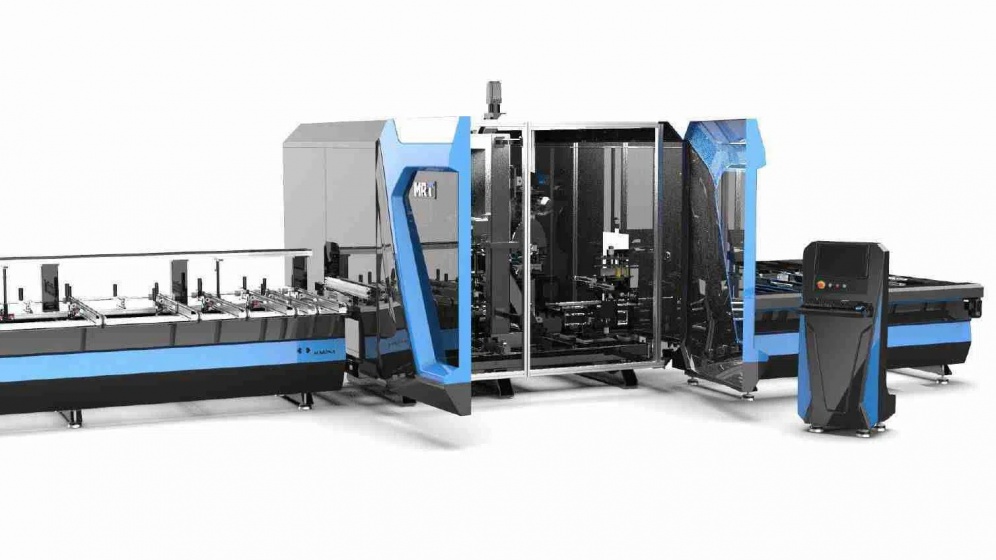

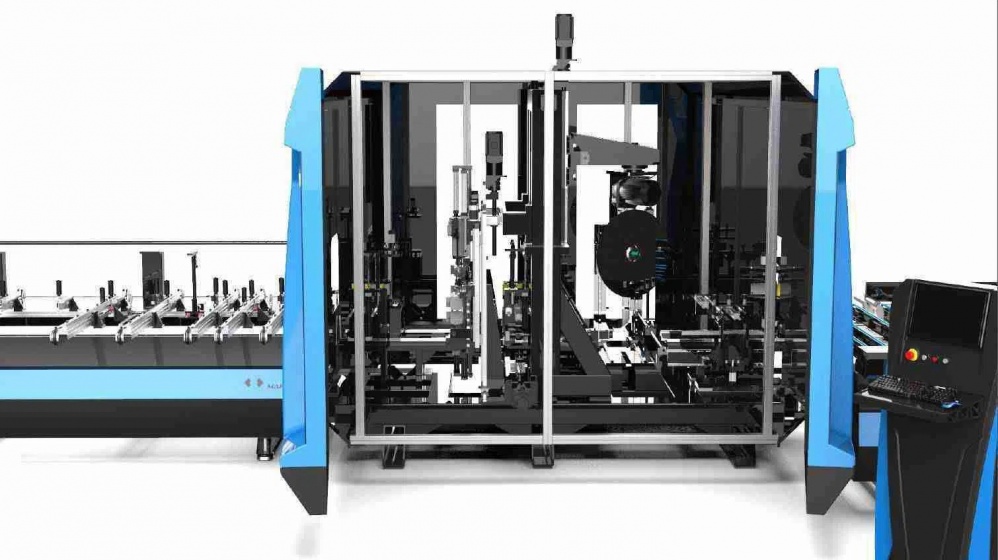

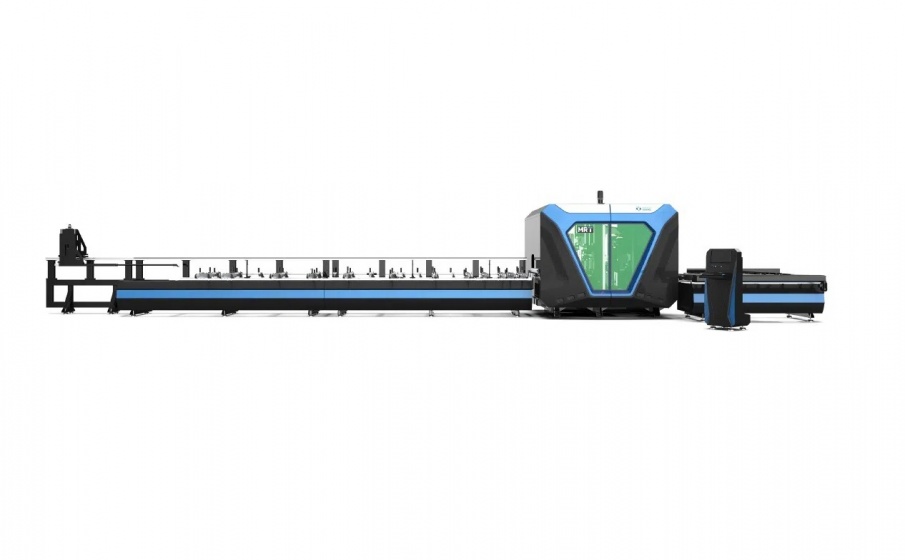

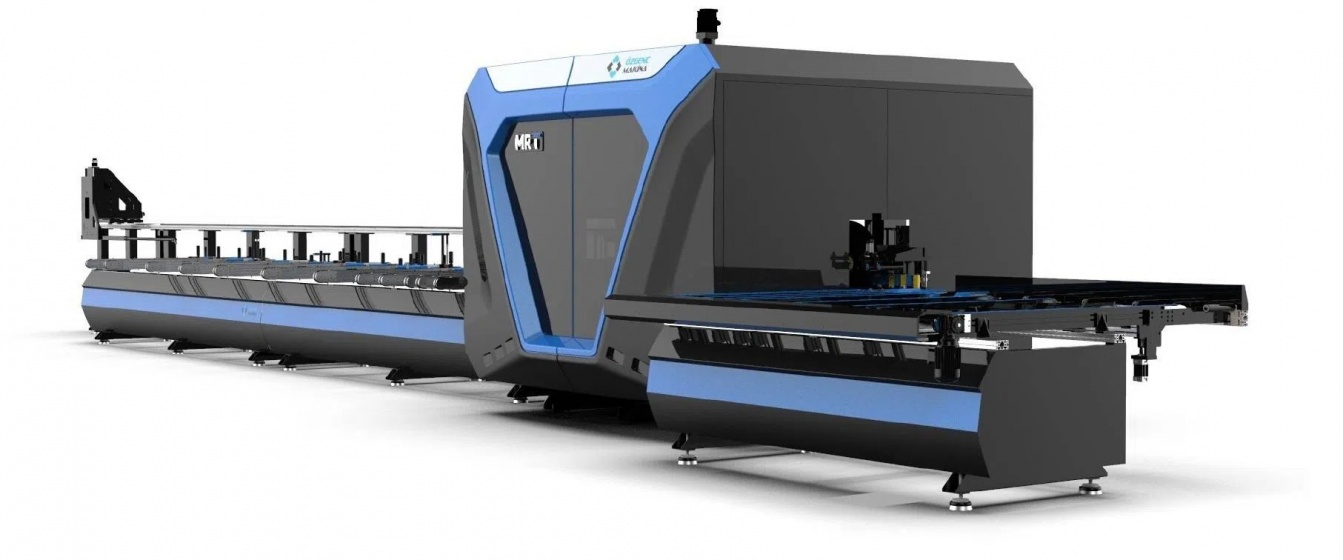

Aluminium Profile Cutting and Machining Center

Technical specifications

Seamless integration with all joinery and optimization programs
Four-surface processing capability with milling unit
Vertical alignment system for profiles
Support system for special profiles
Movable clamping units for heavy profiles and increased precision
12 milling units with 2.2 kW power each
Special clamping units to prevent profile movement
Ability to cut short profiles with movable output unit
Windows OS control system with 21.5” screen
Automatic profile length detection for quicker processing
3-axis, 360° rotating gripper arm for capturing profiles at any angle
180° rotation movement for top and horizontal saws

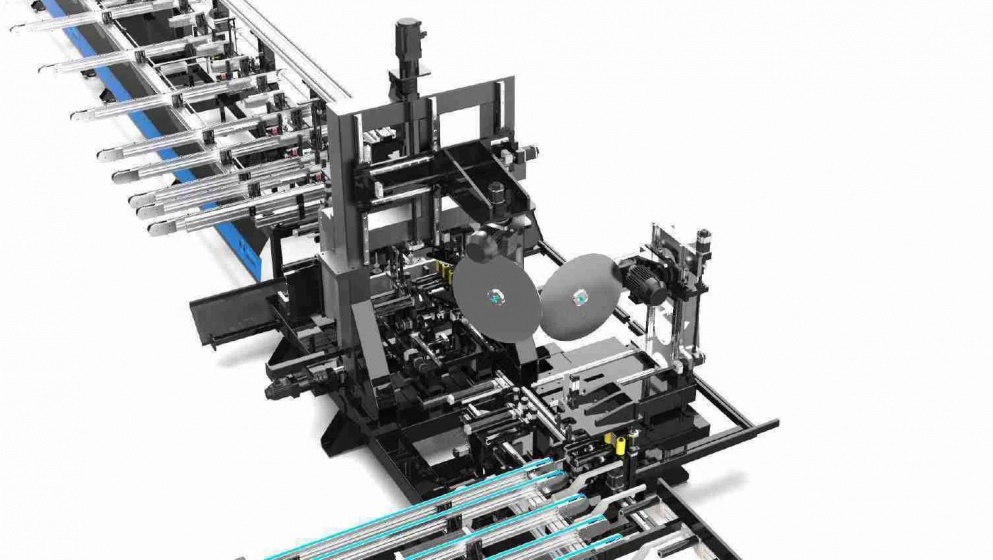

Ø650 mm upper saw and Ø500/550 mm back horizontal saw with belt transmission
Capability to perform facade notching operations on aluminum profiles
Minimized vibration and precise machining with double rail-mounted milling units
Scratch-resistant stainless machine surfaces
Remote troubleshooting and service support
Feeding table with 6 profile capacity
Unlimited profile memory capacity
Servo motor control on all axes
USB, wireless, and wired network connectivity for file transfer from design software
Label printing for each workpiece, including useful waste
Industry 4.0 compatibility for processing speed and cutting reports
Customizable label and barcode designs
Automatic lubrication system
Automatic cooling system.

Power

Total kW

32 kW

Profile

Min. Machinable Profile Width	30 mm
Machinable Max. Profile Length	7000 mm
Machinable Min. Profile Length	600 mm
Max. Machinable Profile Height	230 mm
Min. Machinable Profile Height	30 mm
Max. Machinable Profile Width	200 mm

Cutting

Air Consumption

Air Consumption	180 lt/min
Air Pressure	6-8 bar
