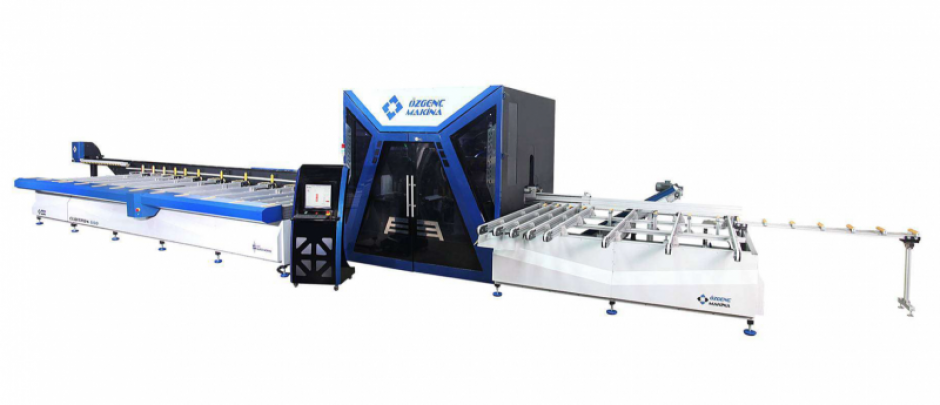

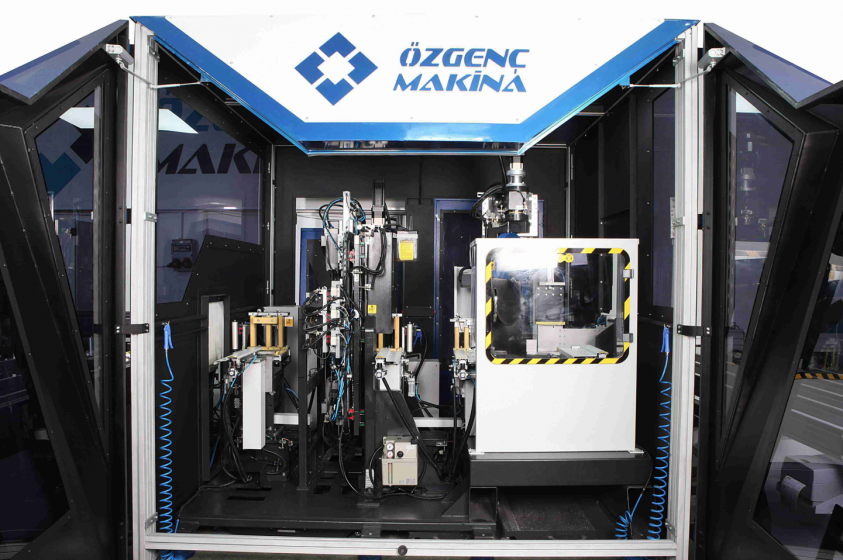

Ozgenc Makina CUBITRON 600 AL

Aluminium Profile Cutting and Machining Center

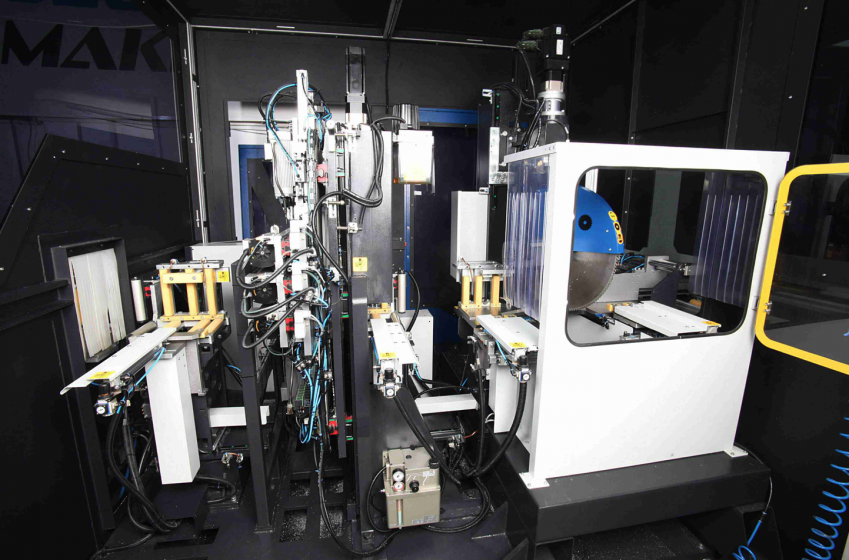

All operations on four sides of Aluminium profiles such as cutting, marking, opening key holes, copy routing for water slot milling, hinge holes, handle holes etc can be done by a 3 axis controlled CNC processing center.

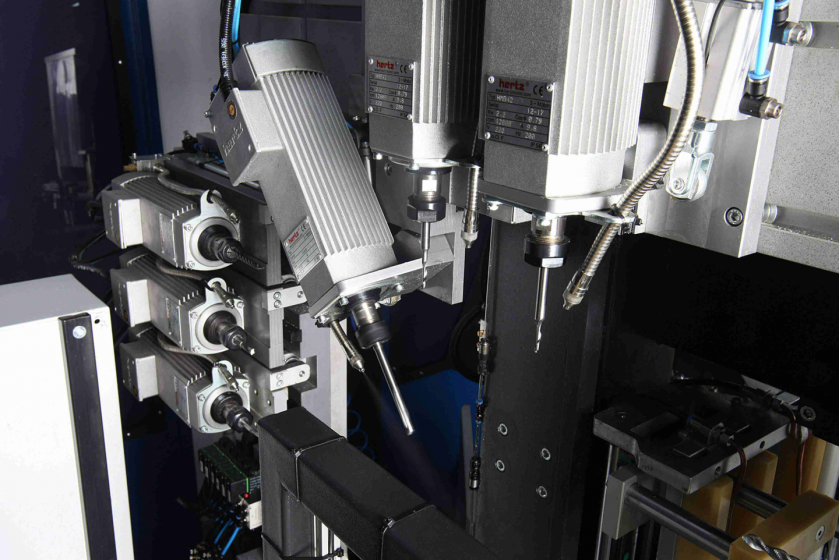

• The machine is equipped with 12 high-speed custom-made and air-cooled spindles that can cut at angles ranging from 22.5° to 157.5° with a precision of 0.1°. The cutting is controlled by a servo axis, ensuring accurate and precise results.

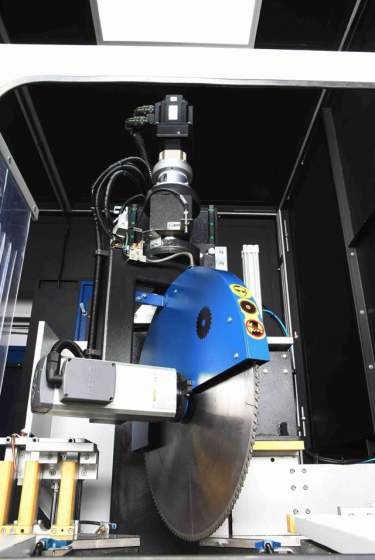

• A 600 mm-diameter saw is included for efficient and effective cutting.
• The machine features 3 axes and a 360° rotatable gripper positioning system, allowing for versatile and flexible operation.
• Automatic profile length recognition ensures seamless and efficient processing.
• The profile feeding unit can accommodate profiles of any size, ranging from 500 mm to 6500 mm.
• An automatic lubrication system is installed for easy maintenance and prolonged machine life.

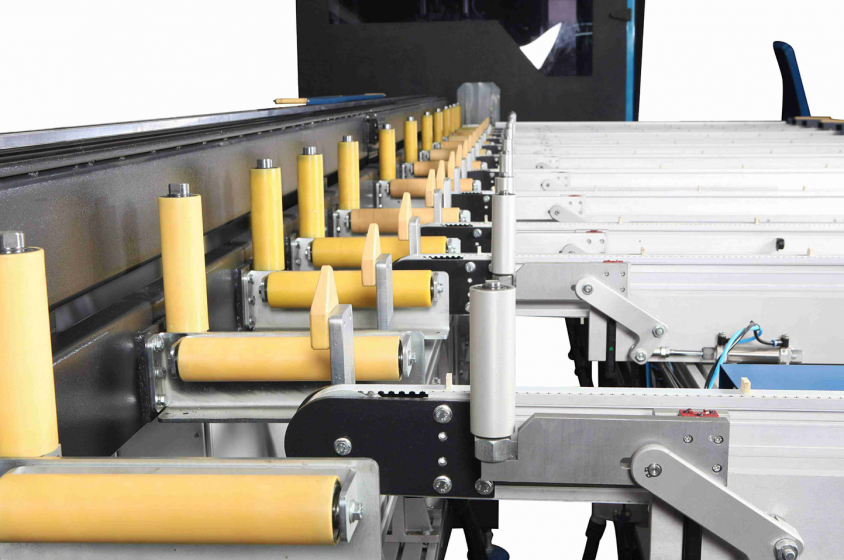

• The machine includes a high-precision profile conveyor system for smooth and precise movement of profiles.

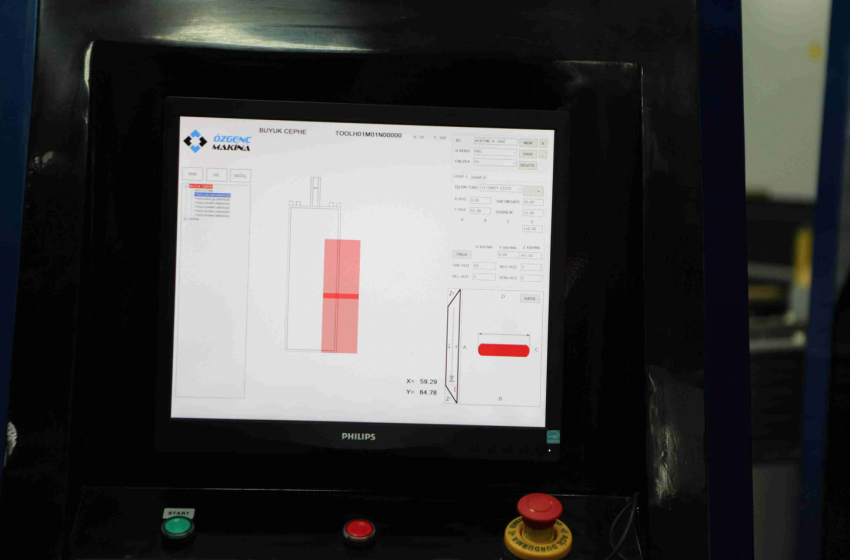

• Remote access capability allows for convenient monitoring and control of the machine.

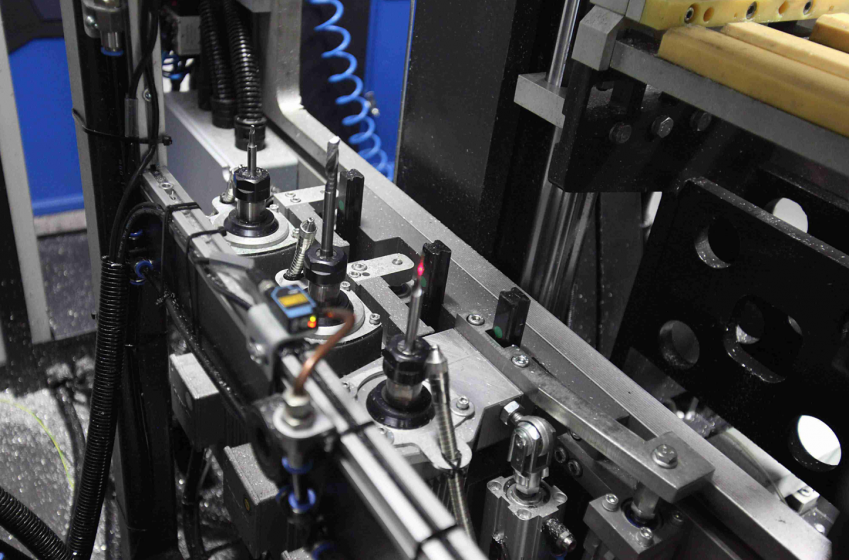

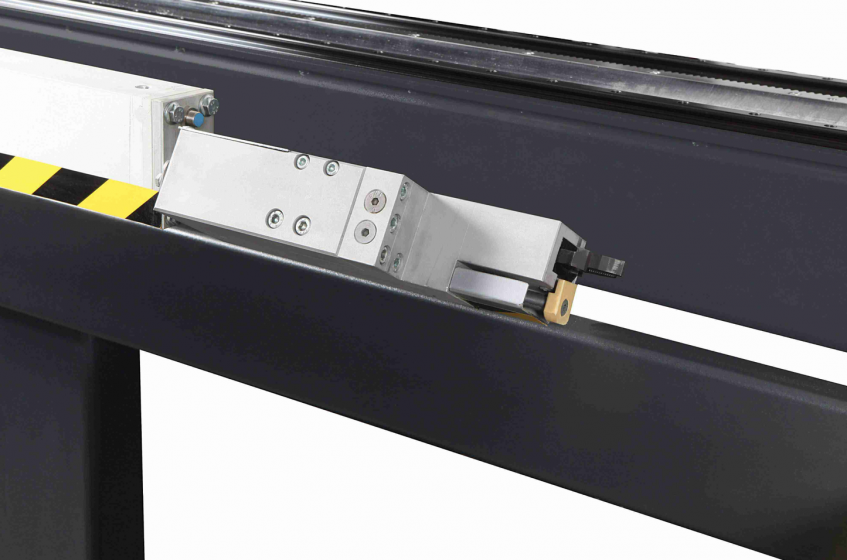

• Moving clamp systems are incorporated for enhanced stability and security during operation.
• A vertical alignment system ensures accurate positioning of profiles.
• Special clamp systems are available for specific requirements or profiles.
• Special milling tools designed for processing aluminum are included for added versatility.
• Each clamp can adjust the pressure system to accommodate different profiles and ensure optimal performance.
