Ozgenc Makina DC 400 AL
back.jpg)

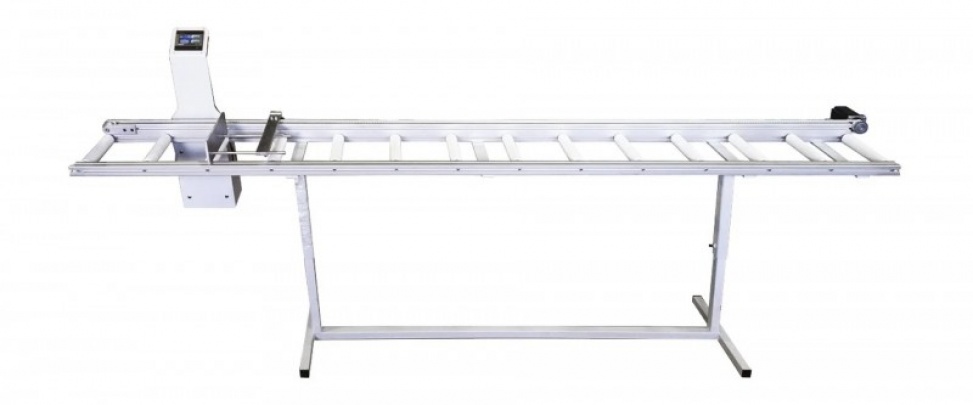

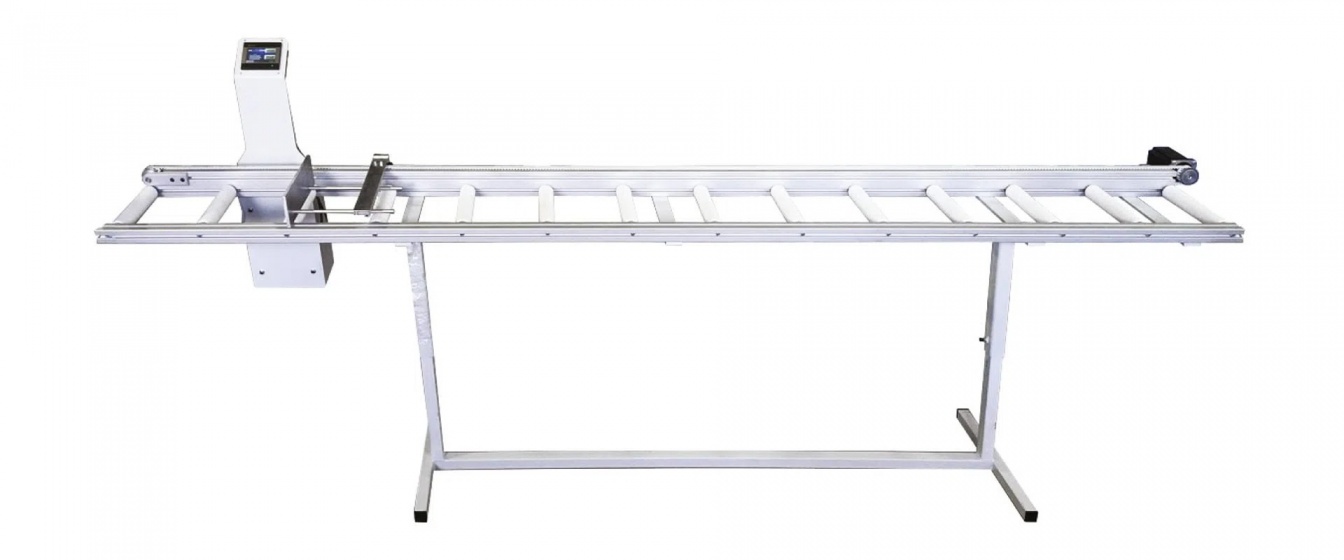

Aluminium Digital Profile Measuring Table
Technical specifications
To facilitate the cutting process, the DC400 digital conveyor is attached to the cutting machines on the right side. By inputting the desired length on the touchscreen, the measurement block will move to the specified position. Once a cutting list is entered, the cutting procedure will automatically proceed to the next step.
To facilitate the cutting process, the DC400 digital conveyor is attached to the cutting machines on the right side. By inputting the desired length on the touchscreen, the measurement block will move to the specified position. Once a cutting list is entered, the cutting procedure will automatically proceed to the next step.
- 0,1 mm measurement accuracy.
- 3 meters long.

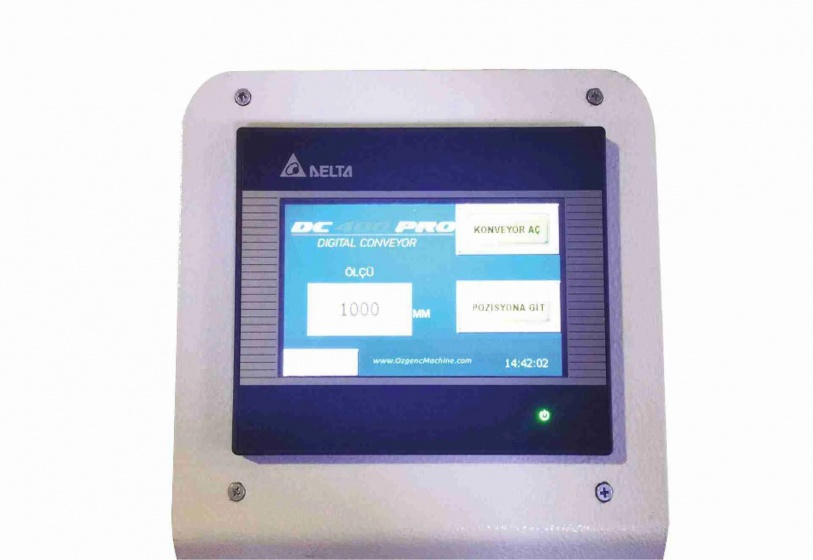

- Touchscreen.

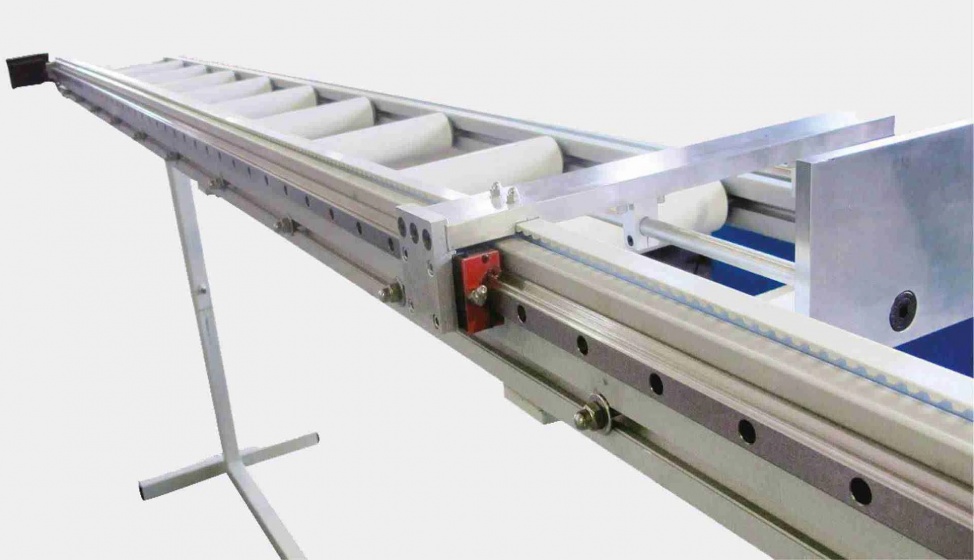

- Measuring support can move back after each cutting for easy remove the cutted profile.
- Can be prepared as right or left sided.
Various sizes are available to cater to different cutting needs:
- 3,650 mm (maximum cutting length of 3,200 mm)
- 4,650 mm (maximum cutting length of 4,200 mm)
- 5,650 mm (maximum cutting length of 5,200 mm)
- 6,650 mm (maximum cutting length of 6,200 mm)
Air Consumption
|
Power Supply
|
2.1 kWh
|
Machine
|
Machine Height
|
1000 mm
|
|
Machine Length
|
4700 mm
|
|
Machine Width
|
4700 mm
|
|
Weight
|
150 kg
|
Profile
|
Min. Profile Working Length
|
5 mm
|
